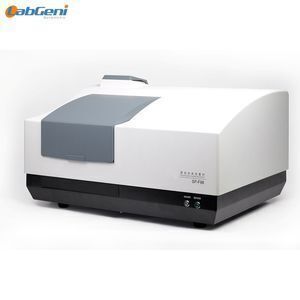

Auto Fluorescence Spectrophotometer, spectrofluorometer price, Labgeni SP-F98

Product details
Wavelength Range:200nm~900nm for Emission;Payment Terms:L/C,T/T,Western Union;
Model Number:SP-F98;Packaging Detail:package suitable for export;
Supply Ability:100 Set/Sets per Month;Port:any port in China;
Weight:GW 25kg, NW 21kg;Size:610mm*460mm*365mm;
Place of Origin:Guangdong China;Brand Name:Labgeni;
warranty:1 year;

Product Description



  • Ultra-high signal noise ratio: unique horizontal beam design, large diameter concave grating monochromator optical system, excellent luminous efficiency and ultra-high detection signal to noise ratio, the water Raman peak signal noise ratio greater than 250:1(PP) or 800:1(RMS).
  • Ultra-high scanning speed: world's highest speed wavelength scanning 60000nm/min, can be easily achieved to scan three-dimensional fluorescence spectra of samples within 1 minute.
  • Ultra-high resolution: Multi-level bandwidth adjustable, excitation and emission spectra can achieve 1nm, 2nm, 5nm, 10nm and 20nm five-speed adjustment. 1nm spectral resolution can easily meet similar rare earth fluorescent materials and other special fluorescent substance spectrum differentiate needs.
  • High wavelength accuracy: precision wavelength drive mechanism and intelligent wavelength calibration, wavelength accuracy of the instrument reach to the highest level in the same type of product.
  • Super-rich set of advanced scanning capabilities: to achieve three-dimensional fluorescence scanning, three-dimensional time scanning, wavelength difference synchronous scanning, and constant energy differential synchronized scanning functions.
  • Less sample volume needs: only need 0.5ml sample (in 10mm sample pool) to meet the test requirements.
  • High quality assurance: xenon light source and a photomultiplier tube detector and other key components of the instrument are made of high quality Japanese Hamamatsu.
  • Large sample chamber: Compared to the previous generation it has a large volume of sample room design, sample replacement and accessory adjustment work more easier, more comfortable experience with the instrument.
  • Built-in optical gate device: built-in programmable optical gate device, designed for easy photo-reactive fluorescent signal instability or a sample survey design, unified sample excitation fluorescence detection rhythm improve the accuracy of analysis.
  • kinds of measurement accessories include: hole sample cell holder, multi-fluorescent sample holder, 200μL microcentrifuge tube measurement accessories, capillary micro sample measurement accessories, semi-automatic sample injection fluorescence attachment hole sample cell adapter, film and powder samples accessories and sample measurement sheathed sample cell holder and other accessories, greatly expanded the scope of application of the instrument.

Specifications:

Model

SP-F98

Detection sensitivity (water Raman peak signal noise ratio)

 S/N ≥250 (P-P) or 800(RMS)

Excitation wavelength Bandwidth

1nm/2nm/5nm/10nm/20nm

Emission wavelength Bandwidth

1nm/2nm/5nm/10nm/20nm

Minimum sample volume

0.5ml(using 10mm sample pool)

Wavelength accuracy

±0.4nm

Wavelength repeatability

≤0.2nm

Light source

150W automatic deodorizing xenon lamp (Hamamatsu, Japan)

Optical system

Double-grating monochromator automatic wavelength scanning with optical excitation double beam ratio monitoring

Fluorescence Receiver

Original photomultiplier (Hamamatsu, Japan)

Excitation wavelength range

 200nm~900nm

Emission wavelength range

 200nm~900nm

Wavelength scanning speed

 10 positions, fastest 60000nm/min

Measurement line

≥0.995

Gain adjustment range

 1~17 position optional

Integral Response time

 7 position options: 8s ~ 20ms

Data output

 Microsoft (R) Excel format, bmp image format

Data transmission

 USB2.0 Interface

Light value range

 -9999~9999

Peak intensity Repeatability

 ≤1.5%

Power source

 220V / 50Hz, 110V / 60Hz

Standard energy consumption

 200W

Dimensions (mm)

 610mm×460mm×365mm

Weight

 21kg
