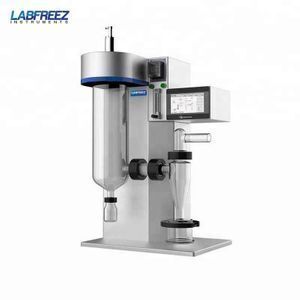

Laboratory Mini Spray Dryer, Bench-top Small Spray Drying Machine Price

Product details
Brand Name:Labfreez;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Food Shop,Pharmaceutical;
Power(W):3200W;Port:any port in China;
Warranty:1 Year;Payment Terms:L/C,T/T,Western Union;
Key Selling Points:Famous brand spare parts;Supply Ability:100 Set/Sets per Month;
Application:Medicine Processing,Chemicals Processing,Food Processing;Certification:CE ISO;
After-sales Service Provided:Online support,Video technical support,Free spare parts;Type:Spray Drying Equipment;
Condition:New;Packaging Detail:in plywood case;
Dimension(L*W*H):910mmx575mmx423mm;Place of Origin:Beijing China (Mainland);
Weight:50KG;Voltage:220V, 50-60HZ;

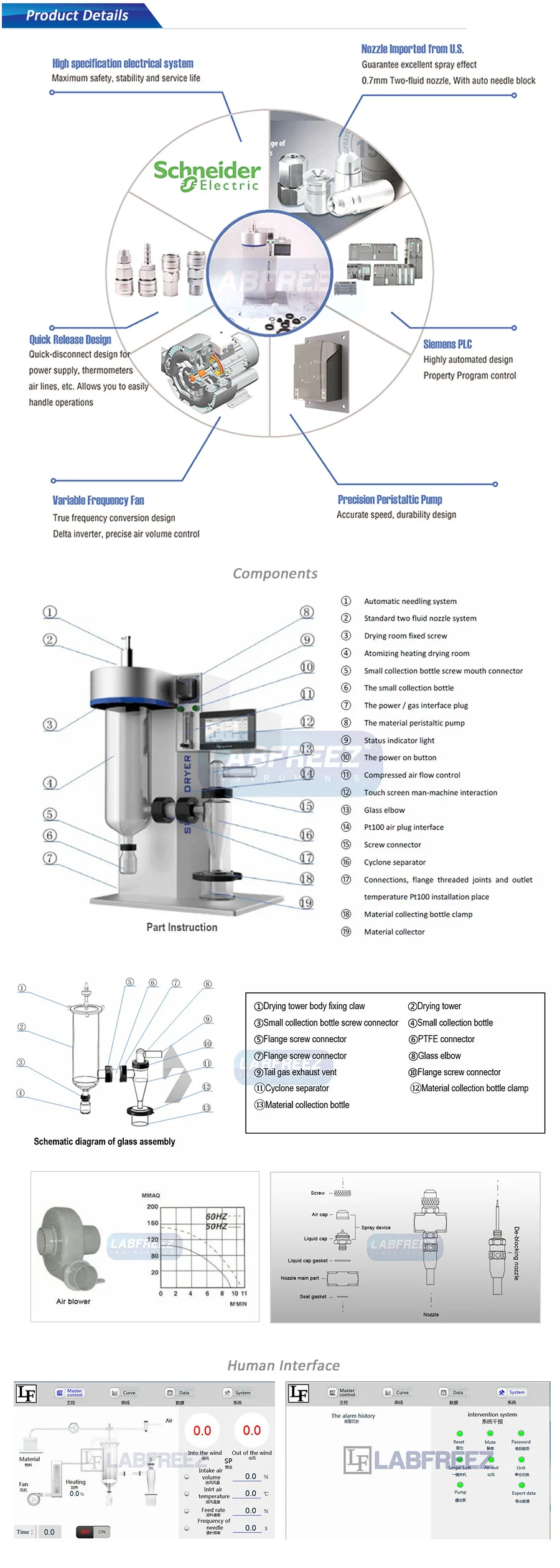

SD-18A Mini lab scale spray dryer main features:

  • U.S. brand nozzle with auto deblock function
  • Schneider electric parts
  • Siemens PLC
  • Taiwan Touch LCD display
  • Inverter fan, Quick-release design
  • LCD touch data can be exported to computer by USB interface
  • Fitted with quality air compressor



Meticulous & stable spray drying

  • spray nozzle imported from U.S.
  • Fan imported from Taiwan
  • Schneider  & Siemens electric components
  • LCD touch display from Taiwan

Delicate design on appearance

  • Whole body spray painting process
  • Quick release design to let experiment in easy way

Siemens PLC

  • Fuzzy PID control, precise & humanity

Advanced Interface

  • Intelligent & humanity LCD interface
  • Visual touch operation, animation demo process flow
  • Inlet temperature, outlet temperature, frequency value, pricker frequency can be display and control
  • Data logging, analysis, alarm and overload protection
  • USB interface, data can be easy export to office xls file in computer.

Real frequency converter fan

  • Frequency converter fan can be great help in particles forming, product yield and processing
  • We use real frequency wind turbine design, Delta brand inverter

Specifications:

Max evaporator capacity

 1800ml/h

Peristaltic pump feed rate

  0 ~ 2000ml/h

Inlet air temperature

 30 ~ 250°C ±1°C

Outlet air temperature

 30 ~ 120°C ±1°C

Dry air flow rate

 70m3/h (maximum 330m3/h), pressure 686Pa

Blower

 0.2KW/220v, frequency converter fan

Electric heater

 3.2KW/220V, 2520 special stainless steel

Temperature sensor

 PT-100, intelligent PID control

Spray system

 nozzles (U.S.), 0.7mm diameter, Two-fluid nozzle (inside mix)

Avg drying time

 1.0 ~ 1.5s

Automatic block discharging device

 0 ~ 60s adjustable

Control system

 Siemens PLC, 7’’ color touch LCD display

Electrical standard

 Schneider

Quick release

 Temperature meter, air piping and power supply

Dimensions(H×W×D)

 910mm×575mm×423mm

Power supply

 220/230V, 50 ~ 60Hz

Rate power

 220V/3.6KW

Weight

 50kg









Customer who bought our SD-18A mini spray dryer to replace their Buchi spray dryer in their laboratory
