Industrial Production Freeze Dryer Machine, Pharmaceutical, Food

Product details
Warranty:1 Year;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Packaging Detail:in plywood case;Local Service Location:None;
Application:Medicine Processing,Chemicals Processing,Food Processing,Pharmaceutical;Power:9~210kw;
Showroom Location:None;Certification:CE ISO;
Payment Terms:L/C,T/T,Western Union;Model Number:FD-P series;
After-sales Service Provided:Engineers available to service machinery overseas;Dimension(L*W*H):3*2*6m;
Supply Ability:50 Set/Sets per Month;Type:Vacuum Drying Equipment;
Port:any port in China;Drying Capacity (kg):500;
Key Selling Points:Automatic;Condition:New;
Brand Name:Labfreez;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Food Shop,Food & Beverage Shops,Pharmaceutical;
Weight:3000kg;Voltage:380V;
Weight (KG):2000kg;Place of Origin:Beijing China;

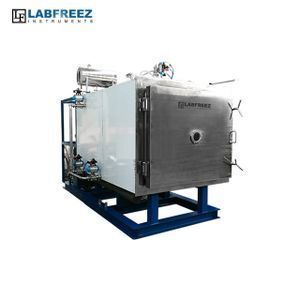

Freeze Dryer Machine for Pharmaceutical

Meets with GMP, ISO, CE; Automatic + SIP + CIP + Stoppering + SS316 + Remote control

Main Functions

  • Shelf pre-freezing function.
  • Can be filled with nitrogen or inert protect machine after working.
  • lyophilized automatic control system: procedural programming, both freeze-dried and defrost control procedures.
  • Shelf: adopting international advanced welding technology without leak (three-year warranty).
  • Lyophilized end point test system: automatic lyophilized end testing parsed end of the drying stage, to ensure that the moisture content of the material to reach the standards.
  • Vacuum regulator systems: sublimation and vacuum drying process analytical adjustment, avoid special material to foaming & blowing, accelerate lyophilization efficiency.
  • Pulse backfill system: slow, medium, fast three backfill mode selection, avoiding the issue for the end of the freeze-dried granular material and flocculent inflatable produce effective substances are blown away loss.
  • Large industrial touch screen, human-computer interaction is good, easy to understand, no instructions are also available for easy operation.
  • Monitoring system: real-time monitoring system temperature, vacuum, acquisition frequency 50ms / times.
  • Lyophilization process recipe storage function: can store 2000 group fixed or user-defined lyophilized formulation process.
  • PC remote monitoring system: remote monitoring equipment operating conditions, as far as monitoring distance 1.5KM.
  • Eutectic point test function (optional).
  • Process data recording system (optional).
  • Calibration function: temperature and vacuum calibration ensures long-term accuracy of the measured values.
  • Lyophilized curve inquiry function (available temperature and vacuum degree curve, convenient process optimization and lyophilized effect verification).
Features


♦ Cabinet:
Cabinet design according to GB150-2011 / PED ASME standards, in line with FDA and GMP standards. Internal cabinet with large rounded design, with mirror polished surface, bottom of the box with tilt design, also i  n line with CIP and SIP drainage requirements. It can withstand: 0.15Mpa to 0.5Pa full range of positive and negative pressure.
♦ Shelf: adopts international advanced welding process. Internal welding, TIG welding and orbital welding technology
♦ Condenser: with polishing technology, surface bright and smooth. Water vapor channel optimized design to ensure small molecule surge resistance, more efficient water capture.
♦ Refrigeration system uses world famous refrigeration compressors, refrigeration system security and stability.
♦ Vacuum system: vacuum pipe with automatic orbital welding, ensure welding firm appearance. Using helium vacuum leak detector testing to ensure vacuum system to achieve high vacuum requirements.
♦ CIP system CIP system valves and pneumatic actua  tors are imported original, to ensure stable operation, safe and reliable. CIP system piping with automatic orbital welding, ensure welding firm appearance. CIP vacuum system piping using helium leak detector testing to ensure vacuum system to achieve high vacuum requirements. water pump imported from Germany to remove residual moisture after cleaning, cleared completely.
♦ SIP system uses a pulsating pre-vacuum steam sterilization, with Fo value display and recording, with complete safety interlock and interlock functions, box comes with a cooling function. Triple overpressure protection, to ensure absolute safety. Case high pressure vessel design, manufacturing process, all components of industrial X-ray machine detected by testing, ensure that the overall firm, resistant to high pressure. Valves are used in place disinfection system temperature up to above 350 °C of the original imports. Pneumatic actuators are imported original, ensure stable operation, safe and reliable. Reign disinfection system with automatic orbital pipe welding, welding to ensure strong and beautiful. SIP system piping using helium vacuum leak detector testing to ensure vacuum system to achieve high vacuum requirements. Remove residual moisture after sterilization imported from Germany, water ring pumps, pumping speed, completely clear. Maximum sterilization temperature up to 150 °C.
♦ Process Control System, meet FDA 21 CFR PART 11 electronic records, electronic signatures cannot be modified requirements. Precisely controlled, repeatable, can be restored.
♦ Plate heat exchanger, using the world-class plate heat exchanger, heat transfer efficiency.
SIP type suitable for the use of the pharmaceutical sector. CIP type suitable for use in the field of biological engineering. Common type suitable for industrial, food and other fields use





Safety:

  1. Independent Overcurrent protection for various facilities
  2. Independent overload protection for various facilities
  3. Conditions allow individual facilities operating
  4. Heating overtemperature protection
  5. Product vacuum freeze-drying process protection
  6. Vacuum pump protection
  7. System logic interlock
  8. Meet the GMP standard
Specifications



Model

Shelf area ( m2)

Shelf qty

Shelf size (mm)

Temp. accuracy(°C)

Condenser water capacity (L)

Vials load
(∅22)

Shelf temp. (°C)

Condenser temp. (°C)

Power (KW)

FD-P1

1.08

4+1

450*600

±1.0

20

2100

-60-80

<-85

9

FD-P2

2.19

4+1

600*900

40

4200

12

FD-P3

3.24

6+1

600*900

60

6300

21

FD-P5

4.86

6+1

900*900

100

9450

24

FD-P7

7.56

7+1

900*1200

150

15750

44

FD-P10

9.72

9+1

900*1200

200

19950

58

FD-P13

12.96

9+1

1200*1200

260

26250

67

FD-P15

16.1

9+1

1200*1490

320

33600

75

FD-P20

19.67

11+1

1200*1490

400

42900

104

FD-P25

25.0

14+1

1200*1490

500

52500

125

FD-P30

31.5

14+1

1490*1490

600

60900

134

FD-P40

42

14+1

1490*1990

800

84000

174

FD-P50

51.0

17+1

1490*1990

1000

105000

210

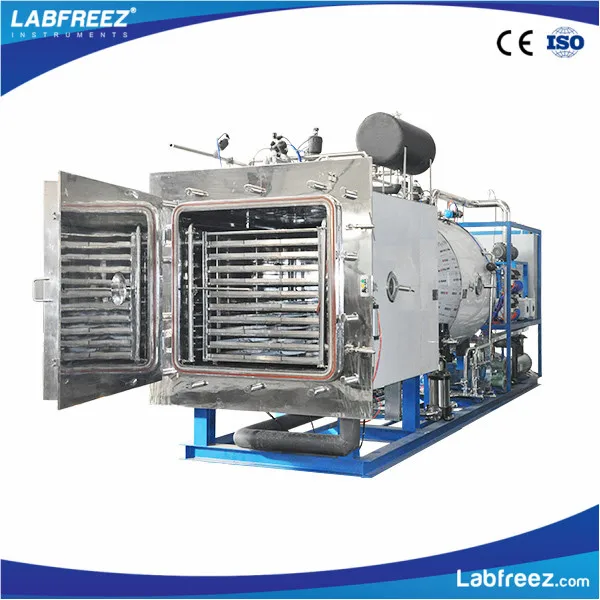

Real pictures of FD-P Series Pharmaceutical freeze dryer machine, SIP + CIP + Stoppering, meets with GMP

















Freeze Dried Sample









Packing & Shipping
  • The package for product and cargo will be suitable for international sea/air/courier delivering. Package will be packed by plywood case(no need of fumigate) with pallet.
  • We will be responsbile for shipping damage unless otherwise specified.
  • We can arrange to delivery by courier like DHL, Fedex, Ups, TNT and EMS, or sea/air delivering to your nearest port.
