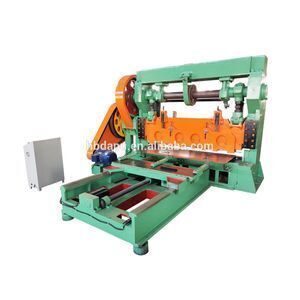

Automatic heavy duty expanded metal mesh machine factory

Supplier: Hebei Dapu Import & Export Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Laura Lee
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden pallet and plastic package in the container;	Production Capacity:	20-40m/h;
Material thickness:	0.5-5mm;	Distance of feed:	0-10mm;
Model Number:	DP25-100;	Weight:	14T;
After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Certification:	CE ISO;
Warranty:	1 Year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,different payment terms for different countries;
Net weight:	14T;	Place of Origin:	Hebei China (Mainland);
After-sales Service Provided:	Engineers available to service machinery overseas;	Stroke per min.:	53 times/min.;
Supply Ability:	30 Set/Sets per Month Automatic heavy duty expanded metal mesh machine factory;	Motor:	18.5 kw;
LWD of mesh opening:	180mm;	Brand Name:	DAPU;
Port:	Xingang port, China;	Model:	DP25-100;
Material max. width:	2000mm;

Automatic heavy duty expanded metal mesh machine factory

Product Description

Expanded metal mesh machine can be separated two kinds which are stretch net and perforated metal. We can also call it fence machine stretch net machine hole and shaped punching machine..

Expanded metal mesh machine can expand all kinds of steel and iron plate. Then stretch it to fence mesh, this machine can be called fence machine.

Technical Parameters

Model	Width (mm)	Thickness (mm)	Speed (times/min)	Feeding distance	Max.LWD	Motor	Weight	Size (mm)
JQ25-6.3	650	0.1-1.2	320	0-5mm	20mm	4kw	1.2T	80014001520
JQ25-16	1000	0.2-1.5	280	0-5mm	25mm	5.5kw	2.5T	100017001800
JQ25-25	1250	0.3-1.5	220	0-5mm	30mm	4kw	3T	110020702080
JQ25-40	1500	0.5-2.5	110	0-10mm	80mm	11kw	6T	183031002030
JQ25-63	2000	0.5-3	75	0-10mm	100mm	11kw	11T	330035002310
JQ25-63	2000	0.5-4	65	0-10mm	150mm	18.5kw	12T	330037002500
JQ25-100	2500	0.5-4	60	0-6mm	150mm	22kw	14T	330042002500
JQ25-100	3200	0.5-4	45	0-15mm	200mm	30kw	21T	355050002650
JQ25-160	2000	0.5-6	55	0-12mm	200mm	30kw	17T	355043002650
	2500	0.5-6	50	0-12mm	200mm	30kw	19T	350043002650
	3200	0.5-6	45	0-15mm	200mm	30kw	26T	355050002650
JQ25-260	2000	0.5-10	45	0-12mm	150mm	55kw	26T	370049002700
JQ25-260	2500	0.5-10	45	0-12mm	150mm	55kw	29T	370049002700

Product Display

Product Details

1. Steel metal cover for rotating wheels to ensure safety operation.

2. Alloy cutter mold can be made of Cr12#1 or YG-8 hardened tool steel, life up to one year.

3. Cast steel base and unit, shock-resistance and working smooth

4. Central lubrication system to decrease machine wearing out and make maintenance easily.

5. Pneumatic clutch brake + step motor. Pneumatic clutch brake to stop the machine, more fast

6. Electric and pneumatic system PLC +Text screen control, easy to operate, one worker is ok

Certifications

Company Information

FAQ

Q:Where is your factory located?

A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
