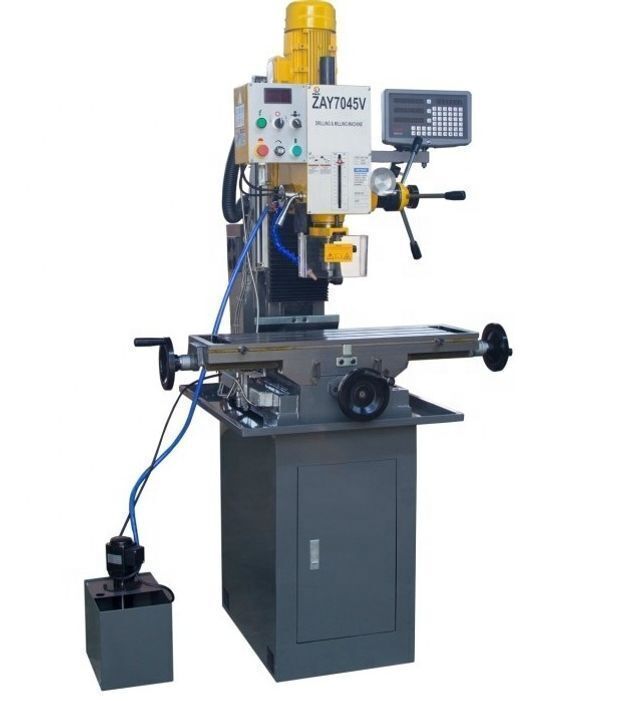

ZAY7045V Variable Speed Milling Machine for Metal Working

Click here to contact

Product details

Spindle Taper:	MT3/MT4/R8;	Machining Capacity:	Medium Duty;
Core Components:	Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Other,Gearbox;	Video outgoing-inspection:	Provided;
Use:	metal cutting;	Showroom Location:	United Kingdom,United States,France,Germany;
Spindle taper:	MT3 or R8;	Port:	Shanghai port;
Table Travel (mm):	800x240mm;	Marketing Type:	New Product 2020;
Table size:	800x240mm;	Local Service Location:	United Kingdom,United States,France,Germany;
Condition:	New;	Table Travel (X) (mm):	500 mm;
Warranty of core components:	1 Year;	Spindle travel:	80mm;
Table Travel (Z) (mm):	400 mm;	Packaging Detail:	plywood wooden box;
Dimension(LWH):	680X750X1000mm;	Certification:	CE, ISO9001;
Table Travel (Y) (mm):	175 mm;	Range of Spindle Speed(r.p.m):	100 - 2800 r.p.m;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	50 Set/Sets per Month;
Model Number:	ZAY7045V;	Brand Name:	WMT;
Machinery Test Report:	Provided;	Logo printing:	OEM service;
Voltage:	220V;	Warranty:	13 months;
Weight (KG):	350;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Retail;
Year:	NEW;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance;
Drilling capacity:	45mm;	Type:	VERTICAL;
Number of Axes:	3;	After Warranty Service:	Video technical support,Online support;
CNC or Not:	Normal;	Key Selling Points:	Competitive Price;
Package Preview:	;	Place of Origin:	China;

ZAY7045V Drilling and Milling Feature

1. Variable speed;

2. Milling , drilling , tapping , boring and reaming.

3. Head swivels ±90°vertically; 4. Micro feed precision;

5. Adjustable gibs on table precision;

6. Strong rigidity, powerful cutting and precise positioning.

Model	ZAY7032V	ZAY7040V	ZAY7045V
Max drilling capacity	32mm	40mm	45mm
Max Face mill capacity	Φ63mm	Φ80mm	Φ80mm
Max End mill capacity	Φ20mm	Φ32mm	Φ32mm
Max distance from spindle nose to table	400mm			450mm
Min distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	MT3 , MT4 or R8
Range of spindle speed	100-530rpm 530-2600rpm
Swivel angle of headstock (perpendicular)	±90°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	1.1KW/1.1KW/1.5KW
Net/Gross weight	300kgs/ 350kgs
Packing size	770×880×1160mm
Loading amount/20" container	36pcs
