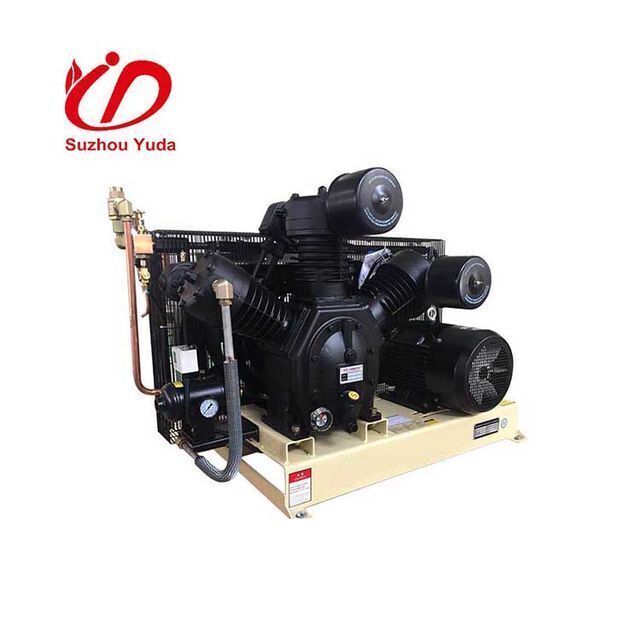

Suzhou Yuda 3m3/min,30 bar air compressor machine price

Supplier: Jiangsu Faygo Union Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Hussain Figo
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Lubrication Style:	OIL-LESS;	Mute:	Yes;
Warranty of core components:	1 Year;	Bearing:	world famous brand;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Brand Name:	Hengda;	Port:	SHANGHAI;
Showroom Location:	None;	Weight:	1150kg;
Faygo:	FaygoPlast is famous China Plant;	Place of Origin:	Jiangsu China;
Applicable Industries:	Manufacturing Plant;	Local Service Location:	None;
Oil:	SHELL;	Cylinder:	3;
Certification:	ISO/CE/GC/IAF/CNAS;	Air valve:	Hoerbiger;
Packaging Detail:	Wooden case;	Electric parts:	Schneider;
Voltage:	380v(according to customer);	After-sales Service Provided:	Online support;
Working Pressure:	7 bar,13 bar,12 bar,10 bar;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Dimension(LWH):	188011801440(mm);	Cooling type:	Air cooling;
Warranty:	1 Year;	Drive type:	Belt drive;
Condition:	New;	Gas Type:	Air;
Type:	PISTON;	Supply Ability:	1000 Set/Sets per Month;
Configuration:	PORTABLE;	Model Number:	2-WH-3.0/30;
Marketing Type:	Ordinary Product;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Power Source:	AC POWER;	Core Components:	PLC,Pressure vessel,Engine,Motor,Pump,Bearing,Gearbox;
Colour:	RED//Black;	Pressure:	30bar;

High pressure iair compressor, air compressor price

1. Main data

Model	Air capacity (M3/min)	Working pressure (Bar)	Power(Kw)	Speed(r.p.m)	Weight(Kg)
VH-0.7/30	0.7	30BAR	7.5	680	310
WH-1.0/30	1.0		11	600	430
WH-1.2/30	1.2		15	760	450
WH-1.5/30	1.5		18.5	790	520
WH-2.0/30	2.0		22	670	610
WH-2.35/30	2.35		25	760	620
2-WH-3.0/30	3.0		2*18.5	790	1150
3-WH-3.6/30	3.6		3*15	700	1580
VH-0.17/35	0.17	35BAR	2.2	660	110
VH-0.65/35	0.65		9.0	605	420
WH-1.1/35	1.1		15	900	475
WH-2.0/35	2.0		22	670	615
WH-2.2/35	2.2		25	735	600
VH-0.3/40	0.3	40BAR	5.5	500	290
WH-1.0/40	1.0		11	790	470
49SH-2.6/40	2.6		25	625	900
49SH-3.0/40	3.0		30	695	920
2-49SH-6.0/40	6.0		2*30	695	2100
4-WH-4.0/40	4.0		4*11	790	2400
6-WH-6.0/40	6.0		6*11	790	3600

2. Inspection method:

CAGI

3. Inspection standard:

-AISI

-AMS

-ANSI

-ASME

-ASTM

-AGMA

-NEMA

-VDI

-CAGI-NPEUROP

-MS

4. Technical characteristics:

4.1 Automatic pressure unloading system, ensure machine starting without loading.

4.2 With exhaust check valve on outlet.

4.3 Removable type inlet silencing filter, 10 micron precision.

4.4 Normal inertia flywheel, 2 root V belt drive.

4.5 Splashing lubrication to all moving Parts.

4.6 Light alloy pistons, with PTFE.

4.7 Cast iron cylinder head, independent valve seat.

4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.

4.9 World famous brand rolling bearing, ensure the stable operation unit.

4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.

4.11 With Safety Valve Between after-cooling.

The quality of our products can keep up with international standard as introduction of foreign technology.

High efficiency,high performance engergy saving,reliability and long lift are the principle characteristics o HENGDA high pressure air compressor.The Free air delivery from 0.15m3/min to 6.0m3/min.HENGDA makes a very wide model of rang of compressor to meet a wide rand of industrial application and requirement , especially for PET BLOWING Industry. Every machine is equipped with starting,unloading solenoid valve,auto condensate drain valve and advanced capacity control to make machine to operate safe and stable.
