Machinery Test Report: | Provided; | Gas Type: | Air; |
Cooling mode: | Air cooling; | Weight: | 1060kg; |
Video outgoing-inspection: | Provided; | Warranty of core components: | 1 Year; |
Place of Origin: | Jiangsu China; | Payment Terms: | L/C,T/T; |
Marketing Type: | Ordinary Product; | Faygo: | FaygoPlast is famous China Plant; |

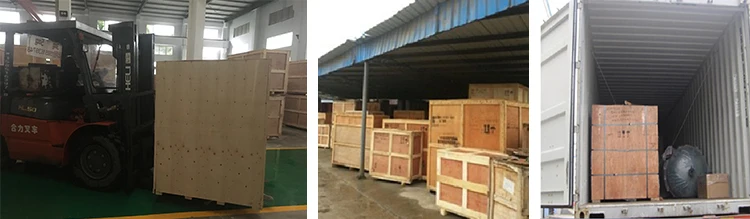

Packaging Detail: | Wooden carton; | Dimension(L*W*H): | 1350*950*1600(mm); |
Mute: | Yes; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Working Pressure: | 7 bar,8 bar,20 bar,13 bar,12 bar,10 bar,35 bar; |
Brand Name: | ERC; | Lubrication Style: | OIL-LESS; |
Configuration: | Stationary; | Power Source: | AC POWER; |
Local Service Location: | None; | Showroom Location: | None; |
Core Components: | PLC,Pressure vessel,Engine,Gear,Motor,Pump,Bearing,Gearbox; | Port: | Shanghai; |
Certification: | ISO/CE/GC/IAF/CNAS; | After-sales Service Provided: | Online support; |
Warranty: | 1 Year; | Type: | Screw; |
Drive mode: | Direct drive/Belt drive; | Bearing: | world famous brand; |
Voltage: | 380v(according to customer); | Pump: | Hanbell or AERZEN; |
Colour: | Red/White; | Condition: | New; |
Inlet valve: | Hoerbiger; | Supply Ability: | 1000 Set/Sets per Month; |
1. Imported top-grade main machine, as the third generation product of state-of –the art brand the world, with asymmetrical 5:6 tooth rotor, is provided with outstanding performance and high efficiency far beyond other similar-type brand.
2. Full-intellectual control system and LCD screen, with self-diagnosis and protection devices, remote control and multi-host interlocking control, realizing unattended and high-tech operation.
3. Y series three-phase asynchronous motor special for compressor, imported World famous brand bearing, F-level insulation, IP54 especially suitable for long-term use, safe and reliable.
4 .Imported oil filter, oil gas separation filter element, ternary separation, ensure oil content less than 0.001ppm, the trunk adopts metal pipe, safe for long –term operation without leakage or deformation, the V type drive belt is imported from Germany, and has a service life more than10000hous.
5.Air volume auto intelligent control, auto shutdown after over long idle run, ensure over 25% of energy saving.
9.6Valve-free oil system design, achieving a safer and more reliable operation of the whole machine, main machine adopts imported special compressor oil, reducing leakage inside and outside the compressor, improving efficiency of main machine and prolonging service life.
Model
|
YDERC-
175SW
|
YDERC-
200SW
|
YDERC-
330SW
|
YDERC-
420SW
|
YDERC-
470SW
|
YDERC-
550SW
|
YDERC-
600SW
|
Type Of Cooling
|
Water
|
Water
|
Water
|
Water
|
Water
|
Air
|
Air
|
Volume Flow/Pressure
|
24.0/7
|
27.7/7
|
43.0/7
|
54.0/7
|
64.0/7
|
70.0/7
|
76.0/7
|
m3/bar
|
23.0/8
|
26.5/8
|
40.0/8
|
47.0/8
|
55.0/8
|
62.0/8
|
68.0/8
|
|
20.0/10
|
22.5/10
|
37.0/10
|
40.0/10
|
|
|
|
Compressor Power (KW)
|
132
|
160
|
250
|
315
|
355
|
400
|
450
|
Speed (r/min)
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
3000
|
Power for Steam Turbine Compressor (KW)
|
160
|
250
|
320
|
400
|
450
|
500
|
600
|
V/Hz
|
AC 380/50
|
||||||
Noise db(A)
|
72±5 Measured according to national standards (GB/T4980-2003)
|
||||||
Exhaust Oil Content
|
<3ppm
|
||||||
Exit Air Temperature
m3/min
|
Environment Temperature+15°C
|
||||||
Cooling Water Volume
L/min
|
200
|
118
|
236
|
460
|
540
|
600
|
660
|
Port Size
|
Dn65
|
Dn65
|
Dn100
|
Dn125
|
Dn150
|
Dn150
|
Dn150
|

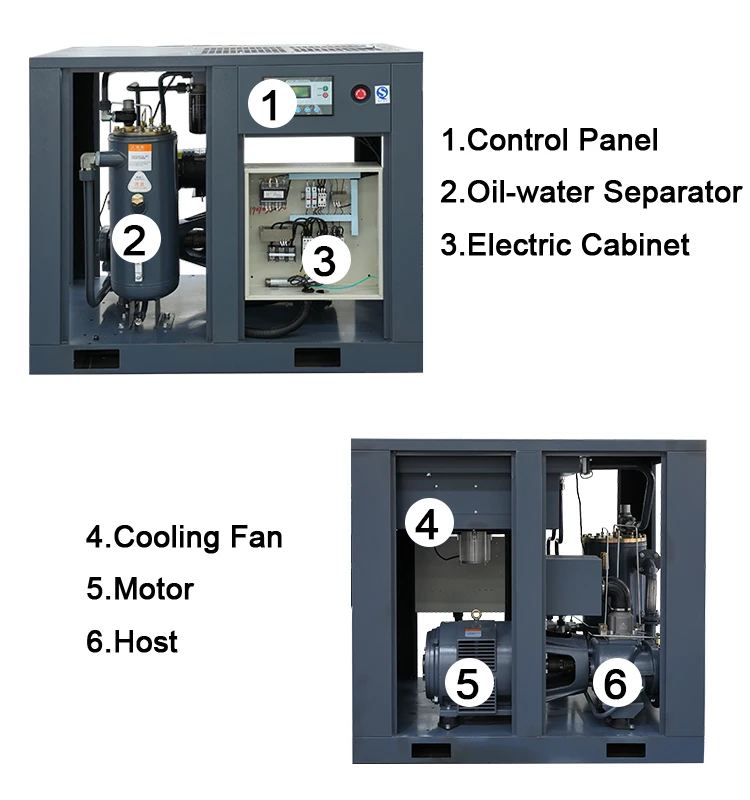

Main configuration
1 Motor- Germany
2 Belt- Germany
3 Oil filter- Germany
4 Solenoid valve- Japan
5 Combination valve- Austria
6 AC contactor- Germany
7 Gas cooler- Wuxi, China
8 Oil cooler- Wuxi, China
.9 Pressure controller- Japan
1.1 year warranty. During warranty, we provide free of charge for repairing cost.
2. Lifetime maintenance. After-sales department can provide life long maintenance service.
