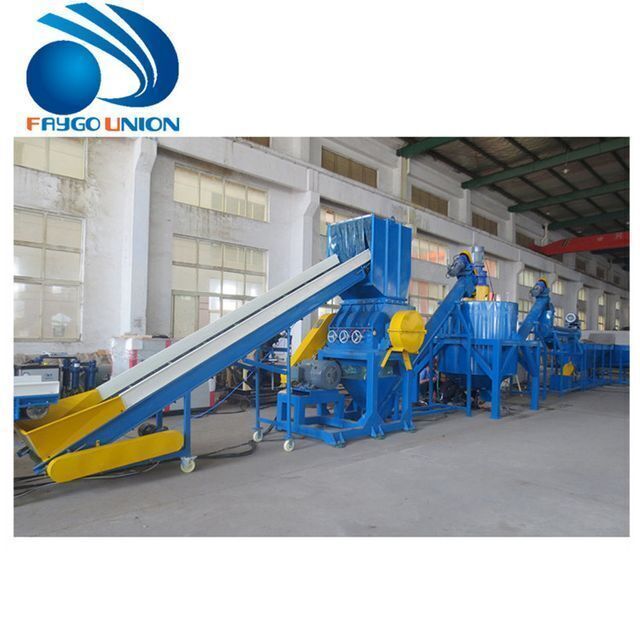

Faygo Union Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& washing&drying Line

Product details
Condition:New;material:stainless steel for plastic recycling machine;
Voltage:220-415V for plastic recycling machine;Weight:10 ton for plastic recycling machine;
Local Service Location:None;Key Selling Points:Automatic;
Plastic Type:PP/PE;Applicable Industries:Manufacturing Plant;
After-sales Service Provided:Engineers available to service machinery overseas;processed material:PE PP PET for plastic recycling machine;
Place of Origin:Jiangsu China;Port:Shanghai for plastic recycling machine;
Application:plastic recycling machine,plastic recycling machine;Power (kW):30;
Packaging Detail:film and wood base for plastic recycling machine;Marketing Type:Ordinary Product;
Automatic Grade:Automatic for plastic recycling machine,Automatic;Showroom Location:None;
Dimension(L*W*H):28m x 2.6m x 2.8m for plastic recycling machine;Brand Name:Faygo for plastic recycling machine,faygoplast for plastic recycling machine;
Production Capacity (kg/h):400 - 800;Machine Type:PP PE Bottle Washing Line;
Equipment List:Trommer,Pre-washer,Bale Opener,Dewatering Machine,Floating Washing Tank,Hot Air Dryer,Frication Washer,Label Separator,Label Remover,Hot Washing Tank;Video outgoing-inspection:Provided;
Supply Ability:20 Set/Sets per Month;Warranty of core components:1 Year;
other name:crushing and washing line for plastic recycling machine;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Weight (T):50;Max.Production Capacity (kg/h):800;
Warranty:1 year for plastic recycling machine;Machinery Test Report:Provided;
quality control:test before delivery for plastic recycling machine;Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Certification:CE&ISO for plastic recycling machine;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;

Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& wash

Product Description

Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& washing&drying Line

1 Feature

1.Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.



2.Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.



3.The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.



4. recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.



5. recycling machine output we can supply is from 300kg/h to 2000kg/h.



6.We can also produce the plastic pipe extrusion line,plastic profile extrusion line,wood plast composite extruion line,plastic recycling productio line.



Welcome to visit us at any time and please feel free to contact us for more details.





  Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& washing&drying Line

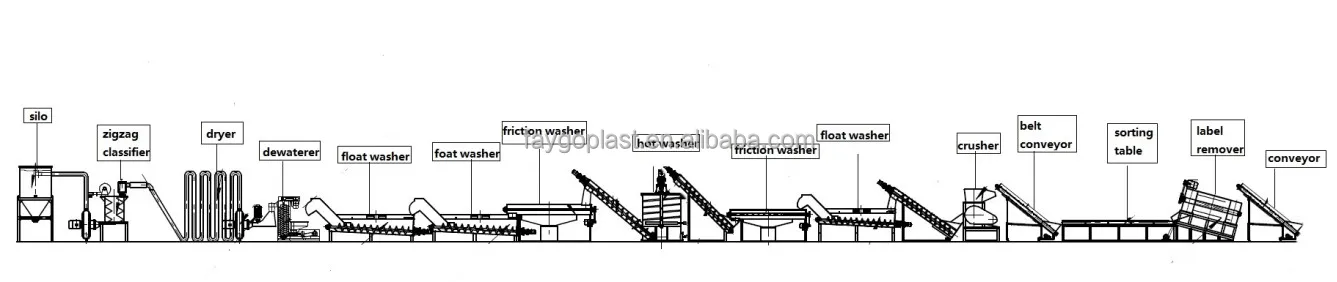

2 Work Processing

Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing

Belt conveyor:

Crusher

Metal detector

Float washer


Blower dryness system:

Plastic pieces

3 .Technical Parameter

Product capacity

300kg/h

500kg/h

1000kg/h

1500kg/h

Workshop(L*W*H)

40m*7.5m*6m

42m*10m*6m

70m*12m*6m

75m*15m*6m

Needed worker

3-4 persons

5-6persons

7-8persons

10-12persons

Water supply

(recycle use)

2-3ton/h

3-5ton/h

7-10ton/h

10-15ton/h

Final product quality

Moisture: max 1%

Bulk density: 0.3G/CM3

Particle size: 10-18mm

Metal content: max.20ppm

Floatable contamination: less than 200ppm

Total impurity: 100-320ppm











   Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& washing&drying Line

Packaging & Shipping







Our Services

  Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& washing&drying Line

1> Find our products through http://www.faygoplast.com  Alibaba,GlobalMarket,Made in China,Globalsources,Traderkey.

2>One year warranty for the whole system.

3> We can send our engineers/technicians for installation of entire production line . Should make sure the safety of our engineers.

4>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.

5>Every 3 year , we can help to overhaul the machine freely(labor).

6>Free production technology and process configuration.

7> We can help you to design the product line , workshop and provide turn-key project.



  Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& washing&drying Line

Company Information



Our clients

Our certificaton:

Our Partners





FAQ

Waste Bottles Pet Plastic Recycling Machine/waste Plastic Crushing& washing&drying Line


FAQ:

Q: Your company is a transactional company or an industrial manufacture factory?

A: We are an industrial manufacture factory which locates in Zhangjiagang city.

Q:All of your products are made by your self or compacted via purchasing the others?

A: We have independent technical team who focus on making machines, all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.

If you want to get more informations about recycling washing machine  , pls contact us,thanks!

Our company is near Shanghai ,about150km.

Warmly welcome you to visit our factory anytime!
