Local Service Location: | None; | Drive type: | Belt drive; |
Core Components: | PLC,Pressure vessel,Engine,Motor,Pump,Bearing,Gearbox; | Supply Ability: | 1000 Set/Sets per Month; |
Power Source: | AC POWER; | Model Number: | 2-WH-3.0/30; |
Place of Origin: | Jiangsu China; | Condition: | New; |
Video outgoing-inspection: | Provided; | Mute: | Yes; |
Lubrication Style: | OIL-LESS; | Dimension(L*W*H): | 1880*1180*1440(mm); |
Brand Name: | Hengda; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Warranty of core components: | 1 Year; | Colour: | RED//Black; |
Showroom Location: | None; | Voltage: | 380v(according to customer); |
Faygo: | FaygoPlast is famous China Plant; | Marketing Type: | Ordinary Product; |
Oil: | SHELL; | Gas Type: | Air; |
After-sales Service Provided: | Online support; | Configuration: | PORTABLE; |
Certification: | ISO/CE/GC/IAF/CNAS; | Bearing: | world famous brand; |
Port: | SHANGHAI; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Electric parts: | Schneider; | Type: | PISTON; |
Cylinder: | 3; | Weight: | 1150kg; |
Machinery Test Report: | Provided; | Packaging Detail: | Wooden case; |
Pressure: | 30bar; | Warranty: | 1 Year; |
Air valve: | Hoerbiger; | Cooling type: | Air cooling; |
Working Pressure: | 7 bar,13 bar,12 bar,10 bar; | Applicable Industries: | Manufacturing Plant; |

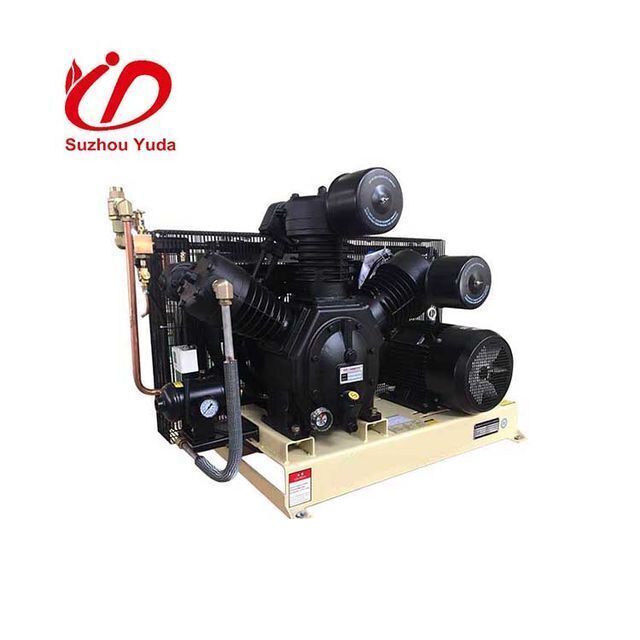

High pressure iair compressor, air compressor price
1. Main data
Model |
Air capacity (M3/min) |
Working pressure (Bar) |
Power(Kw) |
Speed(r.p.m) |
Weight(Kg) |
VH-0.7/30 |
0.7 |
30BAR |
7.5 |
680 |
310 |
WH-1.0/30 |
1.0 |
11 |
600 |
430 |
|
WH-1.2/30 |
1.2 |
15 |
760 |
450 |
|
WH-1.5/30 |
1.5 |
18.5 |
790 |
520 |
|
WH-2.0/30 |
2.0 |
22 |
670 |
610 |
|
WH-2.35/30 |
2.35 |
25 |
760 |
620 |
|
2-WH-3.0/30 |
3.0 |
2*18.5 |
790 |
1150 |
|
3-WH-3.6/30 |
3.6 |
3*15 |
700 |
1580 |
|
VH-0.17/35 |
0.17 |
35BAR |
2.2 |
660 |
110 |
VH-0.65/35 |
0.65 |
9.0 |
605 |
420 |
|
WH-1.1/35 |
1.1 |
15 |
900 |
475 |
|
WH-2.0/35 |
2.0 |
22 |
670 |
615 |
|
WH-2.2/35 |
2.2 |
25 |
735 |
600 |
|
VH-0.3/40 |
0.3 |
40BAR |
5.5 |
500 |
290 |
WH-1.0/40 |
1.0 |
11 |
790 |
470 |
|
49SH-2.6/40 |
2.6 |
25 |
625 |
900 |
|
49SH-3.0/40 |
3.0 |
30 |
695 |
920 |
|
2-49SH-6.0/40 |
6.0 |
2*30 |
695 |
2100 |
|
4-WH-4.0/40 |
4.0 |
4*11 |
790 |
2400 |
|
6-WH-6.0/40 |
6.0 |
6*11 |
790 |
3600 |
2. Inspection method:
CAGI
3. Inspection standard:
-AISI
-AMS
-ANSI
-ASME
-ASTM
-AGMA
-AGMA
-NEMA
-VDI
-CAGI-NPEUROP
-MS
4. Technical characteristics:
4.1 Automatic pressure unloading system, ensure machine starting without loading.
4.2 With exhaust check valve on outlet.
4.3 Removable type inlet silencing filter, 10 micron precision.
4.4 Normal inertia flywheel, 2 root V belt drive.
4.5 Splashing lubrication to all moving Parts.
4.6 Light alloy pistons, with PTFE.
4.7 Cast iron cylinder head, independent valve seat.
4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.
4.9 World famous brand rolling bearing, ensure the stable operation unit.
4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.
4.11 With Safety Valve Between after-cooling.
The quality of our products can keep up with international standard as introduction of foreign technology.
High efficiency,high performance engergy saving,reliability and long lift are the principle characteristics o HENGDA high pressure air compressor.The Free air delivery from 0.15m3/min to 6.0m3/min.HENGDA makes a very wide model of rang of compressor to meet a wide rand of industrial application and requirement , especially for PET BLOWING Industry. Every machine is equipped with starting,unloading solenoid valve,auto condensate drain valve and advanced capacity control to make machine to operate safe and stable.
