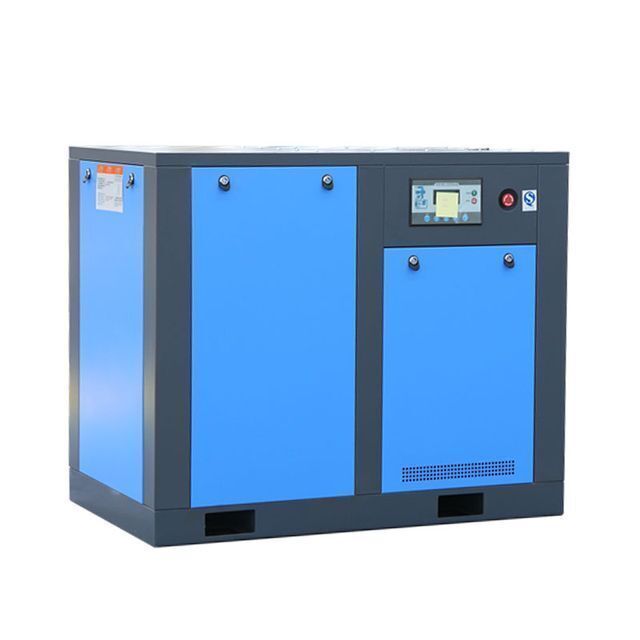

37KW Screw air compressor rotorcomp rotary screw air compressor

Supplier: Jiangsu Faygo Union Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Hussain Figo
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Screw;	Voltage:	380v(according to customer);
Brand Name:	ERC;	Payment Terms:	L/C,T/T;
Colour:	Red/White;	Condition:	New;
Lubrication Style:	OIL-LESS;	Inlet valve:	Hoerbiger;
Configuration:	Stationary;	Video outgoing-inspection:	Provided;
Packaging Detail:	Wooden carton;	Warranty of core components:	1 Year;
Cooling mode:	Air cooling;	Power Source:	AC POWER;
Bearing:	world famous brand;	Gas Type:	Air;
Place of Origin:	Jiangsu China;	Certification:	ISO/CE/GC/IAF/CNAS;
Weight:	1060kg;	Port:	Shanghai;
Machinery Test Report:	Provided;	After-sales Service Provided:	Online support;
Drive mode:	Direct drive/Belt drive;	Warranty:	1 Year;
Mute:	Yes;	Supply Ability:	1000 Set/Sets per Month;
Pump:	Hanbell or AERZEN;	Marketing Type:	Ordinary Product;
Working Pressure:	7 bar,8 bar,20 bar,13 bar,12 bar,10 bar,35 bar;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Showroom Location:	None;	Local Service Location:	None;
Dimension(LWH):	13509501600(mm);	Core Components:	PLC,Pressure vessel,Engine,Gear,Motor,Pump,Bearing,Gearbox;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Faygo:	FaygoPlast is famous China Plant;

Product Description

Our advantages

1. Imported top-grade main machine, as the third generation product of state-of –the art brand the world, with asymmetrical 5:6 tooth rotor, is provided with outstanding performance and high efficiency far beyond other similar-type brand.

2. Full-intellectual control system and LCD screen, with self-diagnosis and protection devices, remote control and multi-host interlocking control, realizing unattended and high-tech operation.

3. Y series three-phase asynchronous motor special for compressor, imported World famous brand bearing, F-level insulation, IP54 especially suitable for long-term use, safe and reliable.

4 .Imported oil filter, oil gas separation filter element, ternary separation, ensure oil content less than 0.001ppm, the trunk adopts metal pipe, safe for long –term operation without leakage or deformation, the V type drive belt is imported from Germany, and has a service life more than10000hous.

5.Air volume auto intelligent control, auto shutdown after over long idle run, ensure over 25% of energy saving.

9.6Valve-free oil system design, achieving a safer and more reliable operation of the whole machine, main machine adopts imported special compressor oil, reducing leakage inside and outside the compressor, improving efficiency of main machine and prolonging service life.

Technical parameters

Model	YDERC- 175SW	YDERC- 200SW	YDERC- 330SW	YDERC- 420SW	YDERC- 470SW	YDERC- 550SW	YDERC- 600SW
Type Of Cooling	Water	Water	Water	Water	Water	Air	Air
Volume Flow/Pressure	24.0/7	27.7/7	43.0/7	54.0/7	64.0/7	70.0/7	76.0/7
m3/bar	23.0/8	26.5/8	40.0/8	47.0/8	55.0/8	62.0/8	68.0/8
	20.0/10	22.5/10	37.0/10	40.0/10
Compressor Power (KW)	132	160	250	315	355	400	450
Speed (r/min)	3000	3000	3000	3000	3000	3000	3000
Power for Steam Turbine Compressor (KW)	160	250	320	400	450	500	600
V/Hz	AC 380/50
Noise db(A)	72±5 Measured according to national standards (GB/T4980-2003)
Exhaust Oil Content	<3ppm
Exit Air Temperature m3/min	Environment Temperature+15°C
Cooling Water Volume L/min	200	118	236	460	540	600	660
Port Size	Dn65	Dn65	Dn100	Dn125	Dn150	Dn150	Dn150

Detailed Image

Main configuration

1 Motor- Germany

2 Belt- Germany

3 Oil filter- Germany

4 Solenoid valve- Japan
5 Combination valve- Austria

6 AC contactor- Germany

7 Gas cooler- Wuxi, China

8 Oil cooler- Wuxi, China

.9 Pressure controller- Japan

Packaging & Shipping

Our Services

1.1 year warranty. During warranty, we provide free of charge for repairing cost.
2. Lifetime maintenance. After-sales department can provide life long maintenance service.

Our customers
