Warranty: | 2 years; | Showroom Location: | None; |
Brand Name: | Faygo; | Max. Cutting Depth: | 1000 mm; |
After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support,Free spare parts,Online support; | Control System: | Mitsubishi PLC control system; |
Key Selling Points: | Long Service Life; | Conveyor Length: | 2000mm*2 groups; |
cutting motor: | Delta srrvo motor; | Type: | Plasma Cutting Machine; |
Weight: | 450kg; | cutting container diameter: | 70-100mm; |
Color: | Blue,white; | Power: | 0.5kw; |
Low pressure air capacity: | 0.1 m3 /min; | Payment Terms: | L/C,T/T,Western Union; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Supply Ability: | 40 Sets per Month; |
Condition: | New; | Cutting platlform height: | 1000mm; |
Applicable Industries: | Manufacturing Plant; | Voltage: | Customized; |
Local Service Location: | None; | Dimensions: | 5000*1700*600; |
Place of Origin: | Jiangsu, China; | Air Cylinder: | Airtac; |
Packaging Detail: | film and wood base for PPR pipe extrusion line; | Certification: | CE/ISO9001; |
Port: | shanghai; | Saw Blade Diameter: | 0.45 mm; |
Application: | PET; |
Introduction:
Nowadays, the cutting industry mainly uses manually extrusion cutting style, this cutting style needs operator to operate the machine, speed is limited; the qualified rate is different because of the different operator skills. Due the extrusion on the container mouth, the force is not even and cannot guarantee the cutting precision. Extrusion Cutting also causes many flakes, it wastes material.

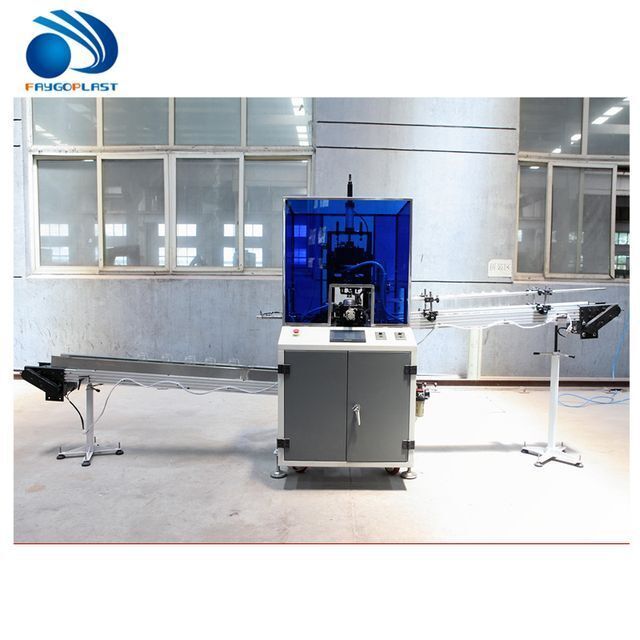

Faygo Union Machinery automatic rotary cutting style is updating solution for this industry. It hugely reduces the cost for factory in labor, material and qualified rate. Our cutting adopts the soft cutting style, it protects the container mouth and does not causes any flakes, it can guarantee the smooth ending and saves the material for you.
This cutting machine can be used for plastic cans, wine cups, pharmaceutical and daily used products. The suitable cutting material can be PE, PVC, PP, PET and PC, it can be connected to the on-line production. The maximum speed can reach 5000-6000BPH.
In short, it will be ideal choice for your cutting solutions.
Main Parameter & configuration
Model | FGC-2 |
Cutting speed | 2000-2400BPH |
Cutting platform height |
(±100mm adjustable) |
cutting motor | Delta servo motor |
conveyor length | 2000mm*2 groups |
conveyor motor | delta speed motor |
cutting container height | 70-300mm |
Low pressure air capacity | 0.1m3/min 8bar |
Air Cylinder | Airtac |
cutting container diameter | more than 3 container sizes needs extra cost |
control system | Mitsubishi PLC control system |
Total | 0.5kw |
Dimension | 5000*1500*1600mm |
Weight | 450KG |
Free Spare parts
Knife | 6 pc |
Tool box | 1 set |
1. Payment Method
30% by T/T as down payment, 70% by T/T paid before delivery.
2 . Mechanical Warranty
One year warranty and come with at least one year recommended spare parts.
3. Delivery & Packing
Delivery Time: 20 days after get down payment &preform, bottle samples
Packaging requirement:
1) The special packaging box is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
