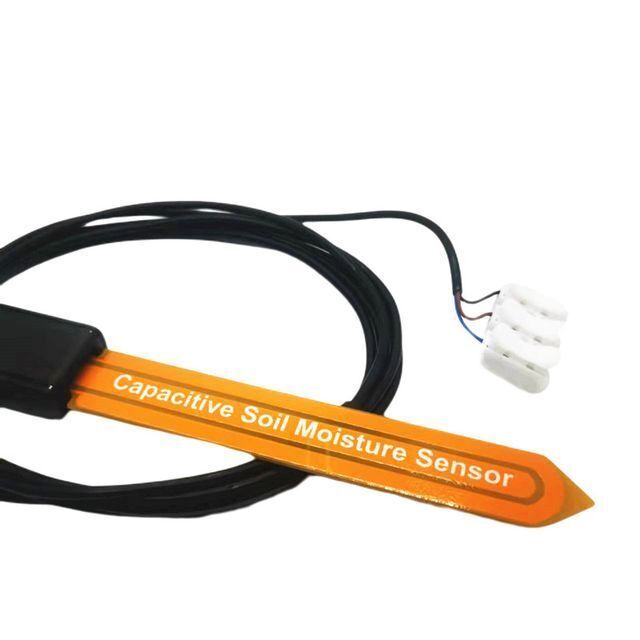

Industrial Analog Voltage Out Waterproof H8 Anti-Corrosion 0-3.3V Capacitive Soil Moisture Sensor

Supplier: Honde Technology Co., Ltd.
Region: Beijing, China
Contact: Mr Marvin Li
Price: $12.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Keywords-2:	Anti-corrosion;	Waterproof:	IP68;
Model Number:	RD-SM-C-03;	Place of Origin:	Beijing, China;
MOQ:	1PC;	Single gross weight:	0.150 KG;
Warranty:	1 year;	Application:	Soil moisture monitoring;
Brand Name:	HONDETEC;	Wireless type:	GPRS/LORA/LORAWAN/WIFI;
Customized support:	OEM,ODM,OBM,LORA/LORAWAN,Software;	Key words-1:	Waterproof;
Key words:	Capacitive soil humidity sensor soil moisture sensor;	Product name:	Capacitive Soil moisture sensor;
Keywords-3:	Acid and alkali resistance;	Type:	Capacitive soil moisture sensor 0-3V output;
Single package size:	20X2.5X2 cm;	Signal output:	0-3.3V;
Selling Units:	Single item;	Package Preview:	;
Packaging Detail:	1 PC/Bag;

Product Description

Product Name	Capacitive Soil Moisture sensor
Probe type	Probe electrode
Measurement parameters	Soil moisture value
Moisture Measuring range	0 ~ 100%(m³/m³)
Moisture Measurement accuracy	±5% (m³/m³)
Voltage output	0-3.3V output
Output signal with wireless	A:LORA/LORAWAN
		B:GPRS
		C:WIFI
		D:NB-IOT
Supply voltage	3-5V DC
Supply voltage	3-5V DC
Working temperature range	-30 ° C ~ 70 ° C
Stabilization time	<1 second
Response time	<1 second
Sealing material	ABS engineering plastic, epoxy resin
Waterproof grade	IP68
Cable specification	Standard 2 meters (can be customized for other cable lengths, up to 1200 meters)

Details Images

Product Usage

Soil Surface measure method

1. Select a representative soil environment to clean up surface debris and vegetation
2. Insert the sensor horizontally and completely into the soil.
3. If there is a hard object, the measurement location should be replaced and re-measured
4. For accurate data, it is recommended to measure multiple times and take the average

Measure Notes

1. All probe must be inserted into the soil during measurement.
2. Avoid excessive temperature caused by direct sunlight on the sensor. Pay attention to lightning protection in the field
3. Do not pull the sensor lead wire with force, do not hit or violently hit the sensor.
4. The protection grade of the sensor is IP68, which can soak the entire sensor in water.
5. Due to the presence of radio frequency electromagnetic radiation in the air, it should not be energized in the air for a long time.

Product test data

We can supply two types voltage output, 0-5V output and 0-3V output, the 0-5V output has higher

precise.

0-3V output Voltage vs. Soil Moisture relationship

0-5V output Voltage vs. Soil Moisture relationship

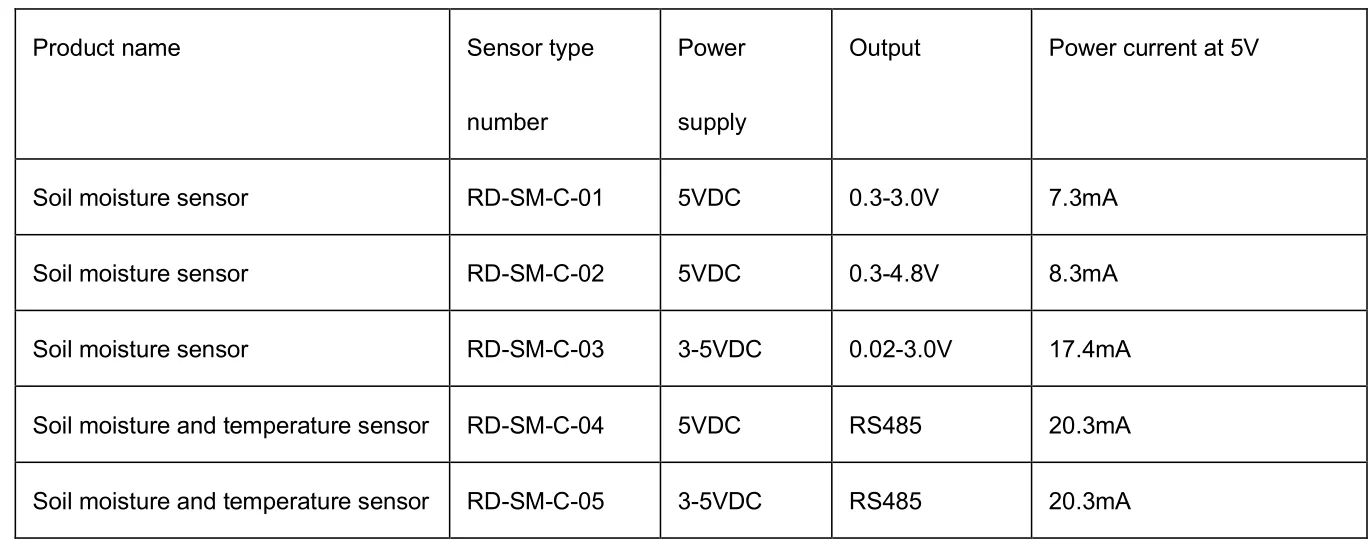

Series product details

Can be customized according to your needs, please contact us.

Related Products

Packing&Shipping

Company Introduction

Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise. We are looking forward to working with you to make our life better due to the blessing of science and technology.

FAQ

Q: How can I get the quotation? A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.

Q: What's the main characteristics of this capacitive soil moisture sensor? A: It is small size and high precision,good sealing with IP68 waterproof, can totally buried in the soil for the 7/24 continuous monitoring. It has very good corrosion resistance and can buried in the soil for a long time and with very good advantage price. Q:Could I get samples? A:Yes,we have materials in stock to help you to get the samples as soon as we can. Q: What’s the common power supply and signal output? A: 3-5 VDC
Q: How can I collect data? A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless transmission module if you need. Q: What's the standard cable length? A: Its standard length is 2 m. But it can be customized, MAX can be 1200 meters. Q: What's the lifetime of this Sensor? A: At least 3 years or more. Q: May I know your warranty? A: Yes, usually it’s 1 year. Q:What's the delivery time? A: Usually, the goods will be delivered in 1-3 working days after receiving your payment. But it depends on your quantity. Q: What is the other application scenario can be applied to in addition to agriculture? A:Oil pipeline transportation leakage monitoring, natural gas pipeline leakage transportation monitoring, anti-corrosion monitoring
