Working Voltage

220V AC, 50/60Hz, Single Phase

Max. Power Consumption

3KW

Glove Box Chamber

·         Case Material: Stainless Steel 304

·         Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)

·         12mm thick double layer laminated safety glass with corrosion protection film for operating in a safe and easy manner

Chamber Condition

·         Water concentration: <1 ppm (20°C, 1 atm)

·         Oxygen concentration: <1 ppm (20°C, 1 atm)

Leak rate

<0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)

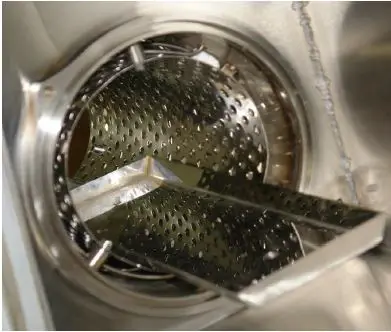

Air-lock Chamber

·         Antechamber Dimensions: 385mm(Dia.) x 588mm(L)

·         Small Chamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)

·         Max. vacuum level: 100 Pa

Working Gas

·         Operating gas: Inert gas such as N2, Ar, He

·         Regenerating gas: Mixture of H2 (10%) and Operating gas

o    For purification system with only water adsorbing function, Regenerating gas will be the same as Operating gas

Gas Purification System

·         Automated Regeneration Process

·         Automated water and oxygen removal

·         Purification Cylinder: made of BASF antioxidant materials and UOP water adsorbent materials

·         Moisture removal capacity: 1.5KG

·         Oxygen removal capacity: 180L

Filter System

·         Organic Solvent Filter System filled with replaceable activated carbon

·         Built in HEPA filter can eliminate particle size > 0.3μm

Control system

·         Siemens PLC control system with 6" touch screen display

o    Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

o    Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

o    Pressure: -2500 to 2500 Pa with an accuracy of 1 Pa

Pump

·         England EDWARDS pump is included for faster vacuum and removing moisture

·         Vacuum rate: 8.4 - 12 m^3/hr

Blower

Flow Rate: 90m³/h

Purification Pipeline

304 Stainless Steel, KF40 Port

Gloves

A pair of NORTH butyl glove is included to provide better protection against toxic materials

Lighting

Built in fluorescent lamp

Slidable Shelf

·         Three slidable shelves are built 0n top of inside glove chamber with dimensions of 300mm x 250mm

·         300mm away from roof

Product Dimensions

3115mm(L) x 830mm(W) x 1830mm(H) (123" x 33" x 72")

Shipping Dimensions & Weight

Total 2 pallets

#1: 86"x41"x84"

#2: 86"x41"x83"

Total weight 1800 lb

Warranty

·         One Year limited warranty with lifetime support

·         Rusting and damage due to improper storage condition or maintenance is not covered by warranty

·         Gloves are consumable items and are not covered under warranty

Application Notes

·         The channel between the glove box chamber and the gas purification system must be unimpeded during the operation of gas purifying

·         Always check the joints, gloves, sealing elements, and pipelines for air-tightness before and during the operation

·         Corrosive gases are prohibited as they will damage the water sensor and oxygen sensor

·         The inlet and outlet of the Air-lock Chamber must not be opened at the same time to prevent contamination by the external gas

·         Coolant water outlet must remain switched on all the time

·         System check frequently to replace filters and solvent adsorbents for maintanence and maximum efficiency
