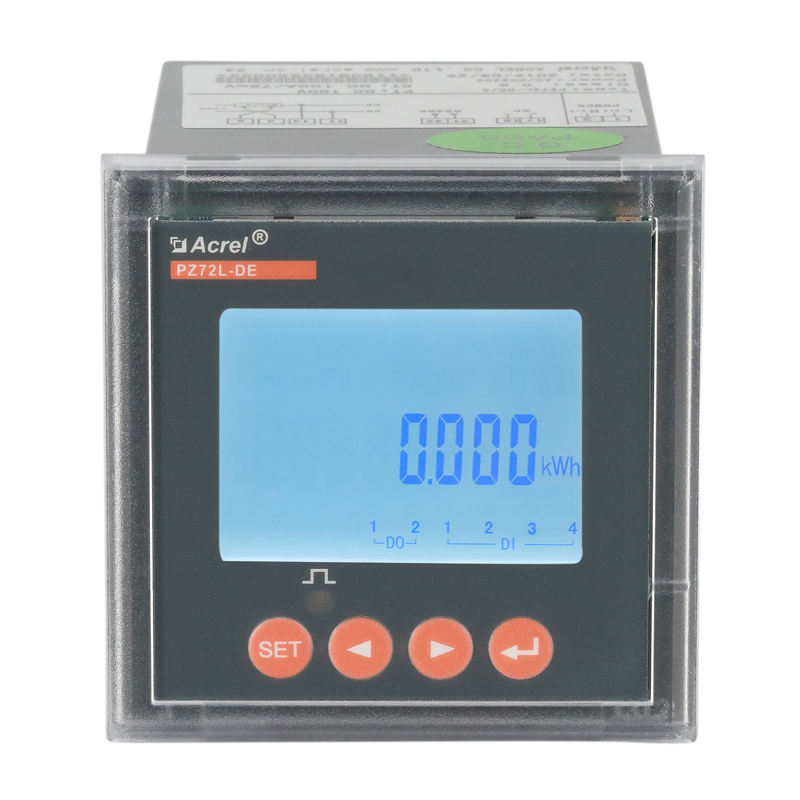

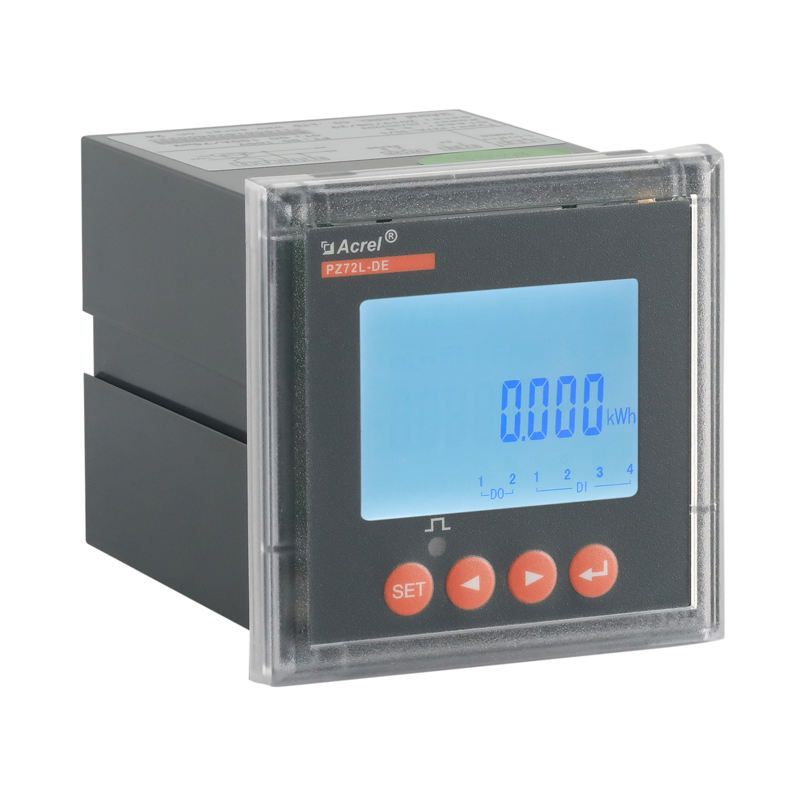

Factory Price PZ72L-DE/C Solar DC Battery Smart Energy Meter with Rs485 Communication

  • Supplier: Acrel Electric Co., Ltd.
  • Region: Shanghai, China
  • Contact: Ms Manni Fan
  • Price: $60.00 /piece
  • Min. Order: 1 piece
Product details
Packaging Details:Factory Price PZ72L-DE/C Solar DC Battery Smart Energy Meter with Rs485 Communication, Carton Packingplace of origin; place of origin:China Shanghai
model:PZ72L-DE/CSales unit:single product
Single package size:28X25X20 cmbrand:Akrel
Measuring voltage range:0-1000VMeasuring current range:0-9999A
Gross weight per piece:2.000 kgAccuracy class:0.5s
Operating temperature:-10C~+55CEN 61326:2006:EN 61010-1:2001
aspect:72x72x97.5mm
general
PZ series DC analyzers are specially designed for GZDW, solar power, telecommunication station and other applications. It can measure voltage, current, power, forward and reverse equipment, and reorganize the measurement and control system. Can be equipped with RS485 communication under Modbus-RTU protocol; and has analog output, relay alarm, digital input/output options. According to different requirements, the parameters of the instrument can be set through the 4 keys on the panel.
appearance
Function
working environment


surroundings
temperature
LCD: -20℃-60℃; LED: -10℃-+55℃
Storage: -20℃~+70℃
humidity
≤93%RH, no condensation, no corrosive gas
high
<2500 m

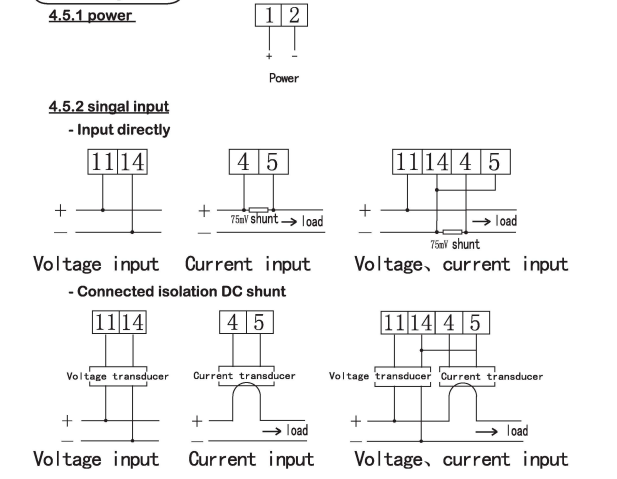

wiring
