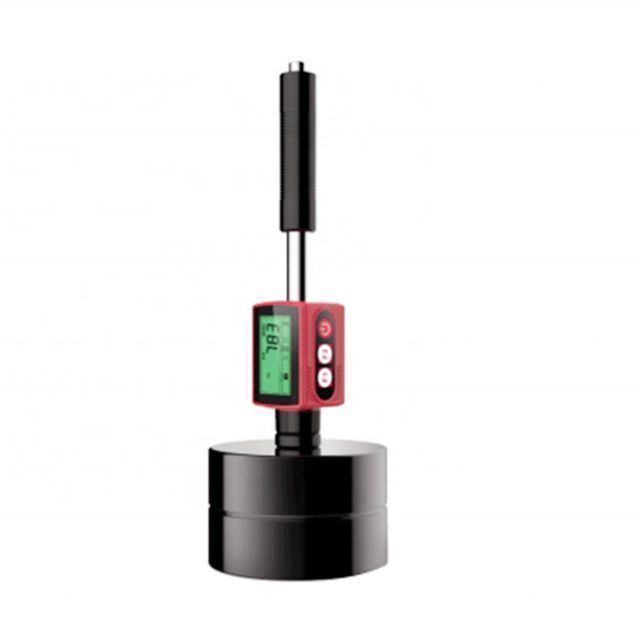

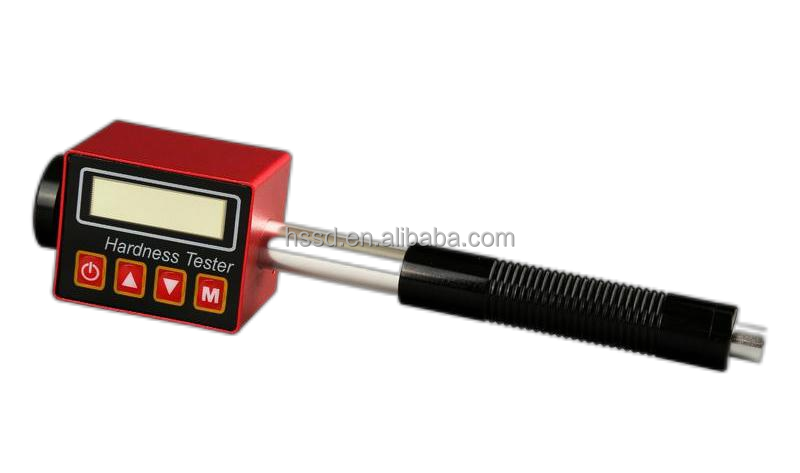

HST New Design Leeb Pen Digital Portable Hardness Tester Wholesale

Supplier: Jinan Hensgrand Instrument Co., Ltd.
Region: Shandong, China
Contact: Ms Lucy Sheng
Price: $189.00 / 1 - 4 sets
$119.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

aspect:	148mm30mm30mm	type:	Pen hardness tester
product name:	PEN Leeb hardness tester	humidity:	90% max
Working hours about:	10 hours	Accuracy HLD:	±0.5% (800HLD)
Operating temperature:	10-50℃	Supply capacity:	200 sets per month
Packaging Preview:		power supply:	Rechargeable Lithium Battery
Hardness standard:	HL, HV, HRA, HRC, HRB, HB, HV, HS	model:	HST-V100
Resolution:	128*64 OLED display	Packaging Details:	Standard export packaging
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Repeatability value HLD:	0.8% (800HLD)
Custom Support:	OEM, ODM	brand:	HST or OEM
port:	Qingdao or any other port in China	place of origin; place of origin:	Shandong China
Warranty:	1 year

HST New Design Leeb Pen Digital Portable Hardness Tester Wholesale

Product Description

main feature

HL series Leeb hardness tester is a portable hardness testing instrument that integrates the most intelligent non-destructive testing technology and the smallest size. The durometer is a revolutionary product that can test most metal objects. HL series products adopt pen-type design and innovative D/DL impact probe to provide convenient and reliable testing experience.

With its compact size, impressive design, competitive price, and ease of use, the Leeb hardness tester can be used in a wide variety of situations.

TonTechnical data

Test direction	Highly accurate in any direction of impact
Test Range	(170-960) HLD, (17.9-69.5) hot rolled coil, (19-683)HB,(80-1042)HV, (30.6-102.6) HS, (59.1-88) HRA, (13.5-101.7) HRB
Hardness standard	HL, HV, HRA, HRC, HRB, HB, HV, HS
accuracy	HLD: ±0.5% (800HLD)
repeatability value	HLD: 0.8% (800HLD)
Resolution	128*64 OLED display
aspect	148mm30mm30mm
power supply	Rechargeable Lithium Battery
operating hours	about 10 hours
Operating temperature	10-50℃
Storage temperature	-30℃ - +60℃
humidity	90% max

feature:

1). Smart operation: easy operation with a few buttons, display of amplitude and Rockwell values.

2). Industrial high-brightness OLED display: OLED display performs well even in sunlight.

3). Accurate measurement value: high precision indication error ±0.5% (HLD=800), indication repeatability 0.8%

4). Support a variety of hardness standards: HL, HV, HRA, HRC, HRB, HB, HV, HS

5). Large-capacity data storage: unprecedented mass storage, leading the trend of technology. Retain data to measure 300 sets of hardness.

6). Support "forged steel (Steel)" material: the hardness value can be preset, limited, and automatically alarmed when it exceeds the range, which is convenient for batch testing needs.

7). Working time: 10 hours

detail
