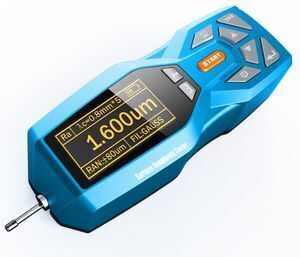

TR200 Portable High Accuracy Surface Roughness Gauge

Product details
Product name:Surface Roughness Gauge;Payment Terms:L/C,T/T,Western Union;
Supply Ability:100 Set/Sets per Week;Place of Origin:Shandong China;
Brand Name:HS or OEM;Packaging Detail:standard export cases;
Port:Qingdao China;Model Number:TR200;

TR200 Surface Roughness Tester



Features

  • Hand-held & advanced model
  • Applicable in production site, laboratory and workshop in factory.
  • Easy operation menu and large LCD display with backlight.
  • Li rechargeable battery.
  • Pickup position indicator.
  • Conform to ISO standard, compatible with DIN, ANSI and JIS standard.
  • Advanced software for TR200 and TR220 is available.
  • Lots of delicate optional accessories are supplied making user’s measurement more efficient and much easier.

Specifications





TR200

TR210

TR220

Roughness parameters

Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr,

Ra, Rz, Ry, Rq

Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2

Assessed profiles

Roughness profile (R)

Primary profile (P)



Primary profile (P)

Unit

mm, inch

Display resolution

0.01 μ m

Data output

RS232

Measuring Range

Ra: 0.025~12.5μ m

Cutoff length (L)

0.25mm / 0.8mm / 2.5mm/Auto

Evaluation length

1~5L  (selectable)

5L  (selectable)

1~5L  (selectable)

Tracing length

(1~5)L + 2L (selectable)

5L + 2 L

( 1~5)L + 2 L (selectable)

Digital filter

RC, PC-RC, Gauss, D-P

Max. driving length

17.5mm/0.71inch

Min. driving length

1.3mm/0.051inch

1.8mm/0.071

1.3mm/0.051inch

Pick-up

Standard pickup TS100, inductive, Diamond stylus radius 5μm, angle of stylus 90°

Accuracy

≤±10%

Repeatability

<6%

Power

Li-ion battery rechargeable

Dimensions

141mm×56mm ×48mm

Weight

480g

440g
