TR200 Portable Surface Roughness Tester/High Accuracy Roughness Tester

Click here to contact

Product details

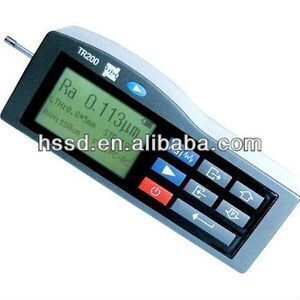

TR200 Surface Roughness Tester

Features

Hand-held & advanced model
Applicable in production site, laboratory and workshop in factory.
Easy operation menu and large LCD display with backlight.
Li rechargeable battery.
Pickup position indicator.
Conform to ISO standard, compatible with DIN, ANSI and JIS standard.
Advanced software for TR200 and TR220 is available.
Lots of delicate optional accessories are supplied making user’s measurement more efficient and much easier.

Specifications

	TR200	TR210	TR220
Roughness parameters	Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr,	Ra, Rz, Ry, Rq	Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, Rpc, Rk, Rpk, Rvk, Mr1, Mr2
Assessed profiles	Roughness profile (R)
Assessed profiles	Primary profile (P)		Primary profile (P)
Unit	mm, inch
Display resolution	0.01 μ m
Data output	RS232
Measuring Range	Ra: 0.025~12.5μ m
Cutoff length (L)	0.25mm / 0.8mm / 2.5mm/Auto
Evaluation length	1~5L (selectable)	5L (selectable)	1~5L (selectable)
Tracing length	(1~5)L + 2L (selectable)	5L + 2 L	( 1~5)L + 2 L (selectable)
Digital filter	RC, PC-RC, Gauss, D-P
Max. driving length	17.5mm/0.71inch
Min. driving length	1.3mm/0.051inch	1.8mm/0.071	1.3mm/0.051inch
Pick-up	Standard pickup TS100, inductive, Diamond stylus radius 5μm, angle of stylus 90°
Accuracy	≤±10%
Repeatability	<6%
Power	Li-ion battery rechargeable
Dimensions	141mm×56mm ×48mm
Weight	480g	440g
