Dimensions (L*W*H): | 2040*1790*1450mm | Voltage: | 380V |
automatic: | Yes | Supply capacity: | 20 sets per month |
strength: | 22kw | payment terms: | L/C, T/T |
Shipping Details: | 30 days | Certification: | International Organization for Standardization |
Polyethylene polypropylene: | fully automatic | Blow molding type: | extrusion blow molding |
brand: | favorite | Plastic processing: | Polypropylene |
After-sales service provided: | Engineers available to service machinery overseas | place of origin; place of origin: | Hebei china |
application: | bottle | weight: | 2000 kg |
Warranty: | one year | port: | Tianjin Xingang |
Health status: | new | model: | XSJ-1.XSJ-2,XSJ-3 |
Packaging Details: | wooden box |

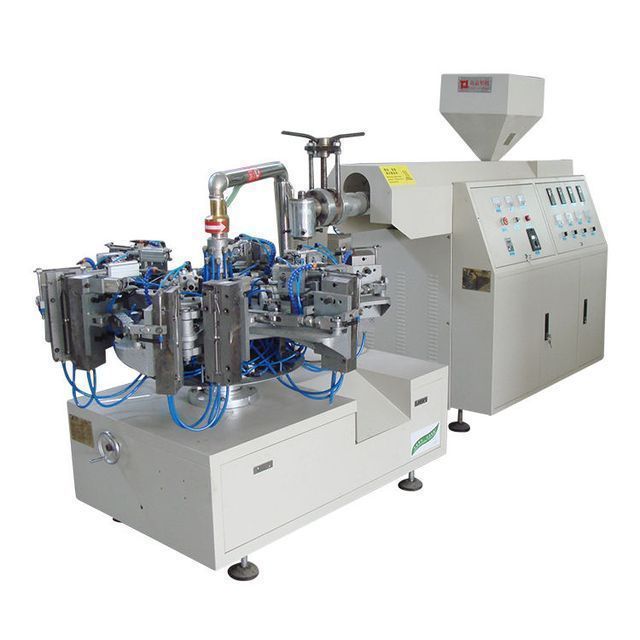

Plastic Extrusion Blow Molding Machine:
We have patents: 1. Rotary automatic plastic blow molding machine patent number: ZL 2006 2 0160012.1 2. Automatic plastic blow molding machine clamping and cutting device in the mold. Patent No.: ZL 2005 2 0123986.8 |
technical parameter | XSJ-1 | XSJ-2 | XSJ-3 |
equipment composition | 6-station blow molding machine with 55 extruders
| Four-station blow molding machine with 45 extruders
| 8-station blow molding machine with 65 extruders
|
Maximum product volume ml | 1200 | 800 | 1500 |
Product diameter mm | 100 | 80 | 110 |
Die size (length*width*height) mm | 120×118×300 | 120×118×300 | 120×118×300 |
Production capacity PCS/day | 20000-120000 | 15000-80000 | 20000-160000 |
Air consumption m3/min | 0.4 | ||
Screw diameter mm | 55 | 45 | 65 |
Major Radius Ratio | 251 |
