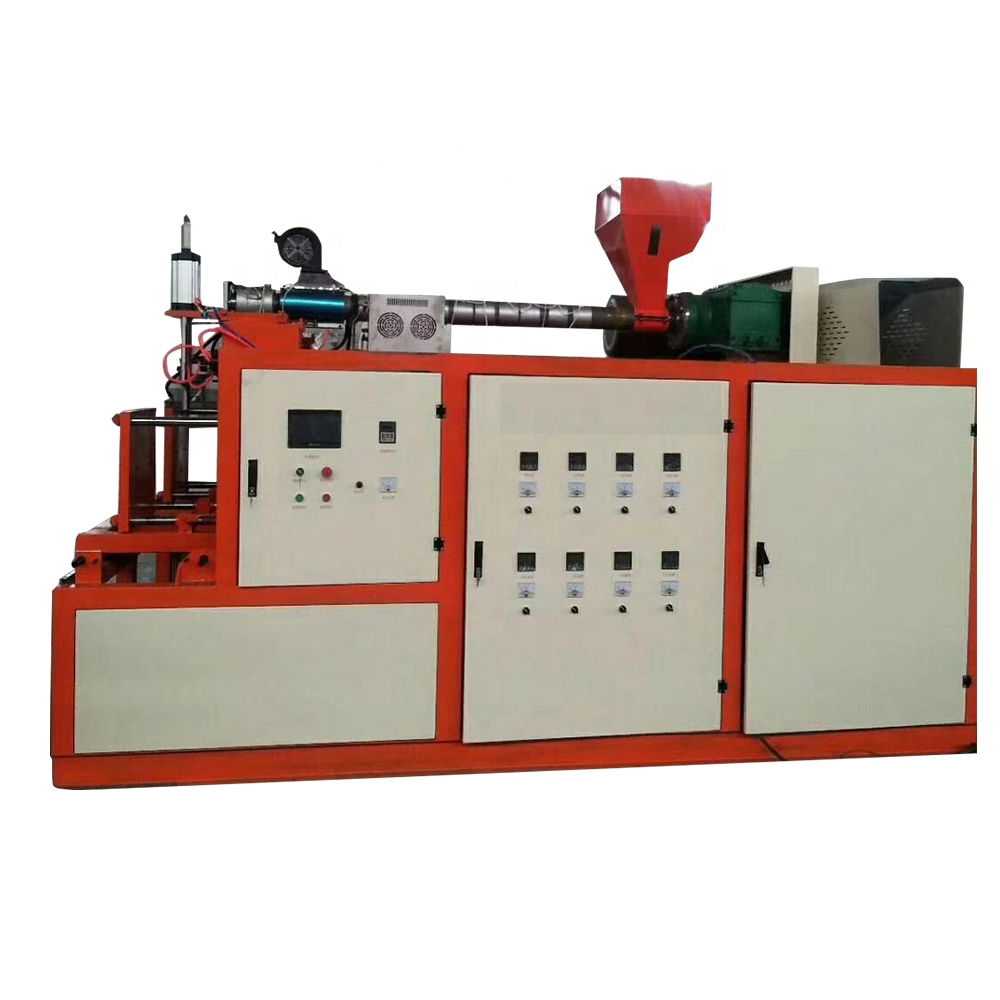

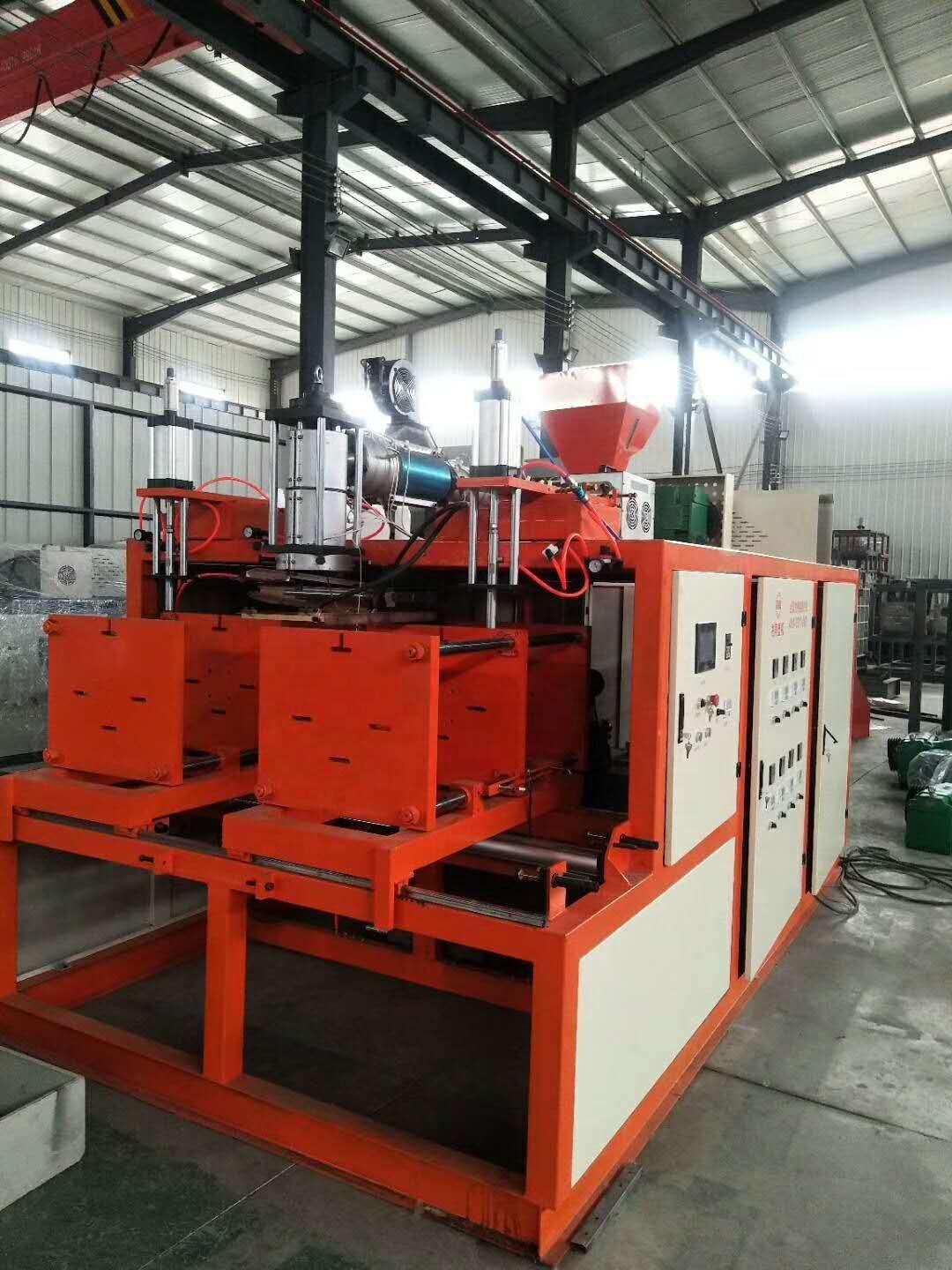

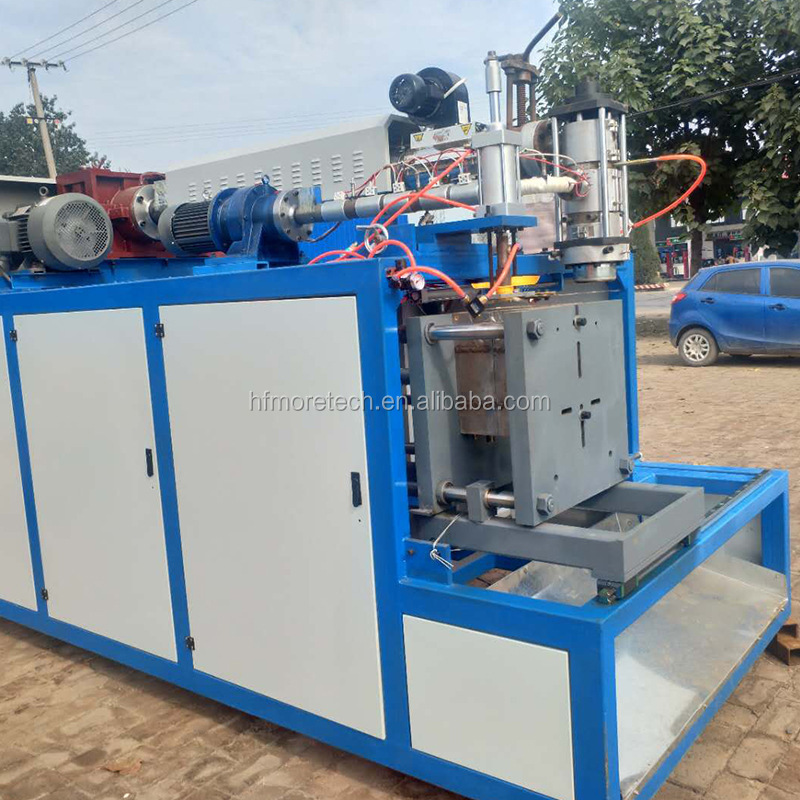

Blow molding machine Hdpe
-
Supplier: Hefei Moretech Machinery & Mould Co., Ltd. -
Region: Anhui, China -
Contact: Mr Crediman Huang -
Price: $7000.00 /set -
Min. Order: 1 set
Product details
| Dimensions (L*W*H): | 3.5X1.8X2.4 | brand: | Maotai Technology |
| Packaging Details: | Wooden box bare metal | Voltage: | 380V |
| Air consumption(m³/min): | 0.8 m3/min | Clamping force(kN): | 450 |
| Certification: | carbon monoxide | Accumulator capacity (L): | 0 liter |
| Mechanical test report: | not available | brand: | New Taiyang |
| Number of screw heating zones: | 4 | Plastic processing: | PP, HDPE, PC, ABS, PVC, PET, PPR, polystyrene, PE, PA, PE/PP, HDPE/PP |
| payment terms: | L/C, D/P, T/T, Western Union, MoneyGram | Package preview: | |
| Mold platen size (height) (mm): | 460 mm | Main selling points: | Sustainable |
| Supply capacity: | 10 sets per month | Mold platen size (width) (mm): | 400mm |
| Power (kW): | 18.5 | Screw heating power (kW): | 6 kW |
| automation: | automatic | Screw diameter (mm): | 80 mm |
| Core components: | PLC, engine, bearing, gearbox, motor, gear, water pump | After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Video shipment inspection: | not available | application: | bottle |
| Local service location: | Egypt, Indonesia, Pakistan, India, Kenya, UAE, Bangladesh, Ukraine | Output (kg/h): | 60kg/hour |
| Die heating power (kW): | 3 kW | Origin: | Hebei china |
| Hollow part volume: | 1L/5L | Showroom location: | United States, Vietnam, Indonesia, Pakistan, Mexico, Sri Lanka, Bangladesh, South Africa |
| Applicable industries: | Energy and mining, hotels, household, machinery repair shops, manufacturing plants, restaurants, building supplies stores, retail, food and beverage factories, food stores, clothing stores, advertising agencies, farms, food and beverage stores, construction, print shops | Air pressure (MPa): | 0.8MPa |
| Marketing Type: | normal product | Weight (ton): | 4.2 |
| Extruder motor power (kW): | 11 kW | Core component warranty: | 1 year |
| Warranty: | 1 year | Year: | 2020 |
| Screw aspect ratio: | 26 | After-sales service provided: | On-site maintenance and repair services, on-site installation, commissioning and training, free spare parts, video technical support, online support |
| Health status: | new | port: | Ningbo |
Product Description
Specification
capacity | 200 cases |
Screw diameter | 75mm |
Voltage | 380V 50Hz |
dimension | 4.5×1.7×2.2 |
Packaging and Shipping

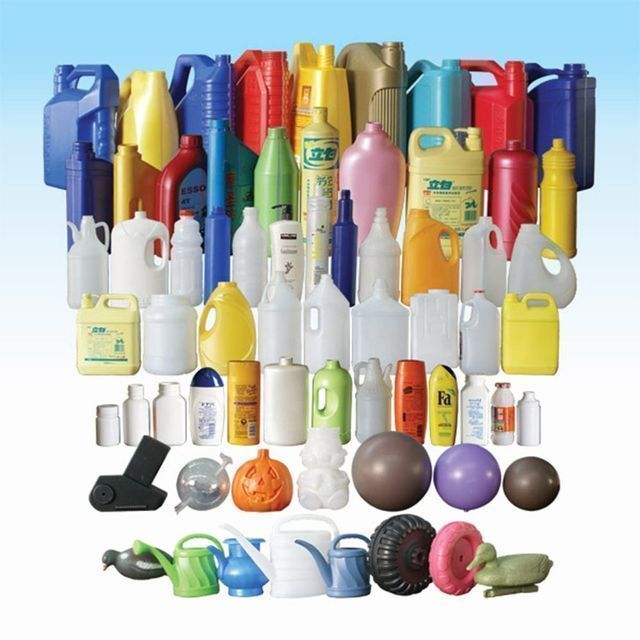

TWe provide HDPE oil tank/lube oil bottle/milk bottle/detergent bottle/shampoo etc bottle extrusion blow molding
machine line. PP Pharmaceutical Bottle PC 5 Gallon Bottle Extrusion Blow Molding Machine Line. Please attach reference
Specifications and price list.
According to the 1L bottle you mentioned below, we have the following 4 models of extrusion blow molding machines:
1.Single stage and Single die head (Its production capacity approx. 300BPH) blow molding machine costs 7,500$; including other
Ancillary equipment cost $10,500
2.Dual stages and Single die head (Its production capacity approx. 500BPH) blow molding machine cost 10,500$; including other
Ancillary equipment cost $13,500
3. Dual stages and Double die head (Its production capacity approx.1000BPH) blow molding machine costs 13,500$; including other
Ancillary equipment cost $16,500
4. Rotary stage and four cavs. (Its production capacity is about 1200BPH) The blow molding machine cost $14,500; including its
Ancillary equipment cost $17,500
Four extrusion molding machine production lines.
According to the 5L jug you mentioned below, we have the following 2 models of extrusion blow molding machines:
1. The cost of Single stage and Single die head (Its production capacity approx. 200BPH) blow molding machine is 12,500$; including its
Ancillary equipment cost $18,500
2.Dual stages and Single die head (Its production capacity approx. 300BPH) blow molding machine cost 14,500$; including its
Ancillary equipment cost $20,500
According to the 20L jug you mentioned below, we have the following 2 models of extrusion blow molding machine:
1. The cost of Single stage and Single die head (Its production capacity approx. 80BPH) blow molding machine is 24,500$; including its
Ancillary equipment cost $32,700
I'm an engineer specialized in these plastic machinery with technology for more than 28 years. if you give us a chance
cooperate. I will try my best to support you to do well, even I will install the machine line specially for you!
My WhatsApp app: +8613003060953 We will keep in touch anytime!
Thank you very much for your reply!
with best regards
Sincerely,
Mr. Huang
Hefei Maotai Machinery Mold Co., Ltd.
Website: www.moretech.info
WeChat +8613003060953
machine line. PP Pharmaceutical Bottle PC 5 Gallon Bottle Extrusion Blow Molding Machine Line. Please attach reference
Specifications and price list.
According to the 1L bottle you mentioned below, we have the following 4 models of extrusion blow molding machines:
1.Single stage and Single die head (Its production capacity approx. 300BPH) blow molding machine costs 7,500$; including other
Ancillary equipment cost $10,500
2.Dual stages and Single die head (Its production capacity approx. 500BPH) blow molding machine cost 10,500$; including other
Ancillary equipment cost $13,500
3. Dual stages and Double die head (Its production capacity approx.1000BPH) blow molding machine costs 13,500$; including other
Ancillary equipment cost $16,500
4. Rotary stage and four cavs. (Its production capacity is about 1200BPH) The blow molding machine cost $14,500; including its
Ancillary equipment cost $17,500
Four extrusion molding machine production lines.
According to the 5L jug you mentioned below, we have the following 2 models of extrusion blow molding machines:
1. The cost of Single stage and Single die head (Its production capacity approx. 200BPH) blow molding machine is 12,500$; including its
Ancillary equipment cost $18,500
2.Dual stages and Single die head (Its production capacity approx. 300BPH) blow molding machine cost 14,500$; including its
Ancillary equipment cost $20,500
According to the 20L jug you mentioned below, we have the following 2 models of extrusion blow molding machine:
1. The cost of Single stage and Single die head (Its production capacity approx. 80BPH) blow molding machine is 24,500$; including its
Ancillary equipment cost $32,700
I'm an engineer specialized in these plastic machinery with technology for more than 28 years. if you give us a chance
cooperate. I will try my best to support you to do well, even I will install the machine line specially for you!
My WhatsApp app: +8613003060953 We will keep in touch anytime!
Thank you very much for your reply!
with best regards
Sincerely,
Mr. Huang
Hefei Maotai Machinery Mold Co., Ltd.
Website: www.moretech.info
WeChat +8613003060953
