Voltage: | 380V/440/220V | Origin: | China |
Hollow part volume: | 60L | Supply capacity: | 2000 sets per year |
Air pressure (MPa): | 0.7 MPa | Warranty: | 1 year |
Screw diameter (mm): | 90 mm mm | Showroom location: | not any |
payment terms: | L/C, T/T | Blow molding type: | extrusion blow molding |
Clamping force(kN): | 300 | Dimensions (L*W*H): | 5*3.1*3.9M |
After-sales service provided: | Engineers can provide overseas service machinery, on-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support | Health status: | new |
Parison Controller: | 30 points | Output (kg/h): | 120 kg/h |
Accumulator capacity (L): | 8 liters | Screw heating power (kW): | 12.5 kW |
Mold platen size (height) (mm): | 1000 mm mm | Weight (ton): | 9 |
Extruder motor power (kW): | 37 kW | After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
Main selling points: | long lasting | model: | ZK-90B |
Air consumption(m³/min): | 0.9 m3/min | port: | Ningbo |
Power (kW): | 70 | automation: | automatic |
Applicable industries: | manufacturing plant | Mold platen size (width) (mm): | 1000 mm mm |
Plastic processing: | polyethylene/polypropylene | Die heating power (kW): | 20 kW |
Packaging Details: | Shipping packaging... | Average energy consumption: | 35 kWh |
Local service location: | not any |
Welcome to "Shengda"

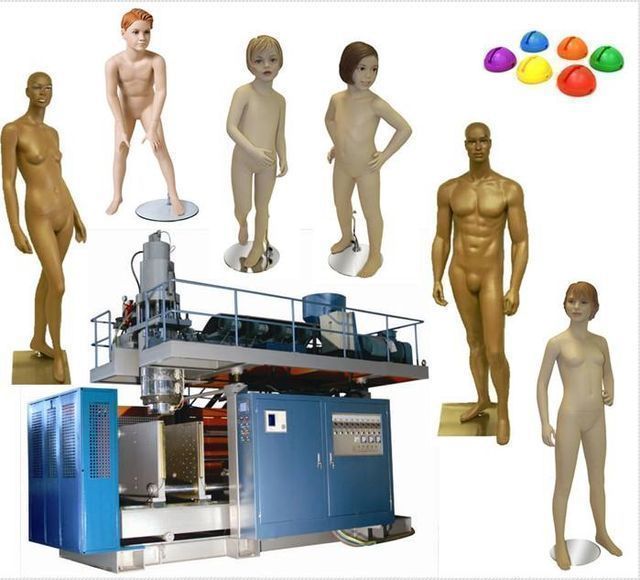

Plastic mannequin model extrusion blow molding machine
(Extrusion Blow Molding Machine) ZK-90B Drum Mannequin Mannequin Baby Car Seat Bus Seat)
This model adopts accumulator mould. Equipped with a parison programmer to control the thickness. This model is an automatic process with the advantages of low noise, energy saving, high efficiency, safe operation and convenient maintenance. This model is widely used in the production of various mannequins, packaging drums made of PE and PP materials, with a capacity between 10-60L. Large and medium-sized plastic hollow products such as tool boxes, gasoline tanks, air ducts and other auto parts.
feature:
1) Taiwan PLC control
2) Temperature control type
3) Interactive monitor with man-machine interface
4) Imported hydraulic components
5) Hydraulic proportional control
(The hydraulic system is designed on the principle of energy-saving hydraulics and adopts a double oil pump structure, which reduces energy consumption by 20%-40% compared with conventional models, and at the same time greatly reduces the oil temperature, prolonging the service life of hydraulic components.)
6) Imported electrical components
7) Hard tooth surface reducer
8) The accumulator head is made of special steel
(The accumulator die head, the flow channel is made of high-quality nitrided alloy steel, with mirror surface treatment, and the material and color can be filled quickly.)
9) Weige hydraulic valve, seal and proportional control
10) Taiwan PLC + Taiwan man-machine interface + touch software + famous brand electrical components.
(PLC plus man-machine interface, touch screen operation. Self-diagnosis and alarm, clear at a glance.)
11) The unique mold clamping structure of "three tie rods + two cylinders + linear guide rail" structure ensures more uniform mold clamping and smoother braiding lines.
Specifications:
Specification | unit | ZK-90A | ZK-90B | ZK-90S |
Maximum Product Reference. | large | 50 | 60 | 50 |
Machine size (LxMxH) | rice | 5x3.1x3.2 | 5x3.1x3.9 | 5x5x3.9 |
gross weight | Ton | 7 | 9 | 13 |
clamping device | ||||
clamping force | KN | 300 | 300 | 300 |
Platen opening | mm | 350-1050 | 350-1050 | 350-1050 |
maximum. Die size (WxH) | mm | 700x1000 | 700x1000 | 700x1000 |
Mold thickness | mm | 360-500 | 360-500 | 360-500 |
Dual mode travel | mm | 1400 | ||
strength | ||||
Hydraulic motor (servo) | kilowatt | 15 | 15 | 15 |
total power | kilowatt | 63 | 70 | 85 |
Screw fan power | kilowatt | 0.72 | 0.72 | 0.72 |
air pressure | MPa | 0.7 | 0.7 | 0.7 |
Air consumption | m3/min | 0.9 | 0.9 | 0.9 |
average energy consumption | kWh | 28 | 30 | 45 |
extruder unit | ||||
Screw diameter | mm | Post-90s | Post-90s | 100 |
Screw aspect ratio | aspect ratio | 25:1 | 30:1 | 30:1 |
Plasticizing ability | kg/h | 100 | 160 | 180 |
Heating power | district | 4 | 4 | 4 |
Extruder heating power | kilowatt | 12.5 | 12.5 | 18 |
extruder motor | kilowatt | twenty two | 30/37 | 45 |
die | ||||
Number of heating zones | district | 3 | 5 | 5 |
Mold heating power | kilowatt | 7 | 20 | 20 |
Battery capacity | large | 5 | 8 | 8 |
Core diameter | mm | 50-350 | 50-350 | 50-350 |
