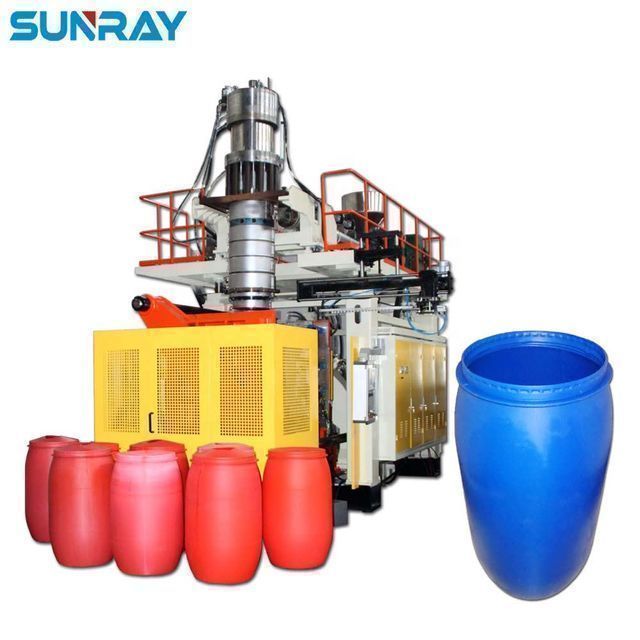

Barrel Making Machine 90L 100L 120L Plastic Barrel Molding Machine 230L 210L 200L 160L

Supplier: Zhangjiagang Sunray Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Mike MA
Price: $34500.00 / 1 - 1 sets
$32000.00 / 2 - 2 sets
$31000.00 / 3 - 4 sets
$29000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Export port:	Shanghai	Hollow part volume:	250
Screw aspect ratio:	28	Main selling points:	easy to operate
Mold platen size (height) (mm):	1400 mm	Dimensions (LWH):	6.84.25.8
Applications:	bottle, drum, board, toy	automation:	automatic
Number of screw heating zones:	5	weight:	22.5 tons
Plastic processing:	PE, PP, PVC, PETG, ABS, EAV	Applicable industries:	manufacturing plant
Voltage:	customer specified	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
place of origin; place of origin:	Jiangsu, China	Air consumption(m³/min):	2.0 cubic meters per minute
Supply capacity:	50 sets per year	Screw diameter (mm):	100 mm
Automatic degree:	fully automatic	Production Process:	extrusion blow molding
delivery time:	50~100 days	Power (kW):	173
Clamping force(kN):	700	application:	jerry cans, drums, tanks, toys, boards
Warranty:	1 year	Mechanical test report:	Not available
After-sales service provided:	Engineers available to service machinery overseas	Air pressure (MPa):	0.8MPa
Weight (ton):	23.5	Extruder motor power (kW):	75 kW
port:	Shanghai port	Core component warranty:	1 year
strength:	108 kW	Core components:	PLC, engine, gearbox, motor, gear
Accumulator capacity (L):	20 liters	Video shipment inspection:	if
State of health:	new	Material application:	Polyethylene, polypropylene, polyvinyl chloride, ABS
Showroom location:	not any	Output (kg/h):	240 kg/h
brand:	sunshine	Mold platen size (width) (mm):	1200mm
Screw heating power (kW):	27 kW	year:	2O022
Die heating power (kW):	33 kW	Blow molding type:	extrusion blow molding
Marketing Type:	normal product	Packaging Details:	Fastened to wooden boards and covered with waterproof plastic film.

Virtual Reality

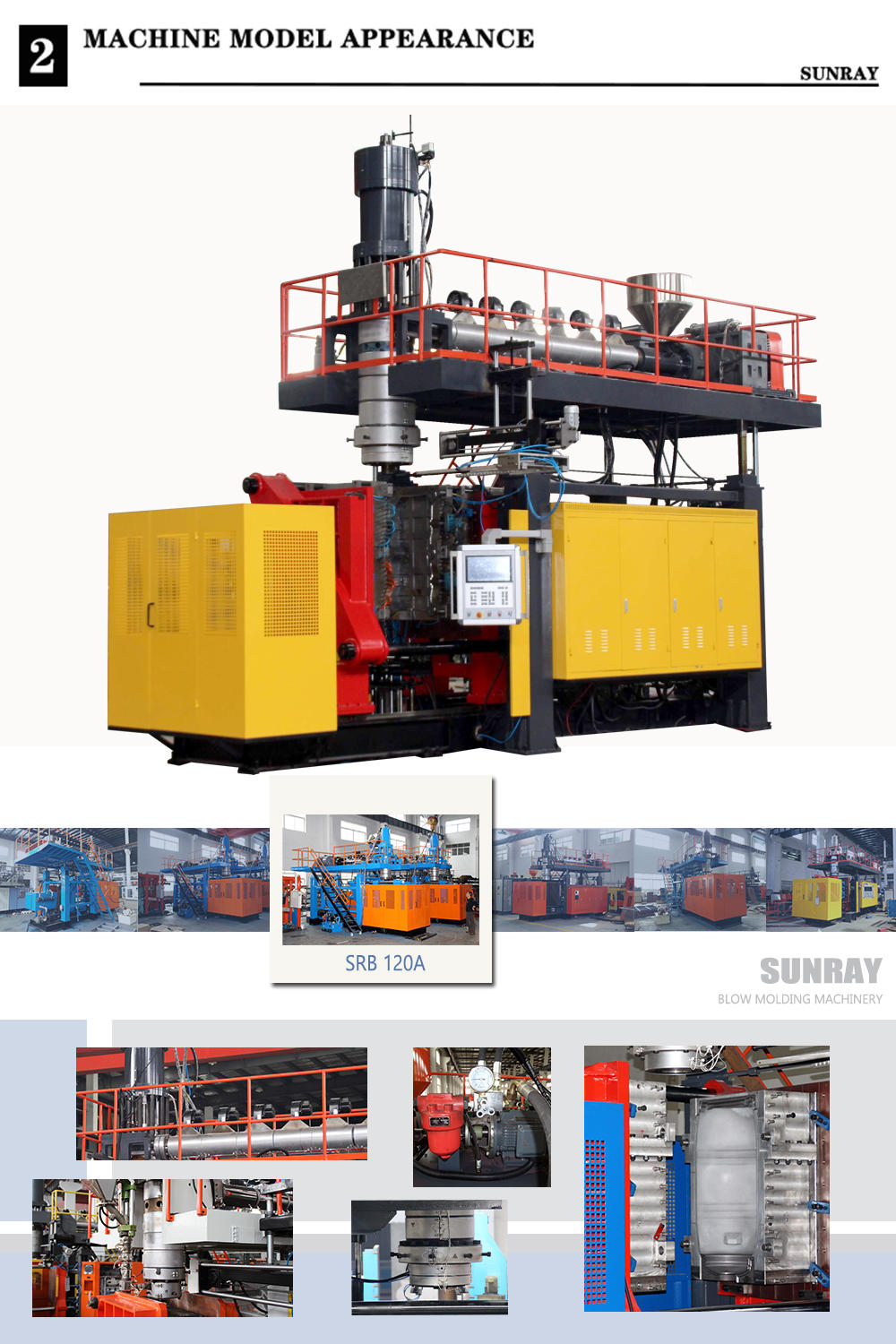

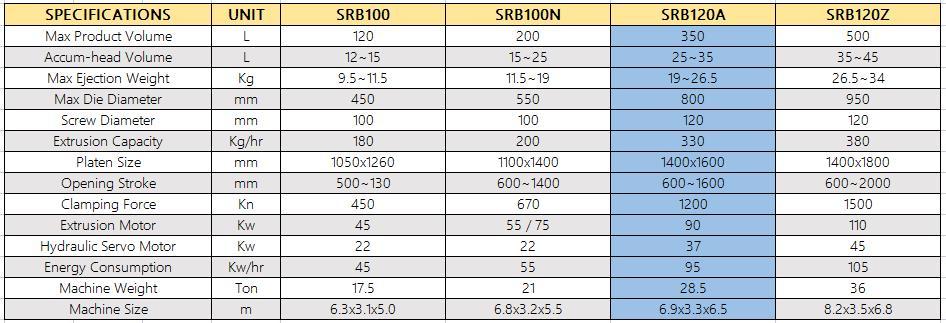

Extrusion Blow Molding Machine SRB120A Manual

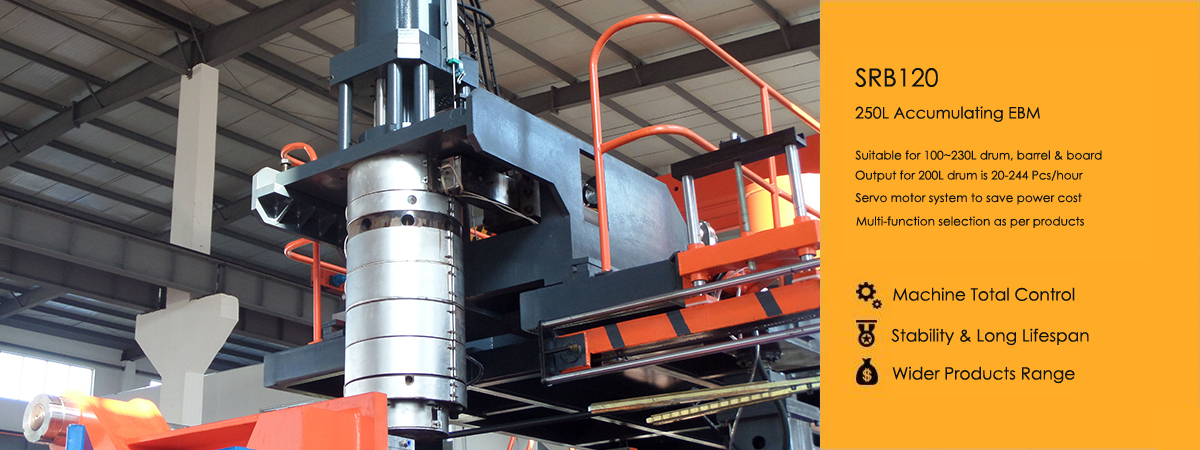

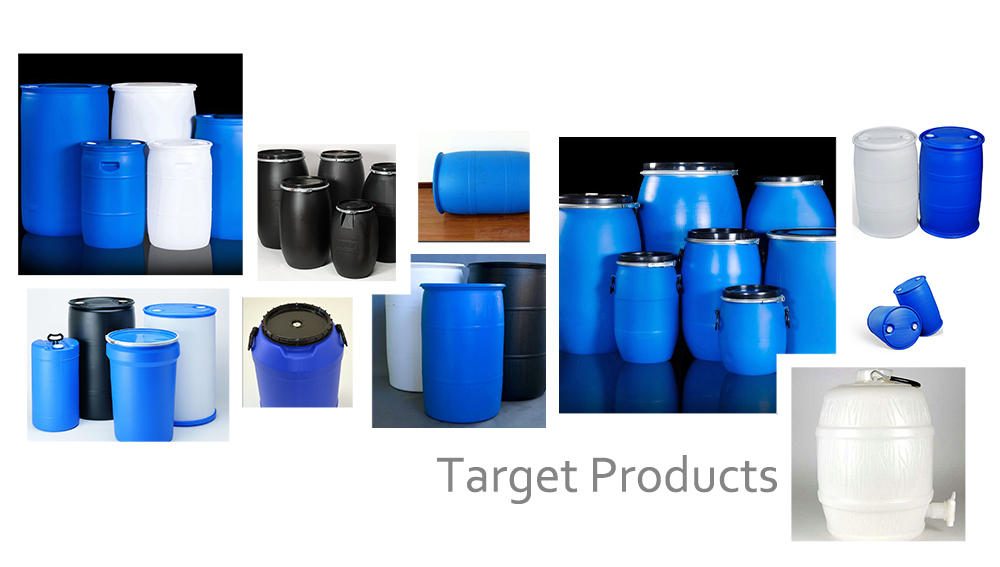

SRB120A is an automatic extrusion blowing machine with a maximum capacity of 250L and a fixed clamping structure of the storage head, which is specially used for the packaging of plastic barrels, barrels and containers of industrial liquids such as chemical liquids, edible oils, antifreeze liquids, and additives. SRB120A adopts the overall machine control system, 100-point parison thickness controller and energy-saving servo motor system, which is easy to operate and economical in production. Sunray Machinery can help you take care of the key points of design and production, and realize your investment successfully and economically. We are a professional one-stop supplier in the field of extrusion blow molding, supporting you from the consulting phase of new projects to after-sales service. We are your professional blow molding work team and partner.

extrusion system

High-hardness bimetallic screws for longer service life. Good screw and teeth design, better plasticizing effect. Reliable performance of gearboxes, motors and inverters. The rotation speed of the pulley is calculated according to the target output to preheat, and the screw and motor are intelligently protected. Mesh filters are optional for small or lightweight bottles. Reasonable runner design, fast color change. Personalize molds and cores to your product width. Each cylinder on each side lifts the head smoothly.

clamping system

For continuous extrusion blow molding machines, we use a shaft-type horizontal translation mold clamping unit. The mold opening and closing and carriage lifting are performed by two independent hydraulic cylinders. The mold is made of cast iron and CNC machining, which has sufficient strength and high precision and parallelism, and the waste is easily removed under the powerful clamping force of the mold balance. The center clamping structure of the lower bent arm is also optional, with faster action speed and better clamping effect.

Hydraulic system

It consists of motor, pump, pressure regulating valve block, reversing valve block, oil cylinder and oil cooler. Control the opening and closing of the pressure plate, the lifting and lowering of the carriage, the lifting and lowering of the blowing needle, and the special action process of the mold. Optimized hydraulic design, using three factors of pressure, flow and time to control the accuracy and stability of the action. Platen moving cylinders with mechanical shuttle valves reduce end position shocks. High stability and reliability, accurate operation, long life and quick response.

Electric control

Wisetech brand made in Hong Kong. True color man-machine control interface. Simple but user-friendly pages are easy to operate. 100-point parison thickness controller and contour version. 20 mold production processes and parameters are saved. Professional engineer setup page for problem diagnosis. Shortcut keypad and emergency stop for safe production. Aluminum cantilever operation box, easy to adjust. Remote technical support and program updates.

Parison control

We use 100-point Wisetech parison control to make a separate panel page of the whole machine control system. Parison curve editing is simpler and smarter, easy to operate, easy to update and correct the parison profile to obtain uniform thickness. At the same time, the installation and adjustment of the parison hardware is also simpler, saving you time and worry. The working cycle time of the parison control can be corrected synchronously according to the action time to obtain the precise parison length.

automated assistance

From the software point of view, our control system is fully functional, and the page can be selected according to the matching requirements of your mold and auxiliary equipment. We also have the highest privilege updater for automation needs. In terms of hardware, we can design and connect your designated auxiliary machines to save your production area and simplify your workflow. PLC can be connected to provide a higher level of safety protection for machines, molds and your operators.

We are specialized in the design, manufacture, export and service of bottle blowing machines with more than 15 years of working experience. Since our establishment, we have manufactured 1~30L single station and double station EBM models, 30~1000L cumulative EBM models. We have achieved successful results and rich experience in transparent visual strips, multi-layer co-extrusion, multi-cavity high-speed machines, servo motor energy-saving applications, special plastic material processing, and personalized design and manufacture of special-shaped product machines.

In addition to extrusion blow molding machines, we also provide bottle blowing molds, auxiliary machines, post-processing tools and equipment for EBM production lines, as well as injection molding machines, injection molds, and automation auxiliary equipment to help our customers arrange the layout of the entire production line, workshop management and workflow. Our team is constantly evolving through new technology application and new design execution, striving for a one-stop service for the benefit of our customers

Your satisfaction is the purpose of our work

We serve the real needs of your project and the products you specify. Our services aim to improve the efficiency of your investment and reduce avoidable waste and costs. From the first email you send us, the first phone call to us, the first step into our company, our service has already begun. Seriously study your samples, carefully analyze your needs, objectively select the appropriate machine model, and even customize the machine for you. The customer service we believe in will be reflected in the equipment and engineering we provide. We always fulfill our responsibility in the field of blow molding.

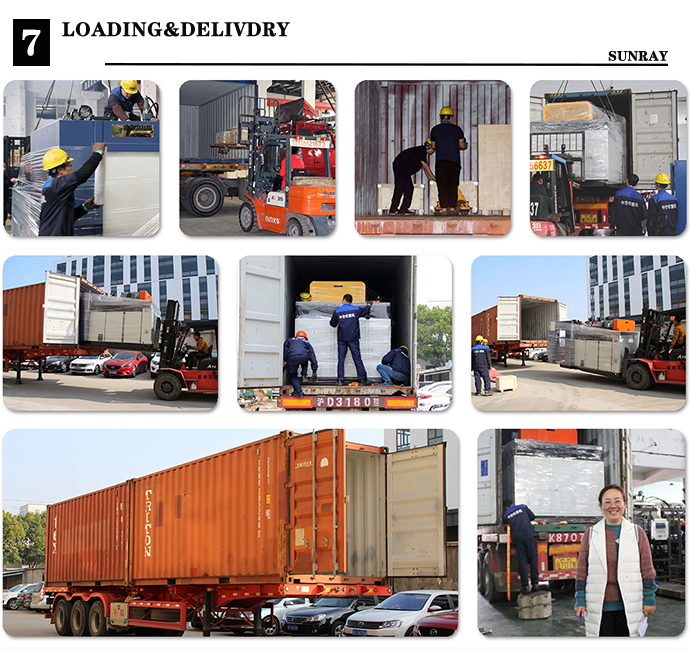

Spare parts, tools, small parts, molds, and auxiliary machines are packed in five-layer boxes, and they are placed tightly according to the loading diagram to save loading space, and finally fixed together with iron plates or belts.

Replacement heads, metal parts, large and heavy parts are packed in three-layer boxes, nailed to the bottom of the container with angle iron plates, or fixed with special hooks and belts to avoid sliding or impacting.

The host or dismantling frame is fixed in the bottom plate of the box with anchor bolts to avoid sliding, and the four corners are locked with special belts and hooks to avoid impact damage during translation.

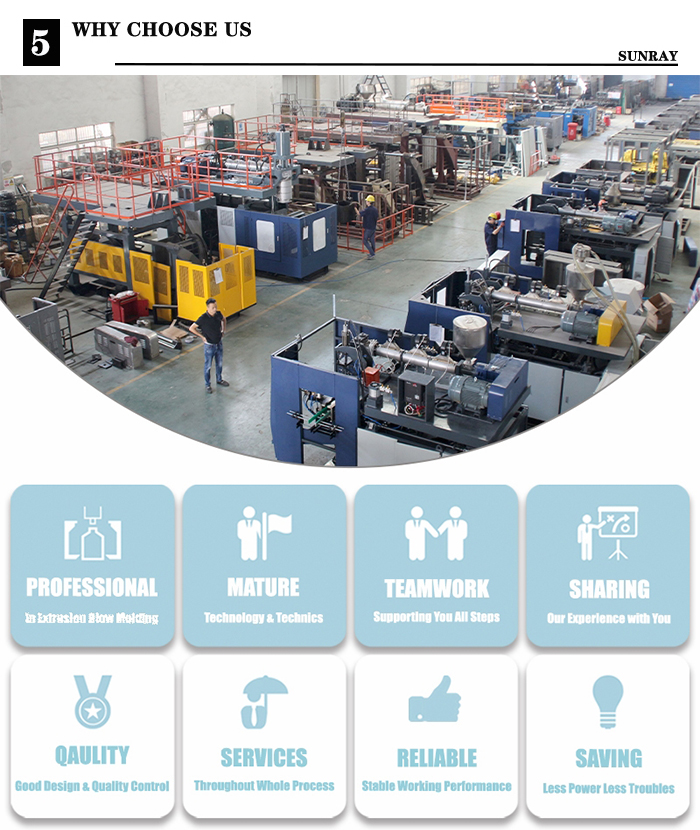

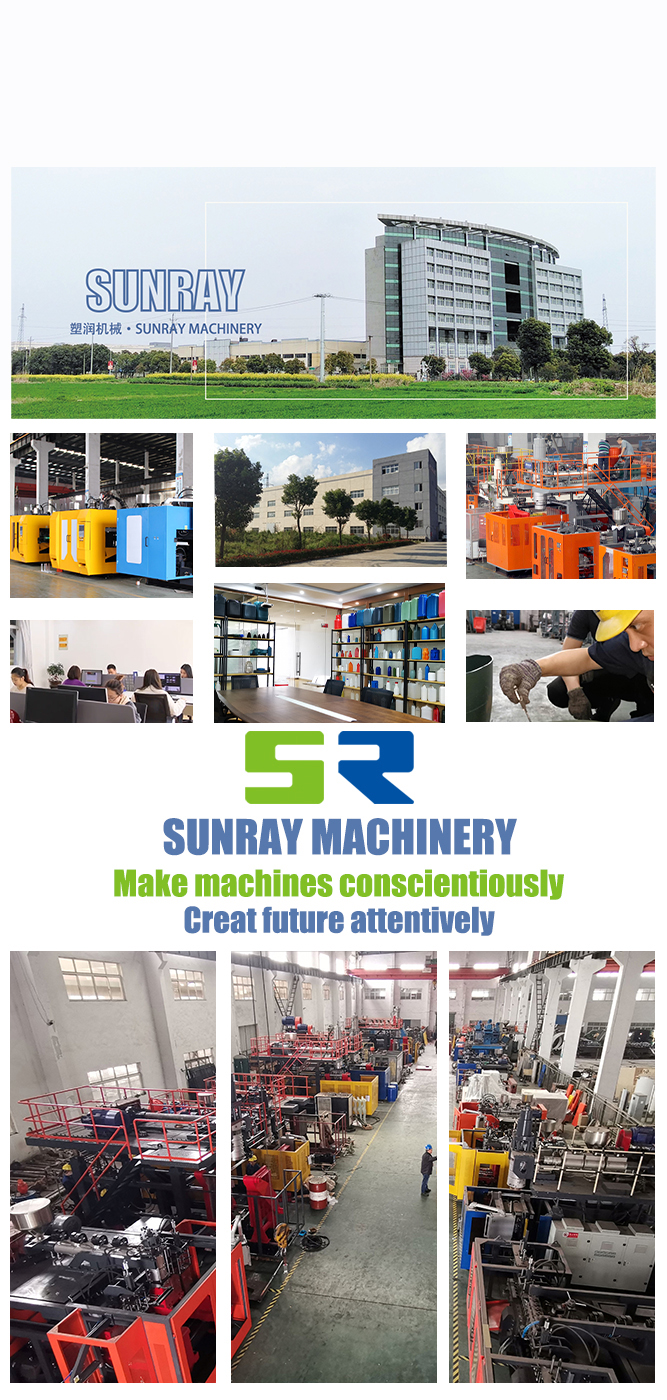

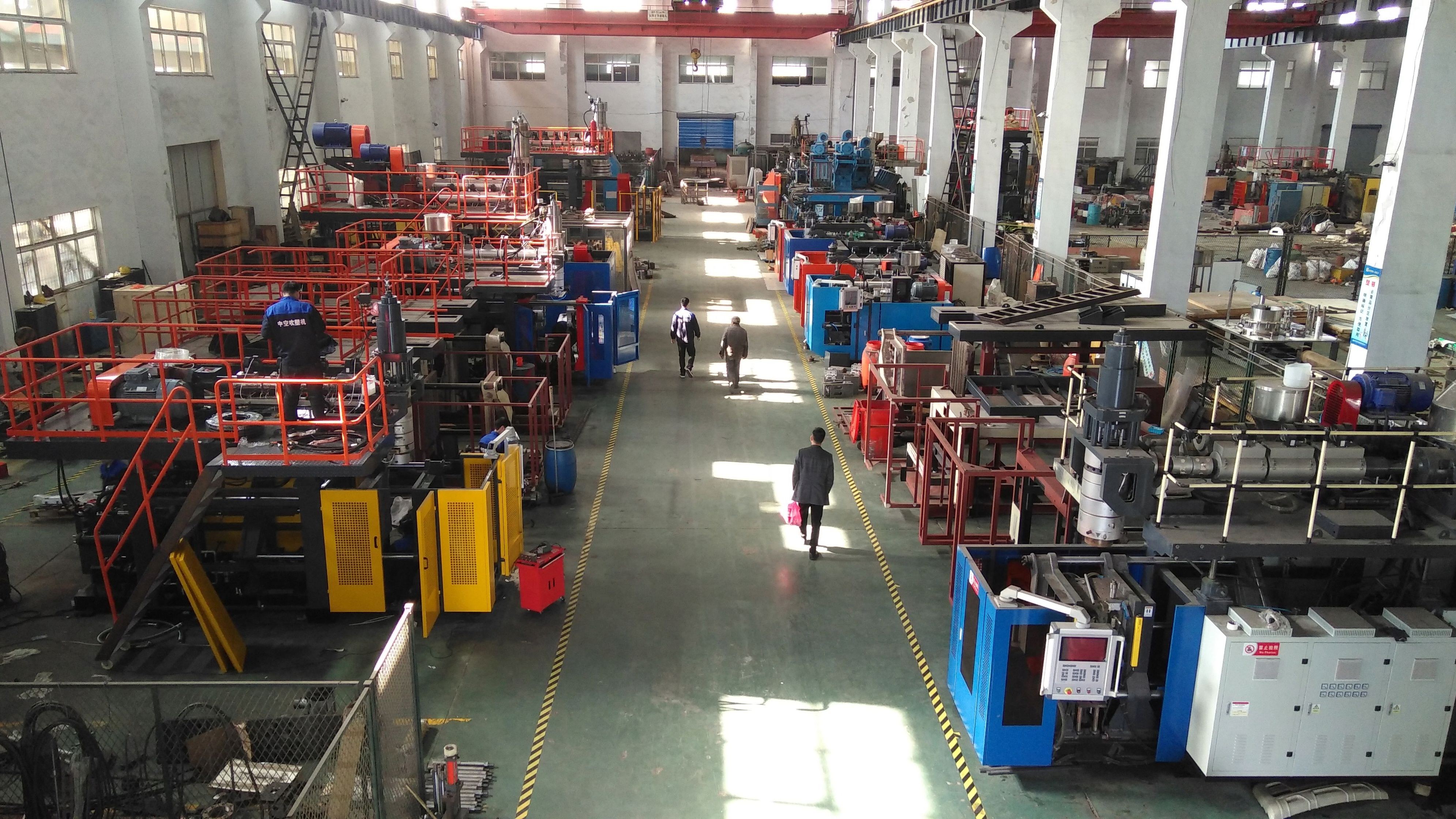

Zhangjiagang Xinrui Machinery Co., Ltd. is a professional blow molding machine manufacturer with more than 15 years of working experience in EBM machine design, manufacture, overhaul, service and project solutions. Our product line covers 0~30L continuous EBM models, high-speed automatic EBM models, 30~500L energy storage EBM models, and 1000~3000L large EBM models. Our machines are widely used in the packaging and production industries of chemical, food and beverage, medical, automobile, traffic safety, entertainment facilities, family life and public facilities. We provide complete solutions for the entire production line of project projects.

Besides our domestic market in China, our blow molding machines are also exported to countries in Europe, Middle East, Africa, South America and Asia. The service covers product analysis, project solution, manufacturing follow-up, export and after-sales service. We have mature multi-layer co-extrusion, high-speed, high-automation blow molding machine technology and process, and can also help our customers with production line layout and production process arrangement. Our machines are of good quality and reliable, with a service life of more than 15 years. Warmly welcome you to establish a long-term cooperative relationship with us!

1. How can I get a correct and economical project quotation from you?

The more detailed product information you show us, the more accurate our project solutions will be for you. Usually we need photos or designs of your target products, the size and weight are very helpful for us to calculate the production capacity correctly. If you want to make some changes or optimizations based on the samples, we can also help you with the design update based on the blow molding process and our experience. Your requirements are welcome, more in-depth communication helps you and us understand each other about your production plan, think about solutions together and achieve your goals successfully.

2. Is your price the lowest in this field? If not, why should I buy from you?

Your and our common development is based on product quality price rate and work efficiency. We don't offer the machine with the lowest price, but we offer the machine with the highest quality price. Quality for us means professional consultation, economical production plan, reasonable design, precise craft, accurate assembly, strict quality control, serious commissioning, experienced installation, patient training, responsible service, Selfless sharing. We strive to do our best and most efficiently to complete every step for higher quality price rate.

3. How to ensure the quality and performance of my machine?

Our quality control starts from the very beginning instead of waiting until the machine is finished. During years of EBM machine development, detail updates, practical work, customer feedback and our improvements, our machine designs and configurations have matured enough. In every production link and step, quality control is related to the assessment and income level of our employees. After your machine is finished, we will do 2-3 times of debugging and trial running to make sure the working performance is stable, instead of leaving potential problems to our customers. Before delivery, we will check everything again.
