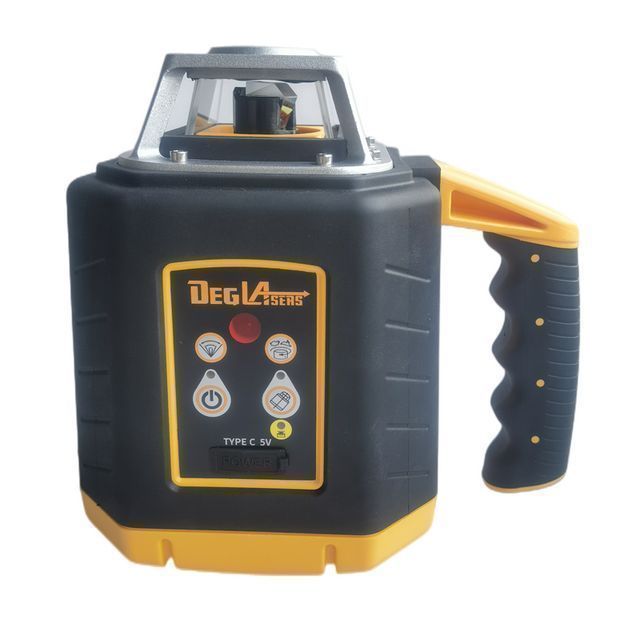

Factory OEM laser equipment green beam outdoor rotating laser level 360 laser level

Product details
Operating temperature:-10°C~45°C (14°F~113°F)Package:Regular packing/According to your request
product name:Rotary Laser Levelmodel:DGP-AG
Measuring range:500m in diameter (using laser deterrents)application:Measure distance then calculate area volume Pythagoras
Package preview:grade:industrial
Warranty:1 yearPackaging Details:carton
payment terms:L/C, T/TCustomization support:OEM production
color:Green light 520nmOrigin:Zhejiang, China
Function:MeasurementBeam number:1
waterproof:IP64power supply:4 AA batteries
Remote control distance:about 20maspect:175(L)*125(W)*170(H)mm
Product Description
Leveling accuracy
Horizontal: ±20″
Leveling range
±5°
Measuring range
Diameter: 500m (with laser detector)
spinning speed
0, 60, 120, 300, 600 rpm
Directional Scan Angle
0º, 10º, 45º, 90º, 180º
Slope adjustment range
±5º(two-way)
light source
Laser diode, wavelength: 635nm (green: 520nm)
remote control distance
about 20m
Operating temperature
-10°C-- 45°C (14°F-- 113°F)
power supply
DC 4.8-6V (4 Ni-MH batteries or 4
Ni-MH rechargeable battery)
hours of continuous use
about 20 hours
waterproof
Protection class 64
aspect
175(L)×125(W)×170(H)mm
weight
1.2 kg
Features
※Vertical laser plane is 7mm away from the wall ※Horizontal laser plane is 13mm away from the ground ※Continuous or pulsed laser, compatible with indoor and outdoor applications Accessories designed to expand the utility of the instrument
