Laser line: | spiral | Tripod thread: | 5/8" |
Warranty: | 1 year | product name: | Automatic self-leveling rotary laser level |
power supply: | Batteries or lithium-ion batteries | change: | with backlight |
port: | Ningbo | Beam number: | 1 |
accuracy: | 1 mm, +/-1/16 inches @ 20 feet | Customization support: | OEM,ODM,OBM |
application: | indirect height | Optional parts: | Tripod, 360° adjustable magnet stand |
Laser class: | Class II | payment terms: | L/C, Western Union, T/T |
Working Angle: | 10°/30°/60° | grade: | industrial |
model: | MK-R01R | Origin: | Zhejiang, China |
Supply capacity: | 1000 pieces per month | Laser Diode: | Red |
Package preview: | Packaging Details: | box+carton or BMC |

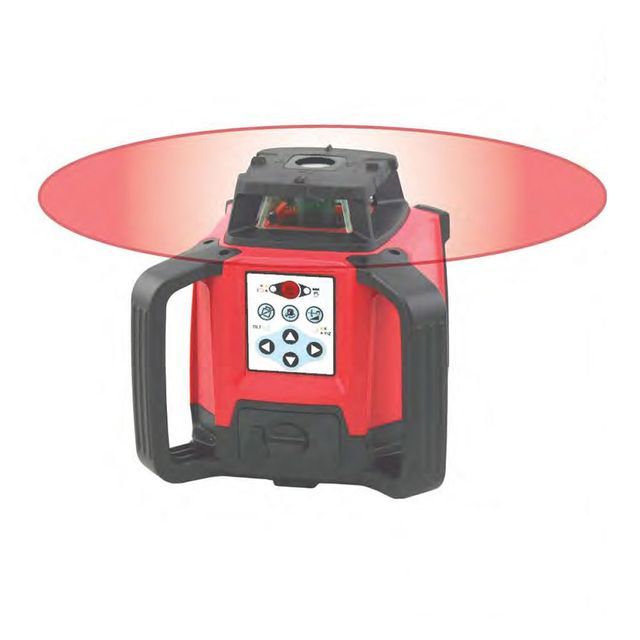

Factory supply automatic self-leveling rotating laser level 3D red laser 12 lines with tool box
-It has rotation, scanning and point functions to choose from.
-Tilt alarm protection.
-Automatic leveling with upward plumb beams in H/V direction.
- Automatic/manual switching mode, dual-axis slope setting can be performed in manual mode.
beam | spiral | Leveling range | ±5° | |
laser diode | 635nm | The scope of work | 0.5~40m (radius) | |
Dustproof and waterproof | IP-54 | scan angle | 10°/30°/60° | |
Laser Safety Class | Secondary | power supply | 2xD Alkaline or Li-Ion battery pack. | |
accuracy | Up: ±1.5mm/10mm | |||
Horizontal/Vertical: ±1mm/10m | mounting thread | 5/8x11, UNC standard | ||
speed: | range of working temperature | -10℃ ~ +50℃ |
