payment terms: | L/C, T/T | color: | Green light 520nm |
aspect: | 175(L)*125(W)*170(H)mm | Package preview: | |
application: | Measure distance, then calculate area volume Pythagoras | waterproof: | IP64 |
Function: | Measurement | Number of Beams: | 1 |

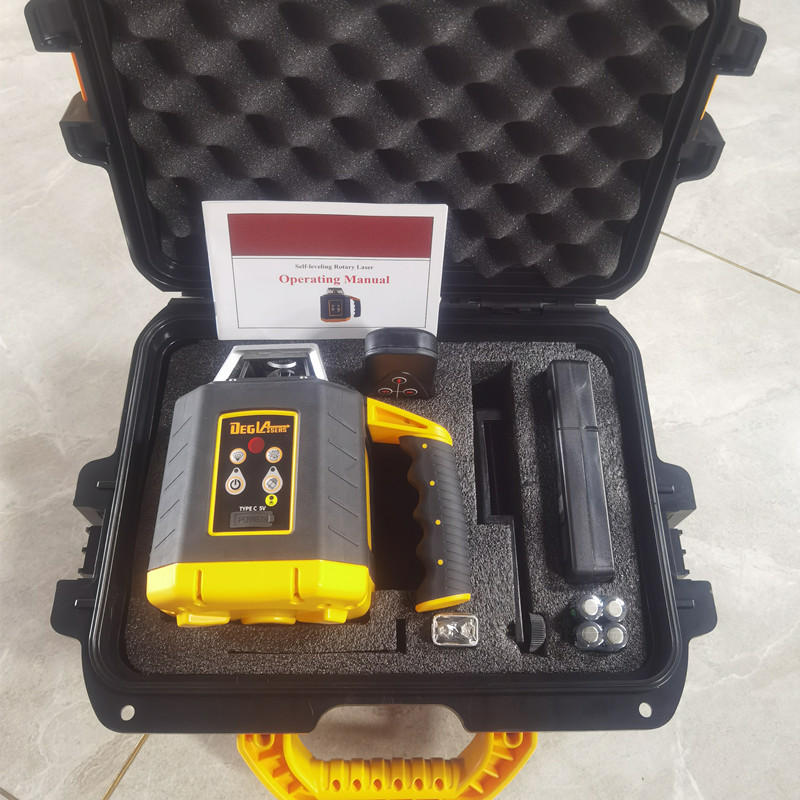

Packaging Details: | carton | Package: | Regular packing/According to your request |
Customization support: | OEM、ODM | Operating temperature: | -10°C~45°C (14°F~113°F) |

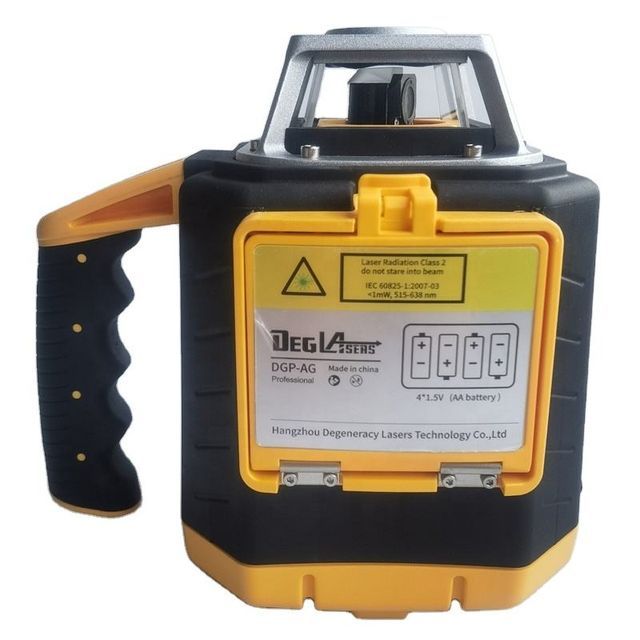

grade: | industrial | model: | DGP-AG |
Origin: | Zhejiang, China | power supply: | 4 AA batteries |

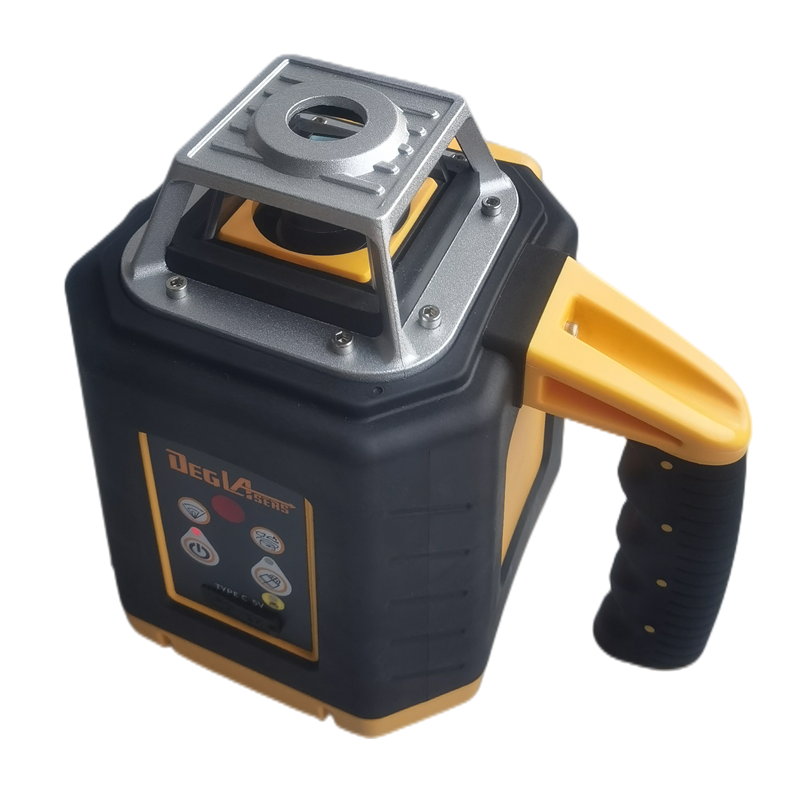

Measuring range: | 500m in diameter (with laser detector) | product name: | Rotary Laser Level |
Warranty: | 1 year | Remote control distance: | about 20m |
Leveling accuracy | Horizontal: ±20″ | ||||
Leveling range | ±5° | ||||
Measuring range | Diameter: 500m (with laser detector) | ||||
Rotating speed | 0, 60, 120, 300, 600 rpm | ||||
Directional Scan Angle | 0°, 10°, 45°, 90°, 180° | ||||
Slope adjustment range | ±5° (two-way) | ||||
light source | Laser diode, wavelength: 635nm (green light: 520nm) | ||||
remote control distance | about 20m | ||||
Operating temperature | -10°C-- 45°C (14°F-- 113°F) | ||||
power supply | DC 4.8-6V (4 Ni-MH batteries or 4 NI-MH rechargeable battery) | ||||
continuous use time | about 20 hours | ||||
waterproof | Protection class 64 | ||||
aspect | 175(L)×125(W)×170(H) mm | ||||
weight | 1.2 kg |
