Compact Lab Planetary Ball Mill Grinding Machine (50-5000 mL Jars) for Li-ion Battery

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	10000 Set/Sets per Month;	Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Tank (Jar):	Four stainless Jars are included;	Speed control:	Variable by changing frequency of three phase AC motor;
Voltage:	220V AC Power plug;	Brand Name:	TMAX;
Weight:	220 Lb;	Type:	Ball Mill;
Certification:	CE Certificate;	Rotary Rate:	Main plate rotation: 50-400 rpm;
Application Notes:	Must place 4 jars or 2 in symmetrical with similar weight;	Color:	Accept Custom;
Dimension(LWH):	350x400x400mm;	Place of Origin:	Fujian China (Mainland);
Material:	Steel;	Lock Clamps (included ):	Various jars are available as optional from 50ml upto 250ml capacity;
Warranty:	1 Year;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Product Type:	Battery Equipments;	Application:	Battery Equipments;
After-sales Service Provided:	Online support;	Condition:	New;
Product name:	Bench-Top Planetary Ball Mill;	Port:	Xiamen Port;
Digital display:	Timer controls major platen's running time from 0 - 9999 hours;	Power(W):	750W;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing,Battery Electrode;

Product Description

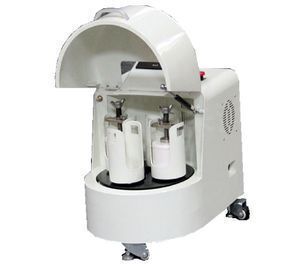

Compact Lab Planetary Ball Mill (50-5000 mL Jars) for Li-ion Battery

1. It has four ball grinding tanks installed on one turning plate. When the plate rotates, the tank axis makes the planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high-speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. (Note: granularity of grand products is dependent on the material properties, size, and quantity of milling media and processing time. According to customer's feedbacks, minimum granularity can be as small as 0.1 um).

Specifications

Working Voltage	220V AC Power plug
Max. Power Consumption	750W
Speed control	Variable by changing frequency of three phase AC motor
Rotary Rate	1. Main plate rotation: 50-400 rpm 2. Mixing tank self-rotation: 100-800 rpm
Digital display	1. Digital display the speed in RPM/Hz 2. Timer controls major platen's running time from 0 - 9999 hours
Tank (Jar) Lock Clamps (included )	Four stainless Jars are included Various jars are available as optional from 50ml upto 5000ml capacity
Compliance	CE Certified
Warranty	One year limited warranty with lifetime support
Production Dimensions	350x400x400mm
Net Weight	220 Lb
Application Notes	1. SS304 mixing jar is suitable for grinding various metal materials 2. Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, If using one jar, you must put another jar with the same weight in symmetrical position. Otherwise, unbalance rotation, especially one jar, may damage the machine.

Detailed Images

Packing & Delivery

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
