ISO SGS Germany Type Gypsum Board Production Line/Machinery
-
Supplier: Linyi City Mengshan Tourism District Huabang Building Materials Co., Ltd. -
Region: Shandong, China -
Contact: Mr zhao David -
Price: $246000.00 /set -
Min. Order: 1 set
| Packaging Detail: | ISO SGS Germany Type Gypsum Board Production Line/Machinery: We always pack gypsum board making line in new strong wooden cases suit able for long distance ocean transportation.; | Certification: | ISO9001:2000 SGS; |
| Weight: | According to the annual capacity; | Degree of automation: | Fully automatic; |
| Supply Ability: | 20 Set/Sets per Year gypsum board production line; | Production Capacity: | 2 to 30 million sq.m per year; |
| Method of dryer: | Hot oil and hot air; | Payment Terms: | L/C,D/A,T/T,Western Union,MoneyGram; |
| Selling to: | Worldwide; | Condition: | New; |
| Brand Name: | HUABANG; | Dimension(L*W*H): | According to the annual capacity; |
| Guarantee: | 3 years; | Port: | Qingdao port,China; |
| Product Name: | ISO SGS Germany Type Gypsum Board Production Line/Machinery; | Power(W): | According to the annual capacity; |
| Fuel for the dryer: | Natural gas,coal,diesel,heavy oil,light oil etc; | Automatic Grade: | Automatic; |
| Industry experience: | 17 years; | Place of Origin: | Shandong China (Mainland); |
| Application: | Gypsum board making line is used for produce gypsum board; | Annual capacity: | 2 to 30 million sq.m; |
| Voltage: | Customer requirements; | Features: | Can be customized; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Type of the final product: | Common gypsum board,fireproof gypsum board etc; |
ISO SGS Germany Type Gypsum Board Production Line/Machinery
Product Description
Product Name | ISO SGS Germany Type Gypsum Board Production Line/Machinery |
Annual capacity | 2 to 30 million sq.m |
Method for dryer | Hot air and hot oil |
Length for occupied area | 85M to 400M |
Width for occupied area | 15M to 40M |
Degree of automation | Fully automatic and semi automatic |
Final product specification | Common,fireproof,waterproof gypsum board 7 to 15mm in thickness 1800 to 3600mm in length 1200 and 1220mm in width |
Fuel for the boiler | Natural gas,coal,desel,heavy oil,light oil etc |
Guarantee | 3 years |
Checking | SGS CIQ |
Export experience | 12 years till 2015 |
Industry experience | 16 years till 2015 |
Detailed Images
1.Paper supply system
The special pneumatic shaft
Magnetic powder brake
Exact paper connection device
High definition automatic device
High definition automatic alignment device

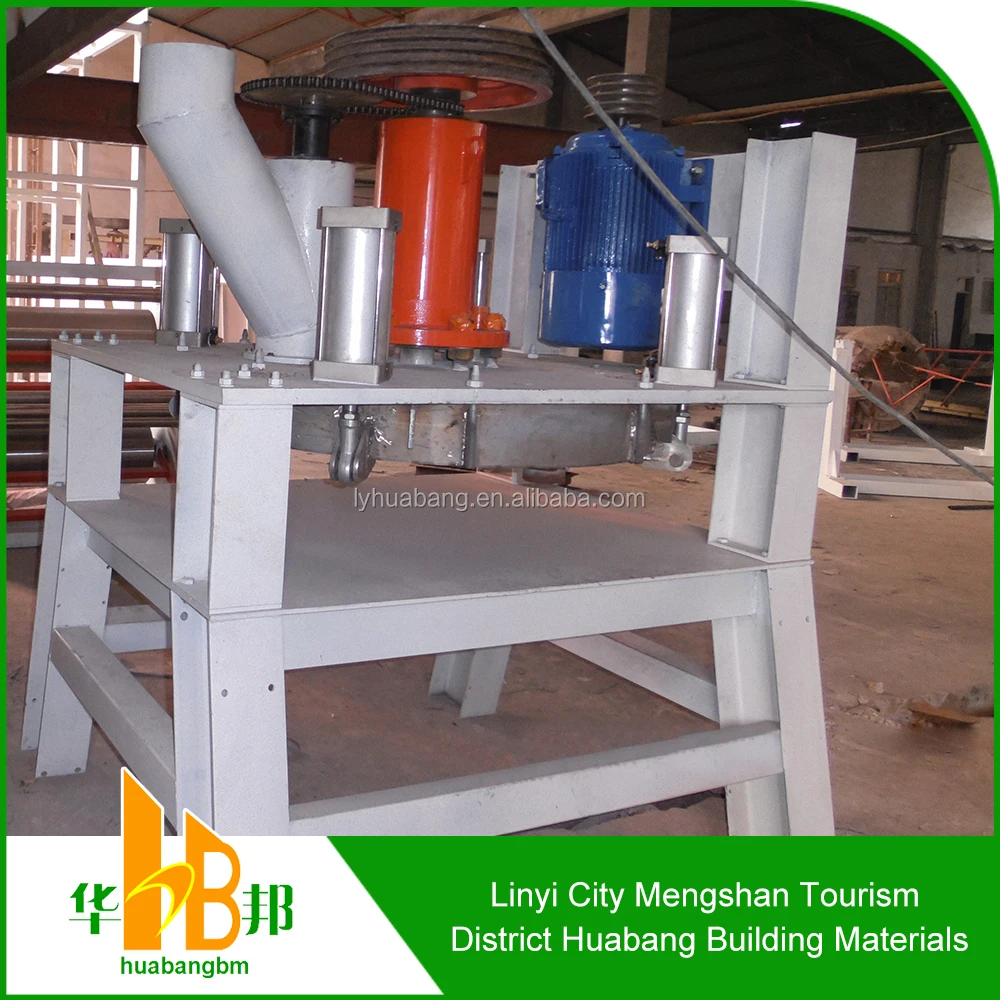

2.Mixing system
Mainly consists of paper slurry,foaming agent,starch,water and additive etc
All slurry has the feedback signal of level indication and chain control each batching process according to the process requirement

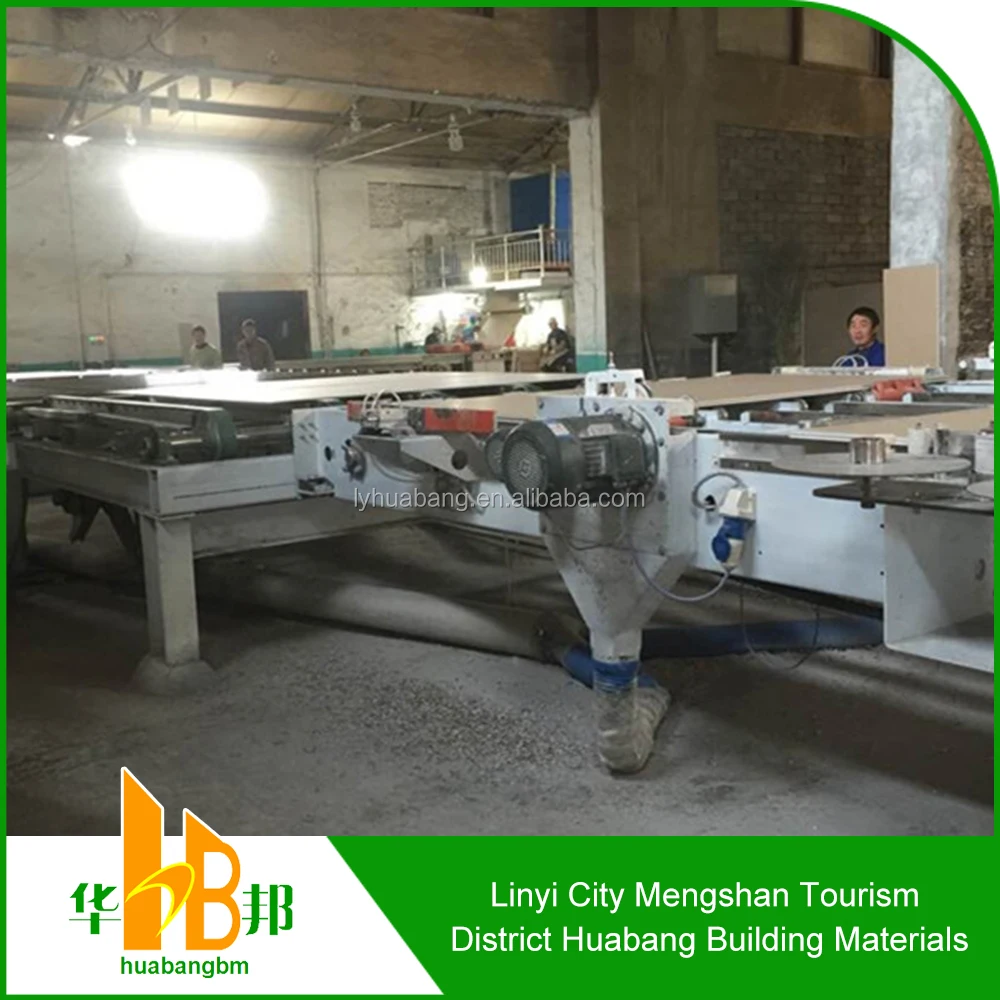

3.Forming system

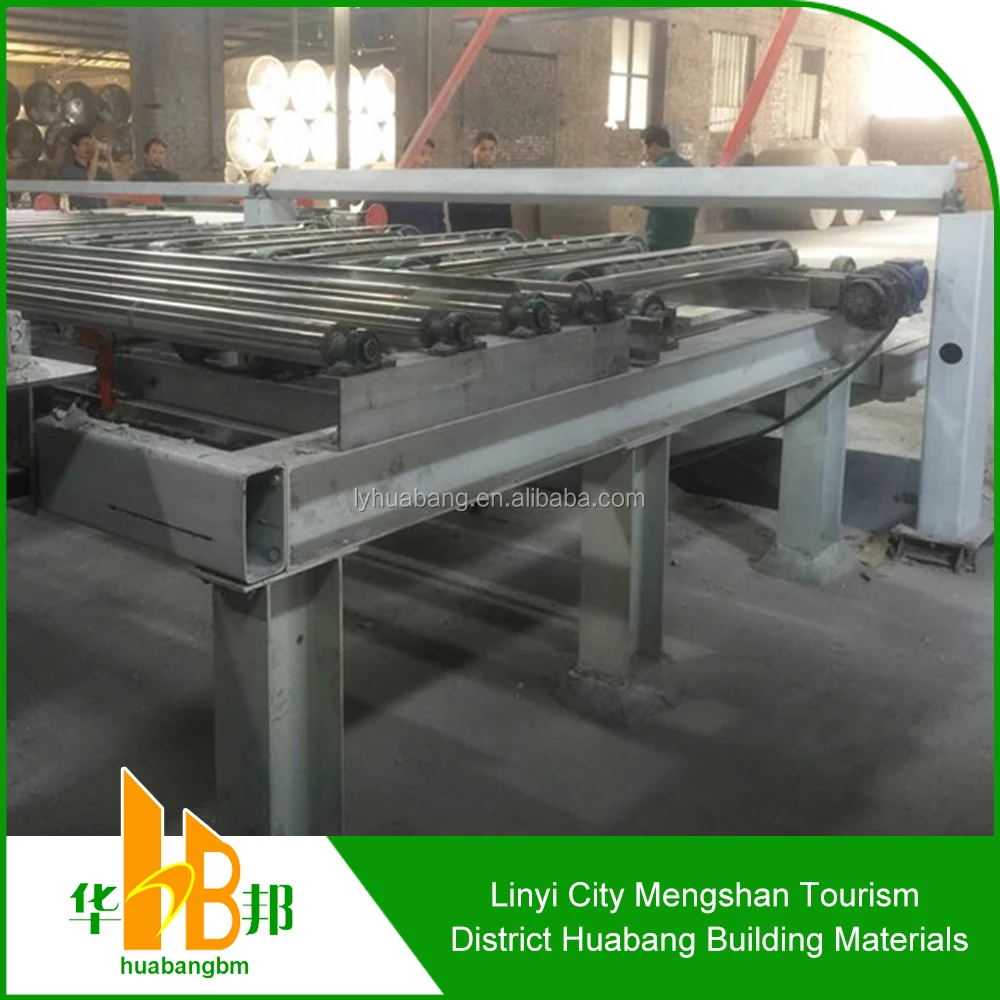

4.Conveying system
This part is composed of two sets solidification belt machine and one conveying roller machine.The three machines need to run synchronically.
5.Cutting system
Whole cut control algorithm is achieved by the separate PLC.

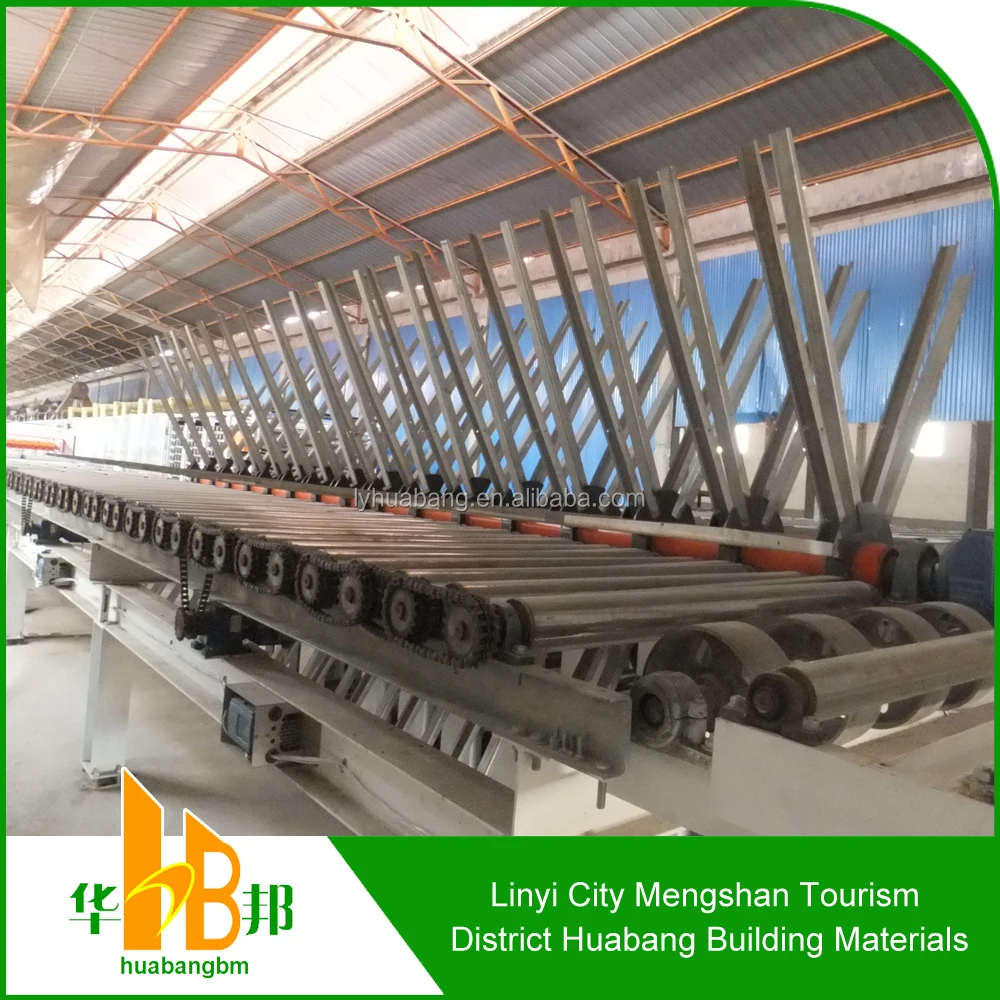

6.Transferring system
This part mainly function is gypsum board acceleration conveying,overturning,transit conveying and lifting.

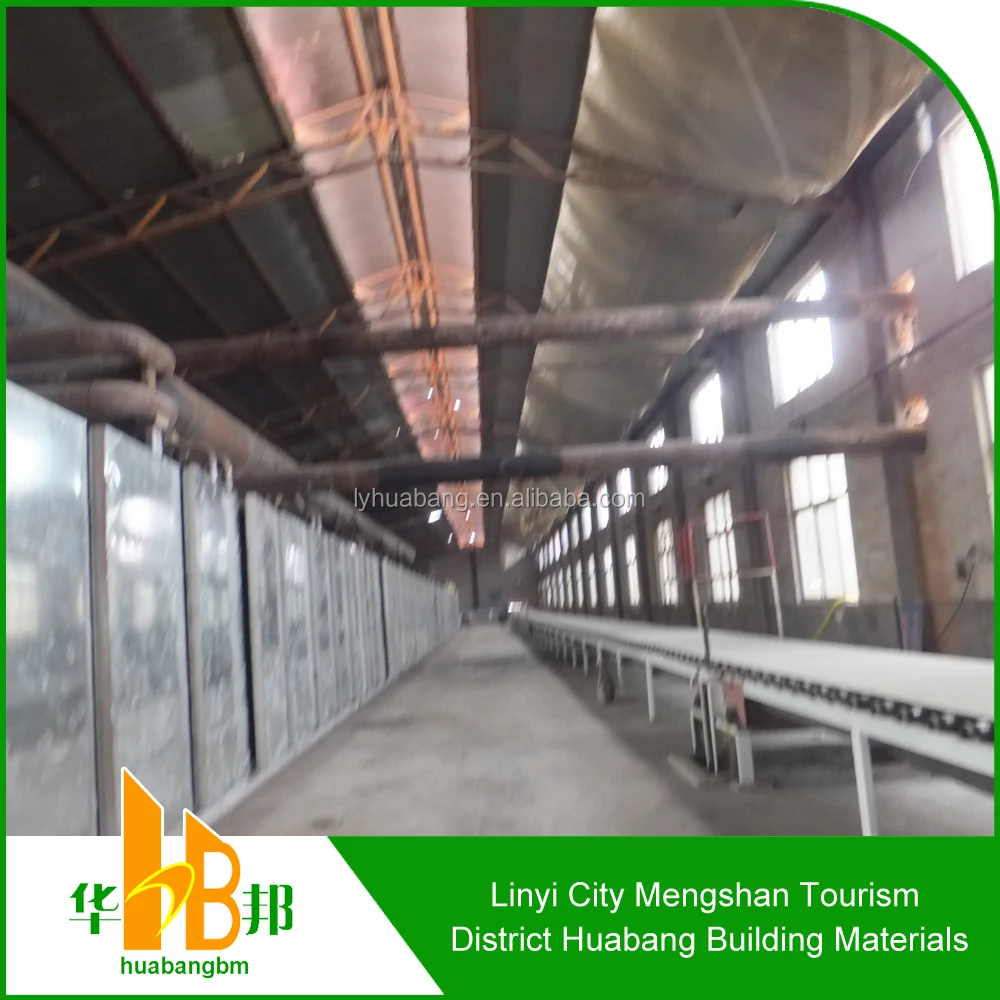

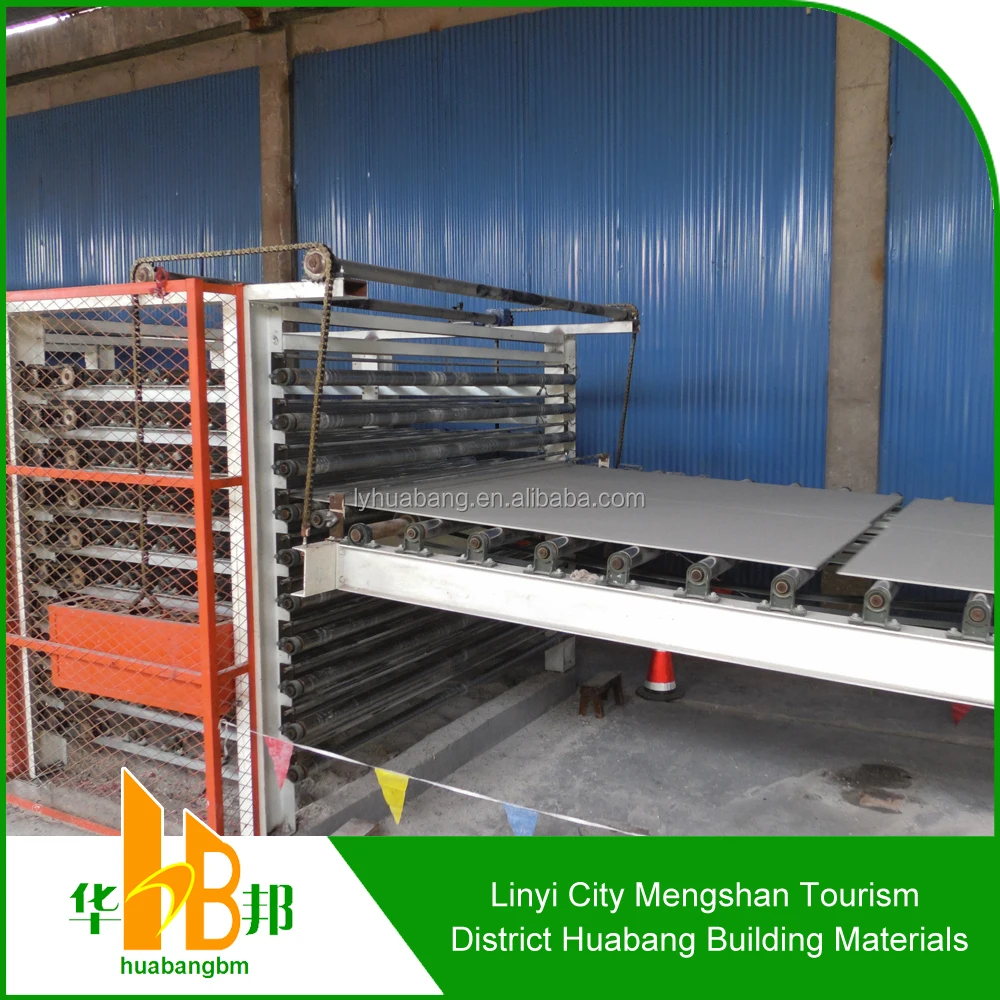

7.Dryer system
Low heat consumption, heat preservation is good
8. Finished products converying system
This part mainly includes fast outlet,sizing and stacking which are all equipped double.
9.Fast outlet system
Can achieve the equipment failure without stopping.
10.Sizing system
This part consists of transverse machine,storage roller,board colse folder and sizing device.
11.Stacking system
This part consists of two sealing machines,stackers.

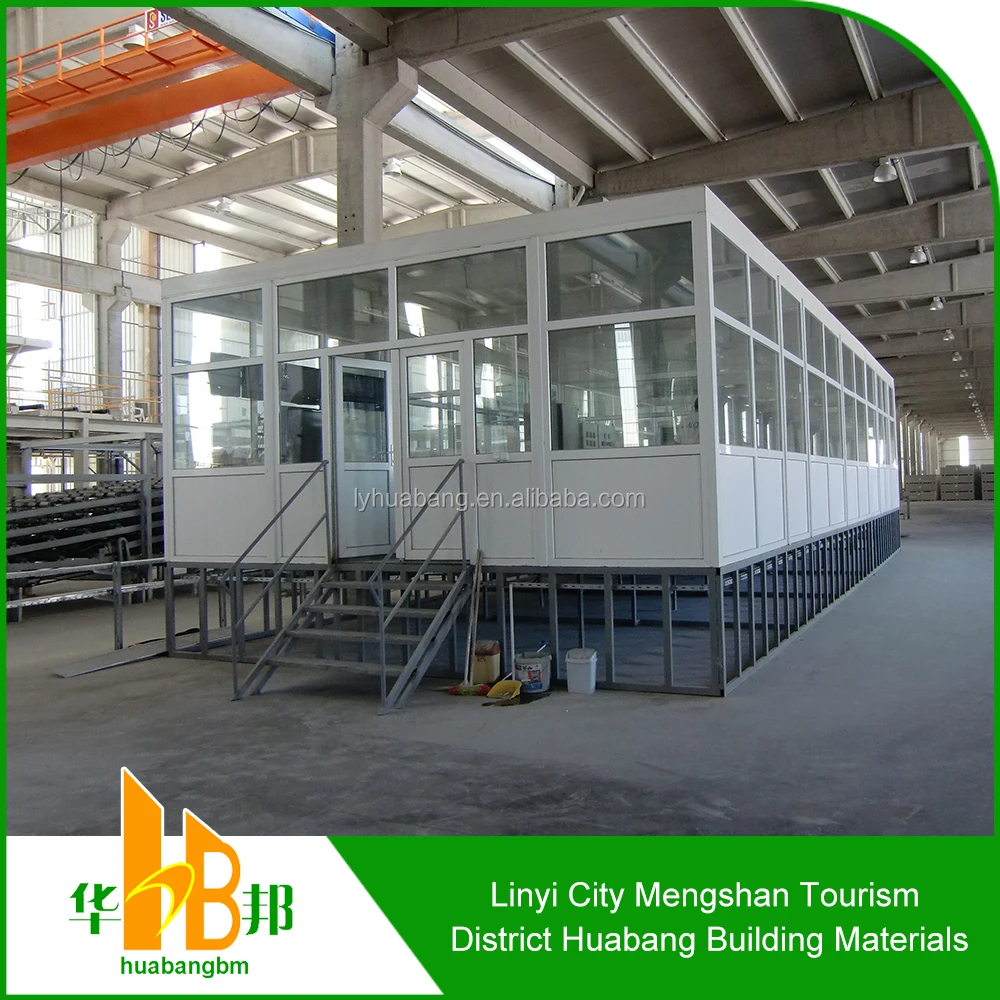

12.Control center system
Host part adopts RS VIEW as the monitoring software table to monitor the whole production process.
The general monitoring system displays the production process in front of operators and managers.
Packaging and Shipping
Above loading photos of gypsum board machine are for your reference:
1. | All the electrical parts will load in wooden case,and others will in nude packing or bulk etc. |
2. | And all the goods will load in 40HQ,if the boiler is over weight or oversize then will load in framework or bulk freighter. |
3. | And if you have any requirements about the packing,we will do it according to that. |
Company Profile
Our services
Guarantee:
3 years (except the easy worn parts such as bearings, electric buttons).
Installation and debugging:
2 to 4 months when the buyer prepare the installation and commission conditions.
Technology training:
Provide free training.
In order to guarantee the machine running, each year we will send engineer to check and development the technology with the buyer.
If the buyer can not run the machine well then we will send the production engineers to help the buyer to run the machine, and we can cooperate for long terms.
-
