Laboratory Cotton Yarn Spinning Machinery DW7040H

Product details
After-sales Service Provided:Engineers available to service machinery overseas;Spinning Method:Ring Spinning;
Place of Origin:Hong Kong;Type:Spinning Production Line;
Supply Ability:1000 Set/Sets per Year;Brand Name:FYI;
Application:Lab Ring Spinning Machine;Power supply:220V,50Hz;
Packaging Detail:Standard packaging;Power(W):1500W;
Certification:CE ISO;Payment Terms:L/C,T/T,Western Union;
Weight:320kg;Textile Testing Instrument:DREF Spinning machine;
Warranty:One Year;Design:Mini-type design,;
Production Capacity:99.9%;Automatic:Yes;
Diplay:PLC;Dimension(L*W*H):1200*800*1600mm;
Port:BY NEGOTIATION;Condition:New;

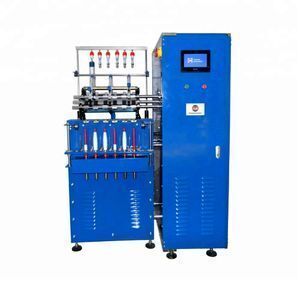

DW7040H Cotton Yarn Spinning Machinery



Application:



Cotton Yarn Spinning Machinery  is used to spin roving to be spun yarn through drafting and ring spinning. It’s the ideal system for teaching, researching, etc.





Features:



l          Use S/Z twist reversing;



l          High-efficiency imported frequency converter;



l          Drafting, spindle blade, flyer or moulding drive independently;



l          Mini-type design, easy to clean, set and maintain;



l          PLC + touch screen, easy to learn and operate;



Key Specification:



Suitable fiber type



Wool yarn,Cotton Yarn



Length of machinable fiber



Wool fiber, 55~90mm



Control mode



PLC & touch screen



Language



English



Density of yarn



6~99tex(6~100Ne)



Spindle gauge



75mm



Number of spindles



6



Ring diameter



53



Pressure mode



Pendulum arm



Upper roller diameter



Front roller 50mm, middle roller 50mm, back roller 50mm



Down roller diameter



Front roller 35mm, middle roller 35mm, back roller 35mm

Distance of rollersFrontbetween back: max. 230mm, manually-adjustable



Spindle length



205mm



Suitable twist



200~2000 (T/m)



Draft Range



Approx. 2-50



Draft Rangecontrol



Automatic



Twist



S or Z



Max speed of spindle



8000rpm
