API certification api 8c drill pipe center latch elevators for drilling

Product details
Port:China main port;Packaging Detail:Standard export package;
Type:all;Applicable Industries:Energy & Mining;
Model Number:all;Payment Terms:L/C,T/T,Western Union;
Supply Ability:30 Piece/Pieces per Month;

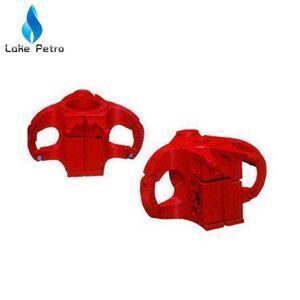

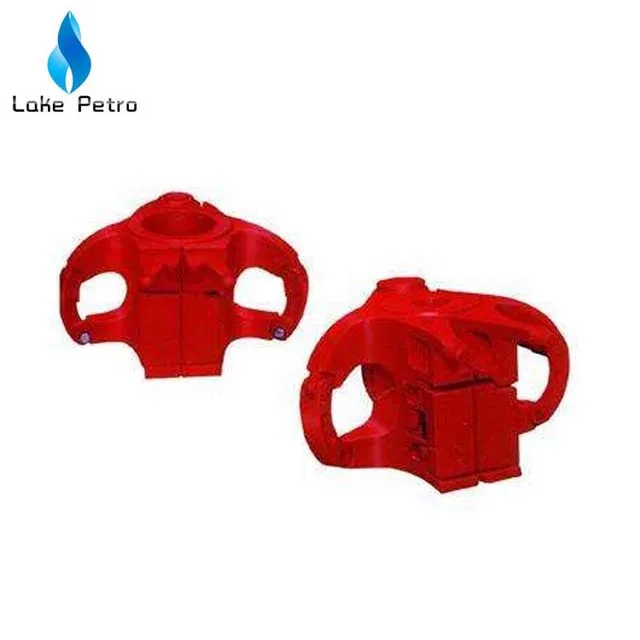

API certification api 8c drill pipe center latch elevators for drilling



Technical parameters



Model

Size(in)

Rated Capacity (short tons)

Remark

DDZ -100

2 3/8”-5”

100

MG

DDZ -150

2 3/8-5 1/2”

150

RG

DDZ -250

2 3/8”-51/2”

250

MGG

DDZ -350

3 1/2”-57/8

350

GG

DDZ -350TD

3 1/2”-5 7/8”

350

FOR TOP DRIVE

DDZ -500

3 1/2”-6 5/8”

500

HGG

DDZ -500TD

3 1/2”-6 5/8”

500

For Top Drive

DDZ -750

4-6 5/8”

750

For Top Drive





Product Description

 Elevator is a hinged mechanism that may be closed around drill pipe or other drill string components to facilitate lowering them into the wellbore or lifting them out of the wellbore. In the closed position, the elevator arms are latched together to form a load-bearing ring around the component. A shoulder or taper on the component to be lifted is larger in size than the inside diameter of the closed elevator. In the open position, the device splits roughly into two halves and may be swung away from the drill string component.

The DDZ type drill pipe elevator is a wellhead tool in the drilling and repairing of oil or gas well. It is easy and safe for handling 18-dregrees drill pipe, and of great advantage to prolong life of self-seal head of blowout presenter. It is designed according to API Spec 8A/8c for Drilling and Production Hoisting Equipment. It was design verification tested at more than two times the max. test load, and underwent ex-factory test at one and a half times the rated load.

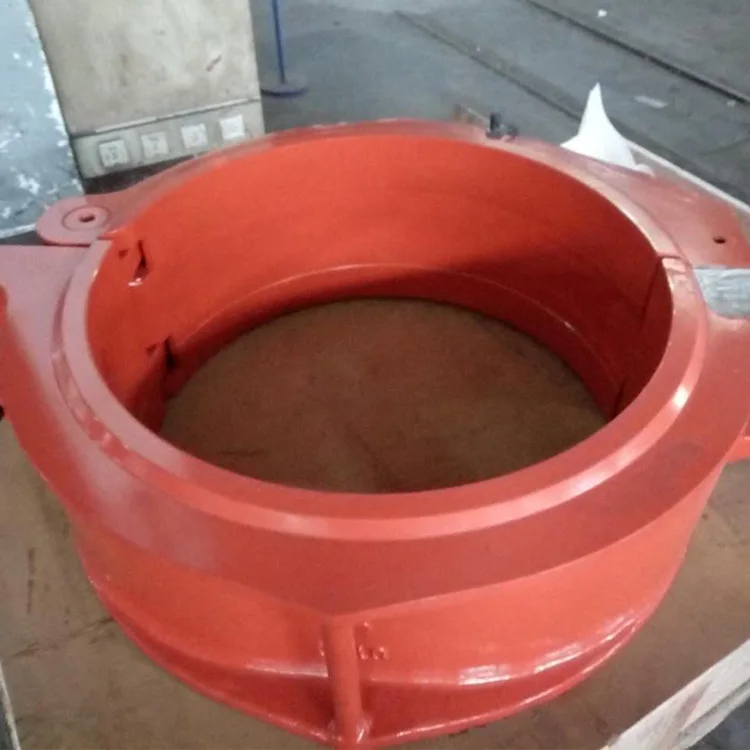

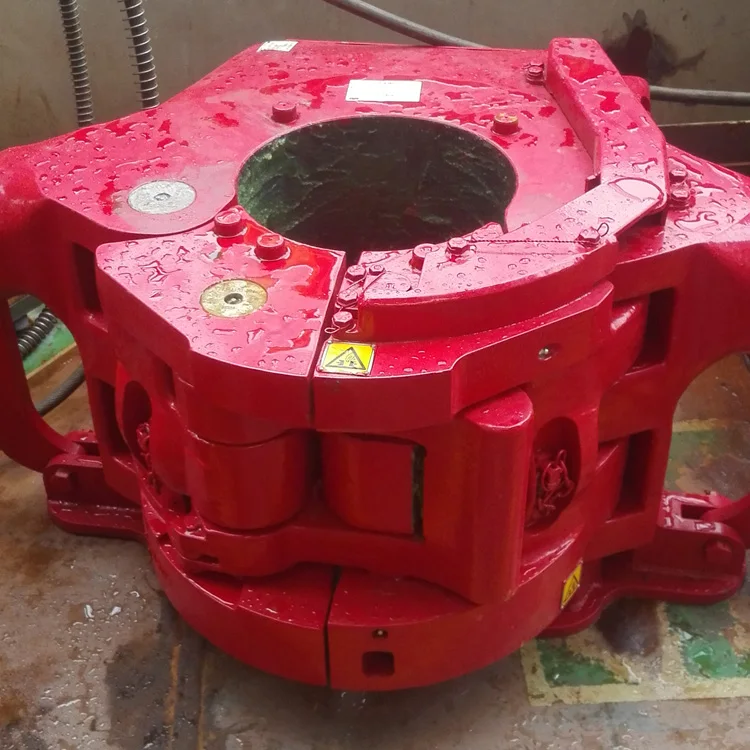

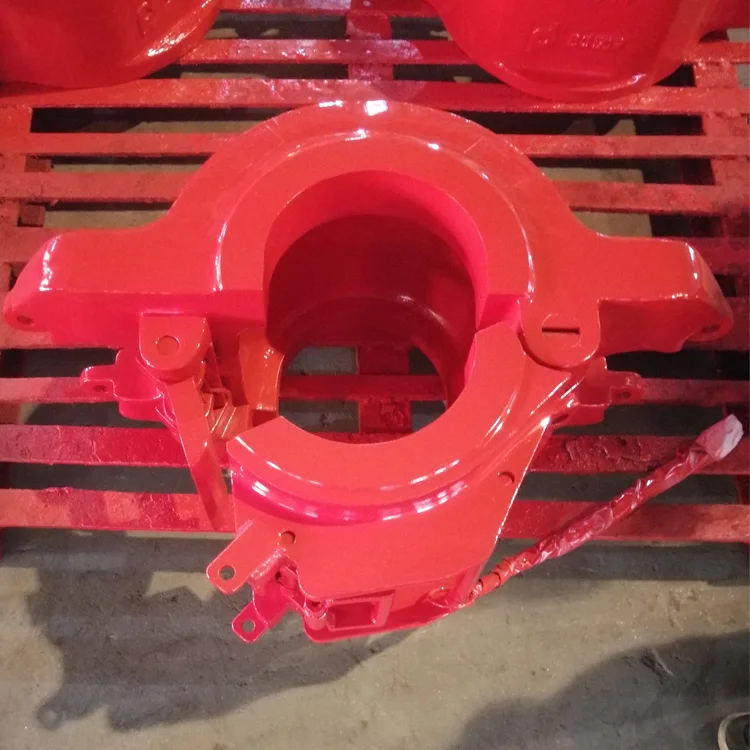

Detailed Images

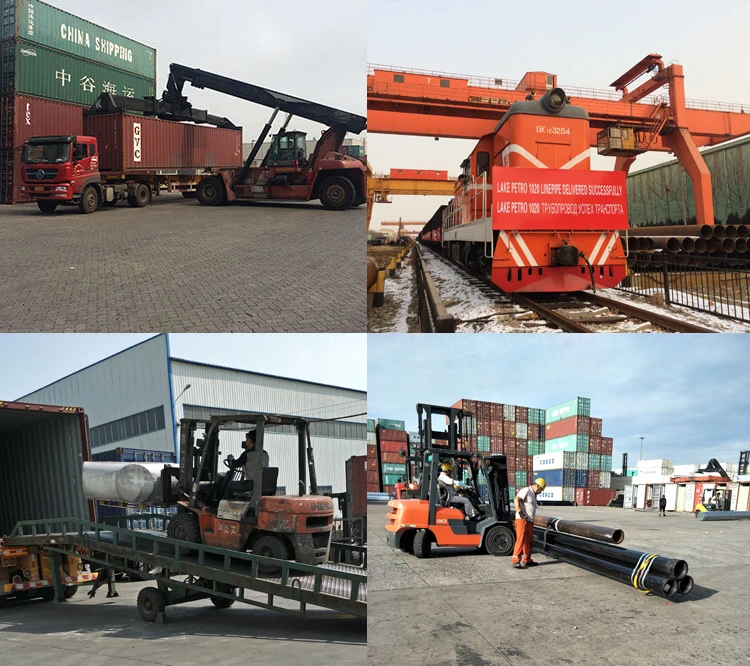

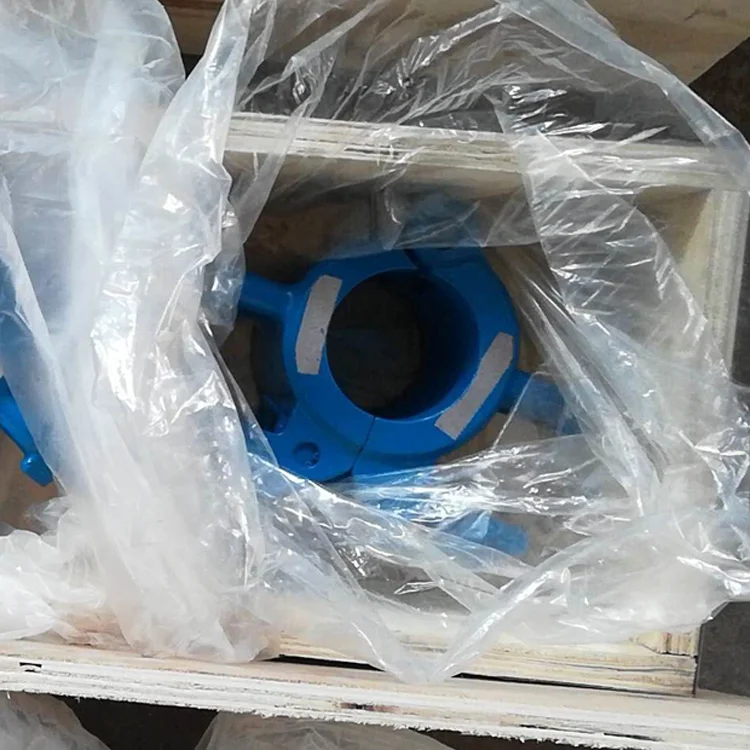

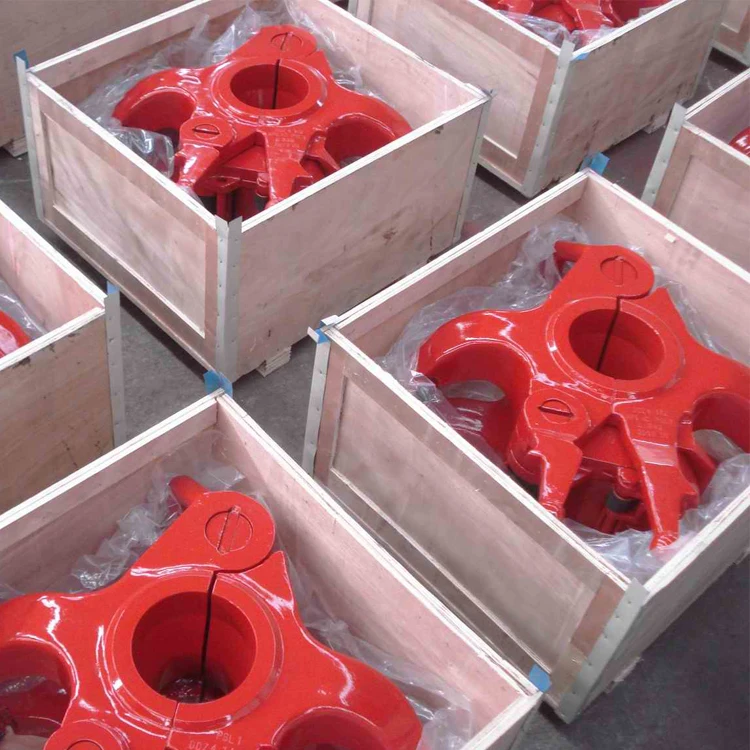

Packaging & Shipping







Related Products







Our Services

ALL PRODUCTS CAN BE INSPECTED BY THIRS PARTY LIKE BV, SGS,TUV
