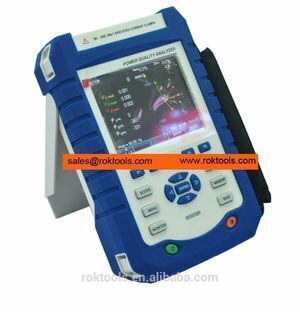

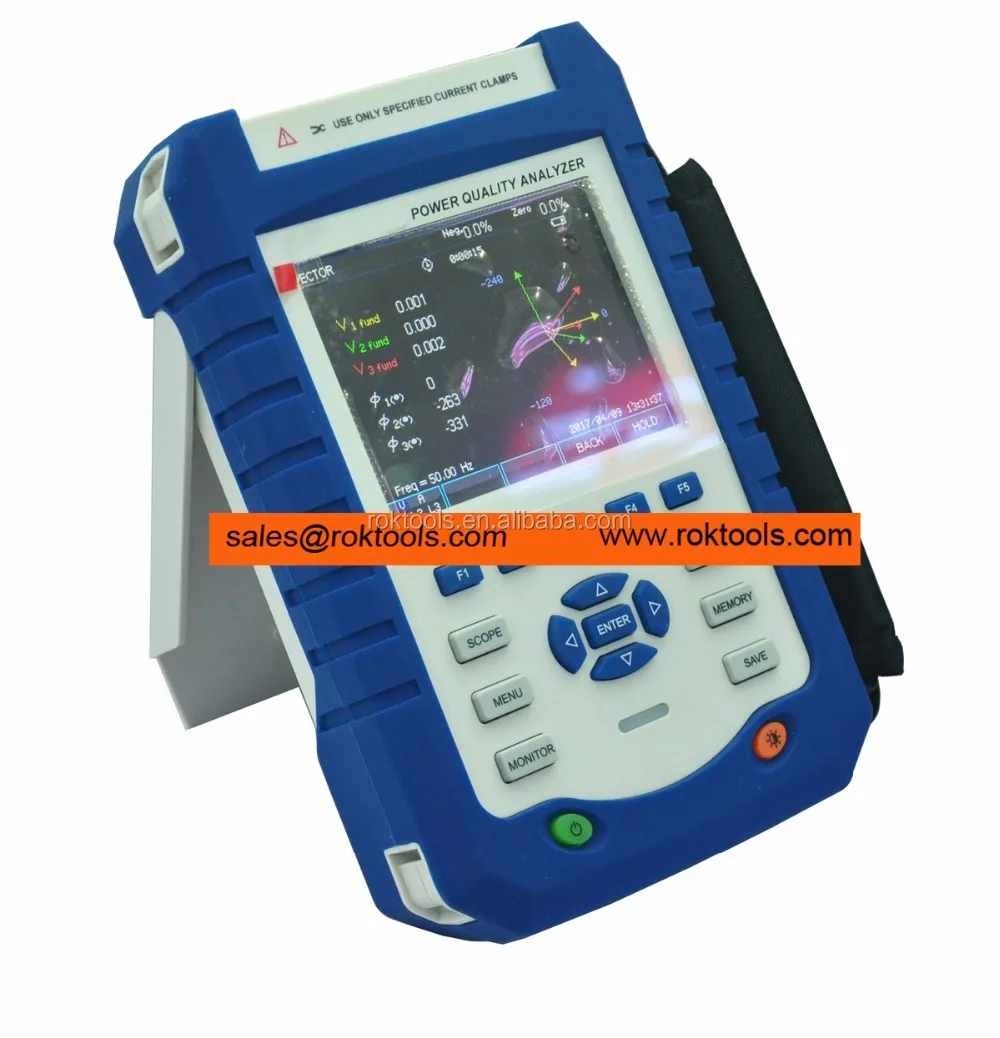

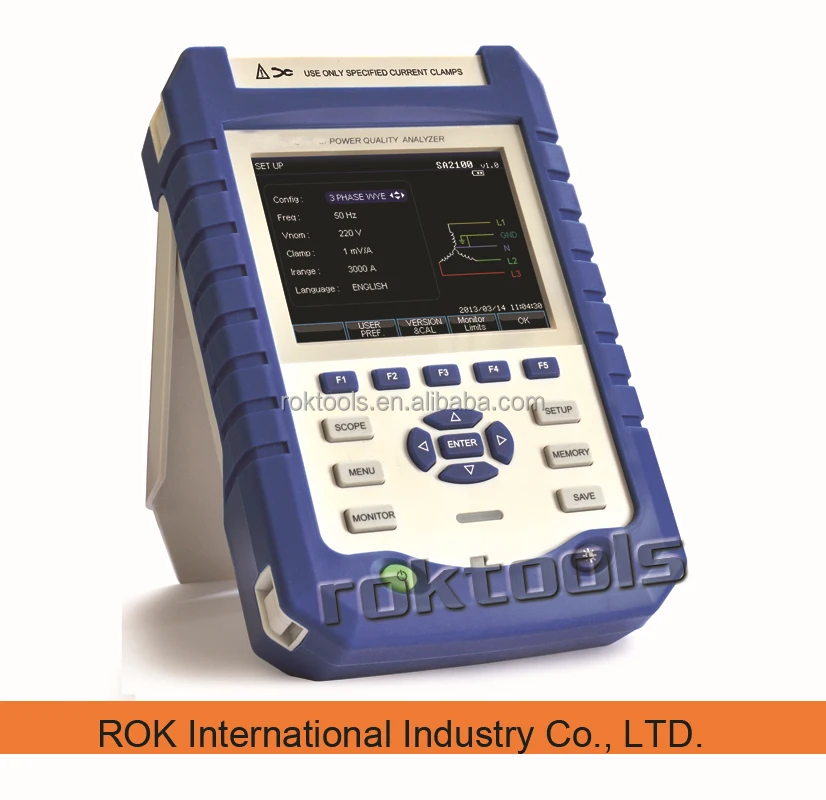

ROK Three Phase Power Quality Analyzer Harmonic Analyzer

Supplier: Shenzhen Rok Precision Instruments Co., Limited
Region: Guangdong, China
Contact: Mr Charles Tsao
Price: $1400.00 /set
Min. Order: 1 set

Click here to contact

Product details

Battery:	7.4V, 4.4Ah, > 7 hours working time;	Dimensions:	26217366mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Measuring Voltage Range:	1000;
Measuring Current Range:	5000A;	Operating Temperature:	0-50;
Display:	5.6 TFT LCD, 320*240;	Model Number:	PQAN-7610;
Supply Ability:	1000 Set/Sets per Month;	Packaging Detail:	plastic or wooden box packed Dimension & Weight:26217366mm, 1.6kg;
Place of Origin:	Guangdong China (Mainland);	Interface:	USB_HOST, LAN;
Power:	AC220V(1±10%), 50Hz(1±5%), ≤10VA;	Accuracy Class:	0.5%;
Dimension & Weight:	26217366mm, 1.6kg;	Frequency:	0 ~ 3500Hz;
Brand Name:	OEM;	Port:	Shenzhen, Shanghai;

Three Phase Power Quality Analyzer Harmonic analyzer

Features

Safety: CAT III 1000V / CAT IV 600V

Standards: IEC61000-4-30 (2008) S class, EN50160 (2007)

Easy operation to capture the power quality problem

Single-phase 2 W/Single-phase 3 W/ 3-phase 3 W/ 3-phase 4 W

Display: Run Chart, Bar Chart, Vector Graphic, Waveform, Event List, Readings.

8G Memory Card to make the long-term measuring data storage

Support USB port to connect to PC and analyze the data/screen shots copied by U-disk

Support LAN port to make the remote control available, transfer the measuring data

Specifications

	Measurement Range	Resolution	Accuracy
Voltage/Current/Frequency
Channel	3-phase line input + 1 neutral line input
Vrms(dc+ac)	1 ~ 1000Vrms	0.1Vrms	±5%
Vpk	1 ~ 1400Vpk	0.1Vpk	±5%
V(CF)	1.0 ~ >2.8	0.01	±5%
Arms	1~ 3000A	1A	±1% ± 5digits
Arms	1~ 300A	0.1A	±1% ± 5digits
Apk	1 ~ 4000Apk	1A	±1% ± 5digits
A(CF)	1 ~ 10	0.01	±5%
Frequency	42.5~57.5Hz(50Hz nominal)	0.01Hz	±0.01%
Frequency	51~69Hz(60Hz nominal)	0.01Hz	±0.01%
Dips & Swells
Vrms1/2	0 ~ 200% of nominal voltage	0.1Vrms	±1%
Arms1/2	1 ~ 3000A	1A	±1% ±5 counts
Arms1/2	1 ~ 300A	0.1A	±1% ±5 counts
Threshold levels	Programmable thresholds in percent of nominal voltage Event detection based upon ½ cycle rms voltages Captures Dips, Swells Interruptions and Rapid Voltage Changes
Duration	hhh,mm,ss,mmm	0.5 cycle	1 cycle
Harmonic
Harmonic Order	1 ~ 50
Inter-Harmonic Order	1 ~ 49
Voltage	0.0 ~ 100.0%	0.1%	±0.1% ± nx0.1%
Current	0.0 ~ 100.0%	0.1%	±0.1% ± nx0.1%
THD	0.0 ~ 100.0%	0.1%	±2.5%
DC Relative	0.0 ~ 100.0%	0.1%	±2%
Frequency	0 ~ 3500Hz	1Hz	1Hz
Phase	-360° ~ 0°	1°	± nx1.5°
Power And Energy
Active Power/Apparent Power/Reactive Power	1.0 ~ 20.00MW	0.1kW	±1.5±10 counts
Active Power/Apparent Power/Reactive Power	1.0 ~ 20.00MW	0.1kW	±1.5±10 counts
Energy	0.00kWh ~ 200GWh	10Wh	±1.5±10 counts
Power Factor	0 ~ 1	0.01	±0.03
Flicker
Pst(1min),Pst,Plt,PF5	0.00 ~ 20.00	0.01	±5%
Unbalance
Voltage	0.0 ~ 5.0%	0.1%	±0.5%
Current	0.0 ~ 20.0%	0.1%	±1%
Voltage Phase Angle	-360° ~ 0°	1°	±2digits
Current Phase Angle	-360° ~ 0°	1°	±5digits
Voltage Transient
Vpk	±6000Vpk	1V	±15%
Vrms	10 ~ 1000Vrms	1V	±2.5%
Min. Tested Time	50us
Sampling Rate	20kS/s
Inrush Current
Arms(AC+DC)	0~3000Arms	0.1	±1% ± 5digits
Inrush Duration	6s ~ 32min selectable	10ms	±20ms
Logger
Recording	Parameter, duration time and time interval can be set by user, which can be export on PC
Memory	8G
Max. recording time	1 year
System Monitor
Parameters	Vrms,Arms,Harmonic Volts,THD Volts,Plt,Vrms1/2,Arms1/2,Vneg,Hz,dips and swells, unbalance
Record Time	2h ~ 7days
Record Event Number	>10000
Limits	According EN50160 or customer definable
