High accuracy 3 phase analyzer power factor analysis meter for motor

Supplier: Henan Compere Smart Technology Co., Ltd.
Region: Henan, China
Contact: Mr Allen Li
Price: $600.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Measuring Current Range:	0~6A;	Model Number:	KPM75-R/K;
Supply Ability:	2000 Piece/Pieces per Month;	Place of Origin:	Henan China;
Operating Temperature:	-25℃ ~ +70℃;	Dimensions:	504026;
Box material:	ABS;	Name:	KPM75 Power Quality Analyser;
Certificate:	ISO9001,CE;	Rated Current:	5A;
Type:	Three Phase Digital Energy Meter;	Port:	Qingdao/Tianjin/Shanghai/Shenzhen,etc.;
Packaging Detail:	Export type carton packing.;	Brand Name:	Compere;
Accuracy Class:	0.2%;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Frequency:	50HZ/60HZ;	Measuring Voltage Range:	0~500KV;
Delivery Detail:	3-10 working days after order placed.;	Standard:	IEC62053-21;
Communication:	RS485 Port MODBUS-RTU Protocol;	Display:	LCD Display;
Storage Temperature:	-30℃ ~ +75℃;

Product application

Industrial area

Residence

Office building

Shopping Mall

Campus

Hospital

Weather Station

Railway & Station

Solar system

Power grid

Product Description

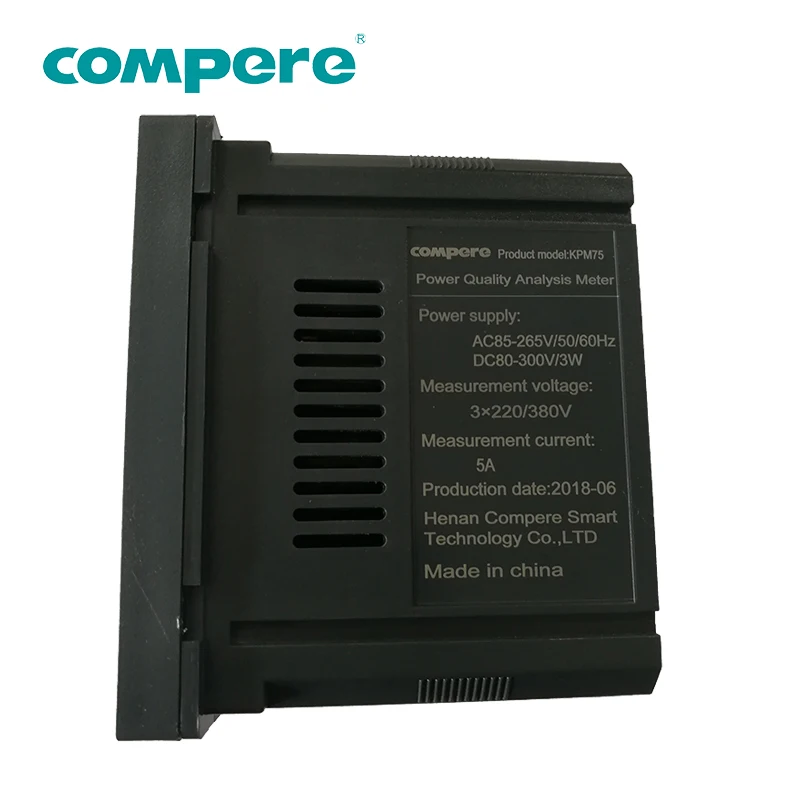

The KPM75 is a new generation of high-end watt meter power analyzer that follow international power quality standards and monitor all power quality parameters such as flicker, short interruptions in recorded voltage, and harmonic up to 63rd with power data Statistics, IO signal control alarm, communication and other functions. Large graphic LCD display, pluggable function module design, widely used in key power applications, it is the ideal choice to monitor the distribution operation efficiency.

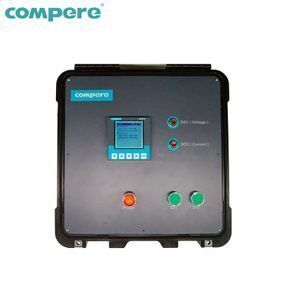

This KPM75 portable power quality analyzer integrates the KPM75RK meter with ABS material box for easier transportation and wiring with lower cost.

Power quality analyzer Application Case:

• Measure, monitor and control power distribution system parameters

• Collect energy consumption data that cost center analysis needs

• Power quality analysis(Harmonic, voltage interruption, flicker and so on)

• Signal control alarm

Technical parameters of portable power quality analyzer

Technical Parameters - KPM75 Portable three phase smart harmonic power energy quality analyzer meter with digital input and output
Accuracy Class		Voltage: 0.2; Current: 0.2; Frequency: 0.002 Hz; Power Factor: 1.0
		Active Power: 0.5; Reactive Power: 2.0
		Active Energy: 0.2S; Reactive Energy: 2.0
Input	Rated Value	Voltage: 57.7/100V, 220/380V,380/660V Current: 1A(0~1.2A), 5A (0~6A)
	Overload	Voltage: Sustained Overload: 1.2 times of the rated value
		Momentary Overload: 2 times of the rated value, allows 1s
		Current: Sustained Overload: 1.2 times of the rated value
		Momentary Overload: 20 times of the rated value, allows 1s
	Frequency	45-60Hz
Functional Module	Pulse Output	1
Functional Module	Interface	1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps Optional Profibus-DP protocol, 9600~12Mbps
Power Supply	Working Range	AC: 85-265V; DC: 80-300V
Power Supply	Consumption	< 3VA
Working Condition	Temperature	Operating: -25°C~+70°C. Storage: -30°C~ +75°C
	Humidity	5%~95% No condensation
	Altitude	<4000m
Dimensions:		96×96×88mm
