stock sale JRT40 portable line boring machine

Click here to contact

Product details

Place of Origin:	Anhui China;	Condition:	New;
working line 6:	petrochemical;	Dimension(LWH):	350x272x725 Mm;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;	Key Selling Points:	Easy to Operate;
Motor Power (kw):	1.5;	Power(W):	1.5KW;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	portable boring machine:	line boring machine;
Certification:	CE;	Voltage:	110V/220V/380V;
Selling Units:	Single item;	Brand Name:	WMT;
working line 3:	wind power;	working line 4:	steel industrial;
Single gross weight:	110 KG;	CNC or Not:	Normal;
Logo printing:	OEM service;	Package Type:	The portable boring machine JRT40 is packed into plywood case, suitable for ocean delivery.;
Production Capacity:	50 Sets / Month;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight:	100kg;	Single package size:	75X65X55 cm;
Warranty:	1 Year;	working line 5:	hydro elctric power;

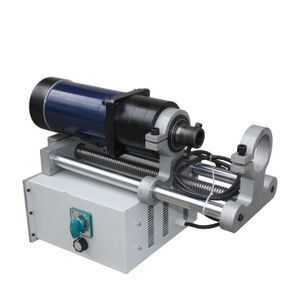

Line boring machine JRT40

Portable boring machine JRT40

Features:

Modular components make setup quick and easy

Flexible and high quality design, aluminum alloy frame make the machine portable

Optional facer tool make the machine more versabile

Spherical bearing mounts system allow quick setup

Gear box allow manual and automatic feed

Drive power provide by a brushless DC motor,powerful and stable

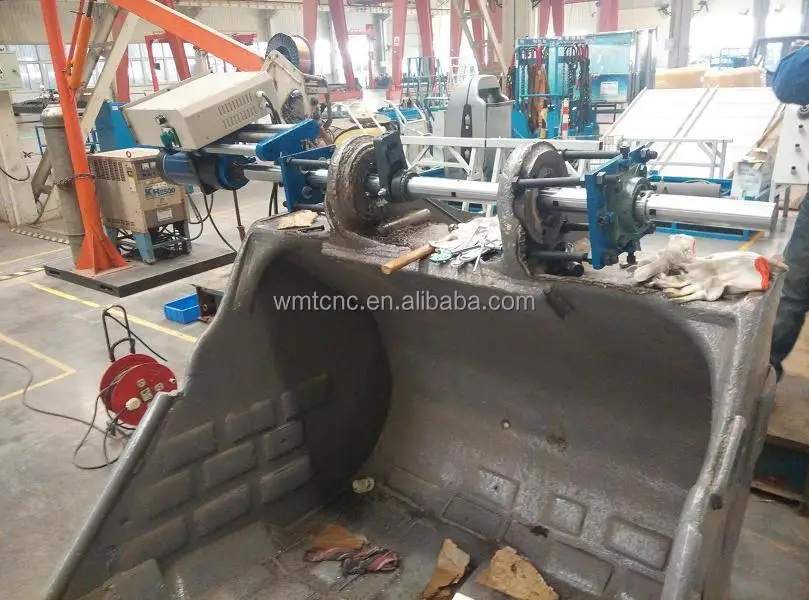

Could use on repairing the inner wall of the pipes,crane rotary holes,stern shaft holes and rudder holes and so on.

Item	JRT40	JRT60	JRT90
Boring bar dia.and length	dia.40X1500mm	dia.60X2000mm	dia.90X2000mm
Boring dia.range	dia.45-200mm	dia.65-360mm	dia.100-400mm
Facing dia.	dia. 50-260	dai.70-400,dai.300-700	dai.100-450mm ,dia.300-1000mm
Power unit	1.2KW	Servo motor 1.5KW	Hydraulic motor or servo motor 3kw
Boring bar rotate speed variable	0-87rpm	0-70rpm	0-57rpm
Axial feed per revolution variable	0-0.6mm/r	0.05-0.43mm/r	0-0.6mm/r
Axial feed travel	390mm	500mm	500mm
Machining hole face roughness	RA3.2	RA1.6	RA1.6
Machining hole roundness tolerance	≤0.04mm	≤0.04mm	≤0.05mm
