Professional Medical CBD Oil Extraction Machine

Product details
Applicable Industries:Distillation;Operation Temperature:Up to 200℃;
Type:Extractor;After-sales Service Provided:Engineers available to service machinery overseas;
Application:Liquid;Warranty:1 Year;
Certificate:CE , ISO;Place of Origin:China;
Motor power:120w;Power source:electric;
Model Number:Professional Medical Short Path CBD Oil Extraction Machine;Supply Ability:500 Piece/Pieces per Month Professional Medical Short Path CBD Oil Extraction Machine;
Material:Borosilicate 3.3 glass;Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;
Brand Name:Lab1st;Application:distillation;
Packaging Detail:agitated thin film evaporator will be carefully packed in wooden case. can do customized package;Port:Shanghai;
After-sales Service Provided:Video technical support;Recycle receiving flask:2L;
Distillate receiving flask:2L;

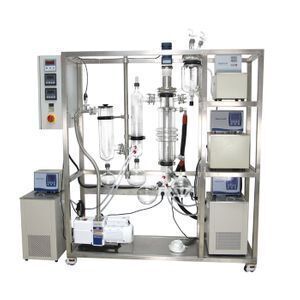

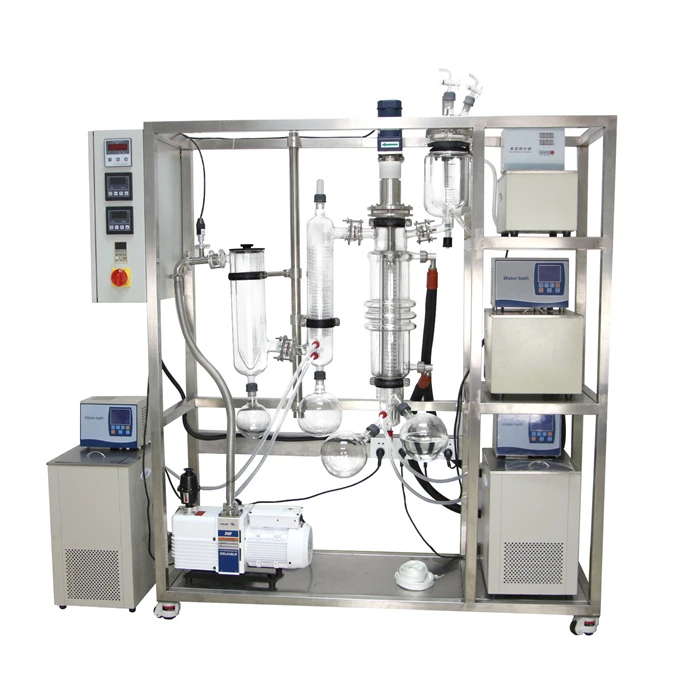

Professional Medical Short Path CBD Oil Extraction Machine



Welcome to Lab1st



Preferable alternative to short path distillation kits: much shorter residence time, lower processing temperature, capable of continuous operation, and available as a plug-and-play turnkey solution.

LAB1ST Scientific is now offering turnkey packages for wiped film molecular distillation units, including the evaporator, vacuum pump, heaters, chillers and necessary feeding/receiving equipments. The wiped film molecular distillation unit is superior than traditional short path distillation kit by shorter residence time, lower separation temperature, capability of continuous and unattended operation. The units are available in various sizes (from 60mm diameter to 200mm or more), with processing speed starting from 500g/hour.



Working Principle

 Say goodbye to traditional  boiling point distillation



Molecular distillation is a special liquid-liquid separation technology, which is different from the traditional distillation by boiling point difference separation principle, but by different substances molecular movement of the average free path difference to achieve separation.

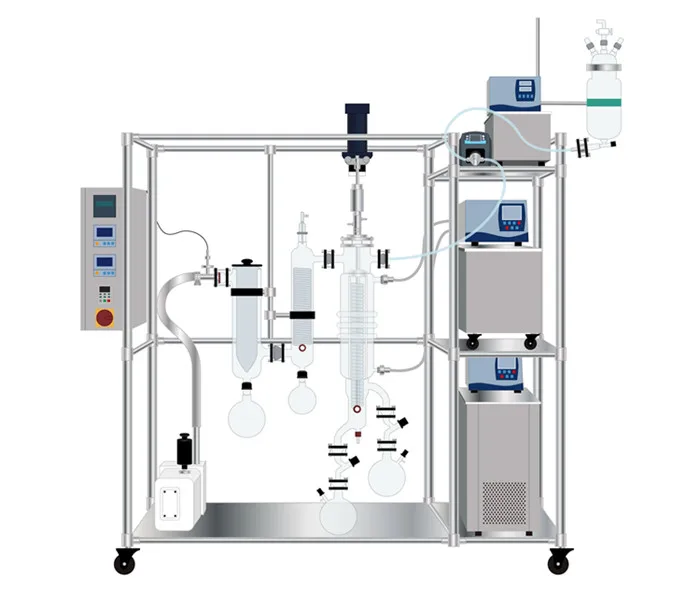

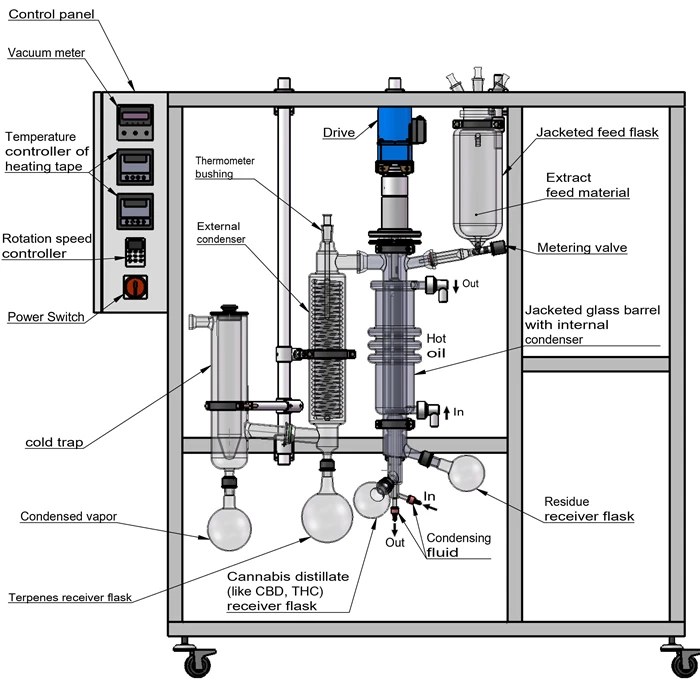

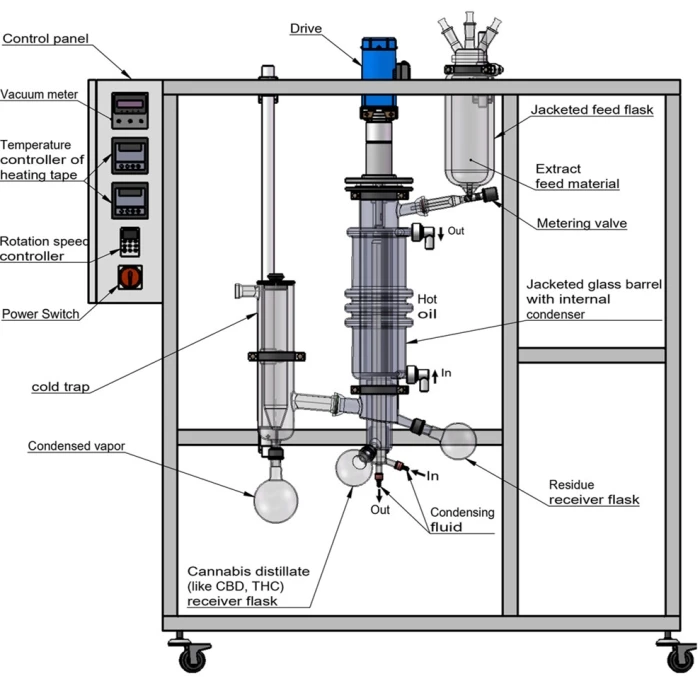

Technical Drawing

Different professional design solutions for different needs



1.Standard Molecular Distillation











2. Molecular Distillation with  Terpenes Condenser





3. Molecular Distillation with  Top Configuration





Product Feactures

 Meticulous design makes the entire work process simple and efficient



  • All Borosilicate 3.3 glass design for a perfect view on the separation process.
  • Short residence time(separation is finished in seconds, instead of hours.).
  • The very low operating pressure ensure very low distillation temperature  and therefore a very gentle distillation is possible.
  • Various size options(60mm, 80mm,100mm,150mm) for different throughput.
  • Turnkey package which is plug-and-play, technical supports available.
  • The system can be upgraded for continuous distillation process.
  • Industrial grade(>=200mm) products are available upon request.













Optimized designs which make us different



We provide 5 options here, you can according to your own expectations on the system (yield, purity, processing protocol, etc), so they pick up their own upgrades from the following options:



Option1:Additional terpenes condenser between wiping barrel and cold trap
Option2:Continuous and automated feeding vessel with one gear pump
Option3:Continuous receiving flask
Option4:Dewer Style cold trap transforming to cooling coil condenser
Option5:Diffusion pump can get high vacuum





Specifications

According to your expected yield to choose one here







Supporting Equipment

 We provide all supporting equipment, this is a turnkey system





Main Accessories





Related Products

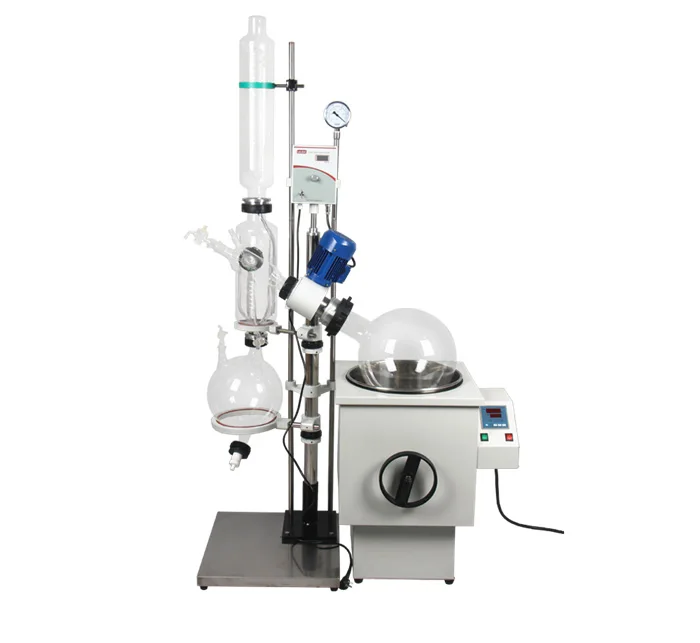

 Professional Rotary Evaporator

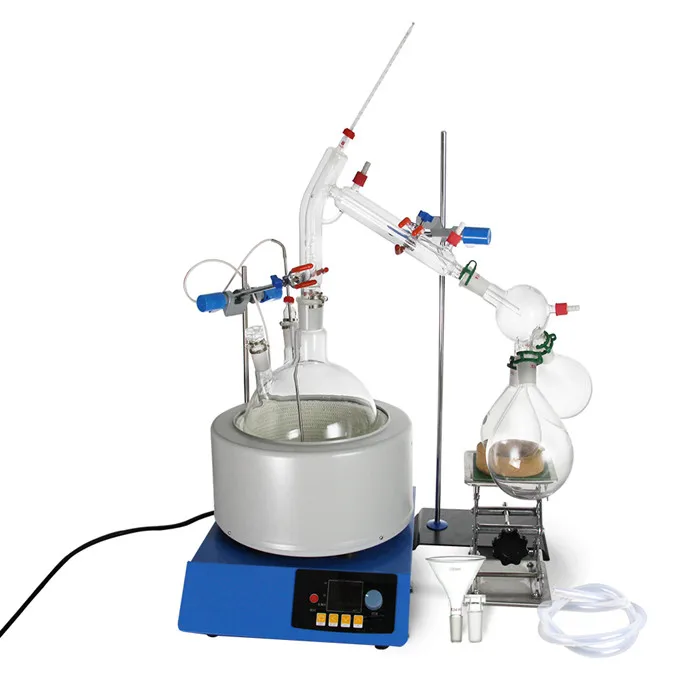

              Short Path Distillation System

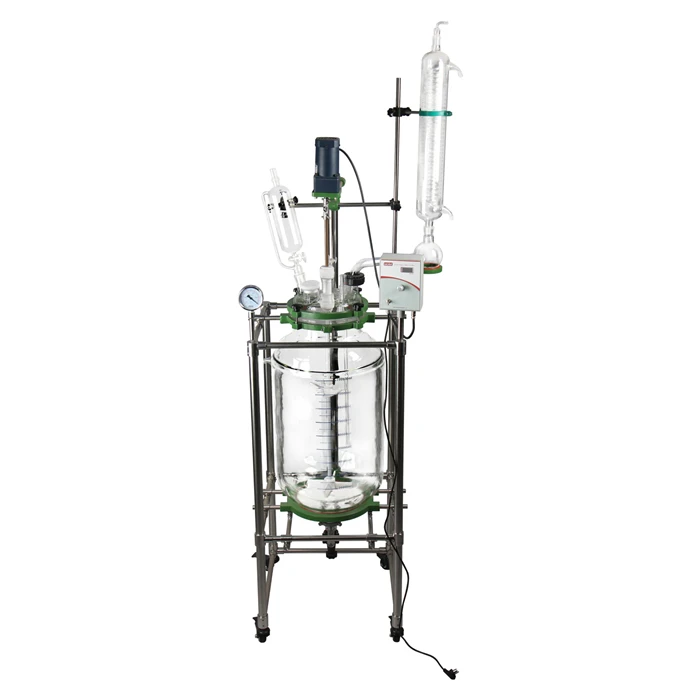

Jacketed Glass Reactor





Packing & Delivery

1.Our wooden box will not be heavy, but can protect all parts, the shipping cost will be better for you.
2.it is flexiable and can be customized! our wooden boxes are based on our customer requirements, product weights and size.





Our factory

Labfirst Scientific Instruments Co.,Ltd | Shanghai, China


Labfirst Scientific (LAB1ST) was founded and based in Shanghai, specializing in the manufacturing and sales of glass-related equipments from lab scale to production scale. We work hard to provide high quality yet low cost products to our customers in universities, research labs and production facilities from all over the world.
All the glass-related equipments (glass reactors, rotary evaporators, thermo-regulators) are manufactured in our production facility in Shanghai. That helps us keep constant control over product quality and allows us to store a significant inventory of products. (Most of our standard products are in stock and ready to ship.) Mini 2l rotary evaporator flask for pyrolysis
With more than 20 years of experience on glass blowing, we provide a comprehensive range of products from lab glassware to industry-grade glass reactors (up to 200L) and evaporators (up to 50L). With the help of our experienced scientific glassblowers, we are able to quickly build customized glassware and prototype equipments, based on your sketch or pictures.
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.
The following pictures show the art of fire and glass in our workshop.
