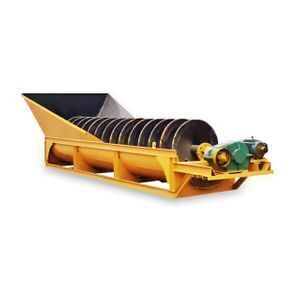

Mini Spiral Washer Equipment Screw Rock River Stone Silica Sand Washing Machine Price

Supplier: Henan Xingyang Mining Machinery Manufactory
Region: Henan, China
Contact: Mr Andy Zhang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO;	Color:	Clients' Request;
Place of Origin:	Henan China;	Supply Ability:	100 Set/Sets per Month;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Port:	qingdao,tianjin;
Warranty:	12;	Application:	Sand Washing;
Dimension(LWH):	5340x680x1480;	Weight:	2;
Condition:	New;	Capacity(t/h):	5-10;
After-sales Service Provided:	Engineers available to service machinery overseas;	Motor Type:	AC Motor;
Spare parts supply:	Lifelong Provide;	Brand Name:	XKJ;
Power(W):	1.1;	Packaging Detail:	standard container or as customized;

1.We are a leading manufacturer specialized in making spiral sand washer.
2.We work closely with our customers to fulfill their specific needs.
3.Specialized in the fabrication of these machines for 30 years.

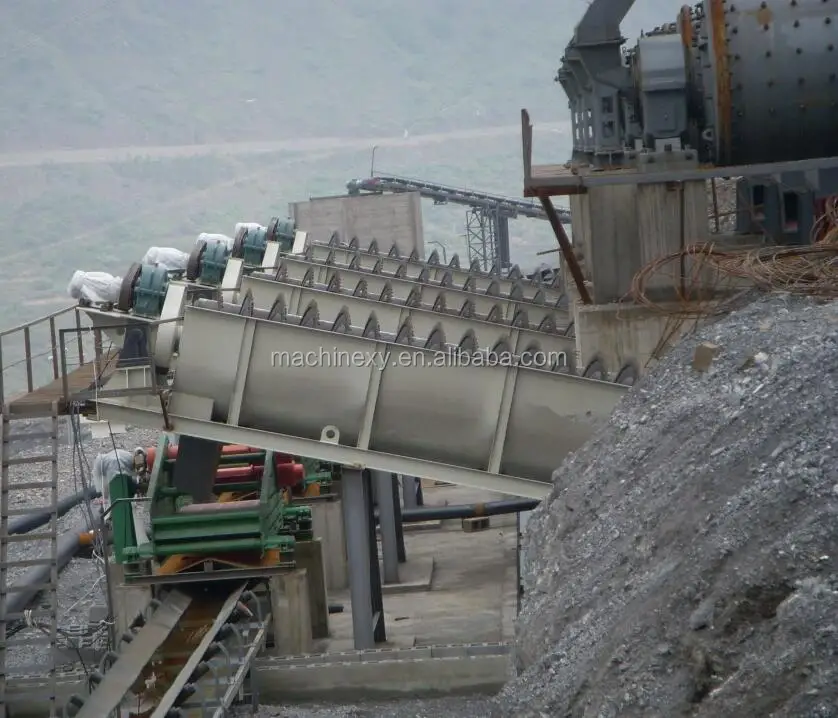

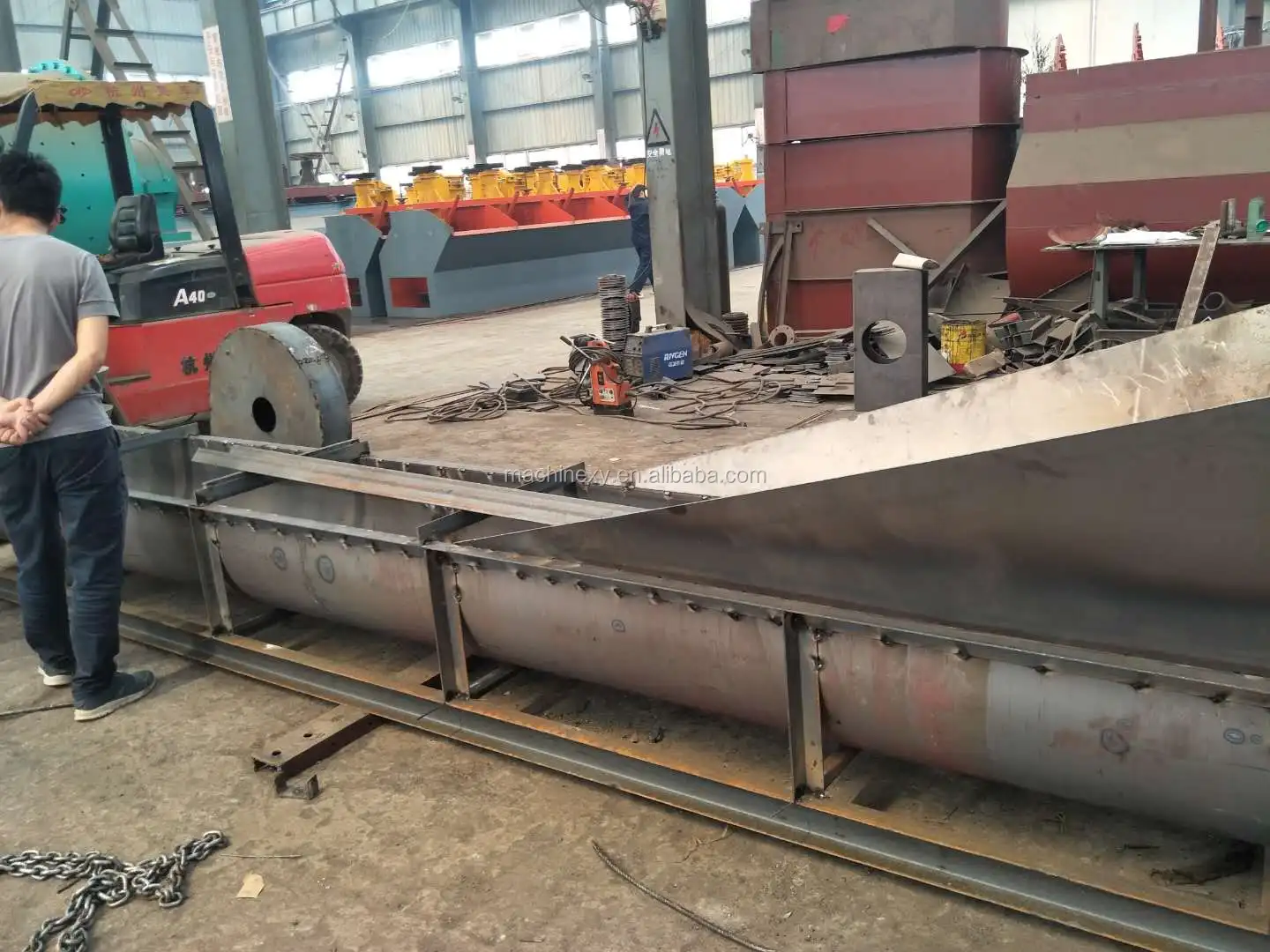

Work site

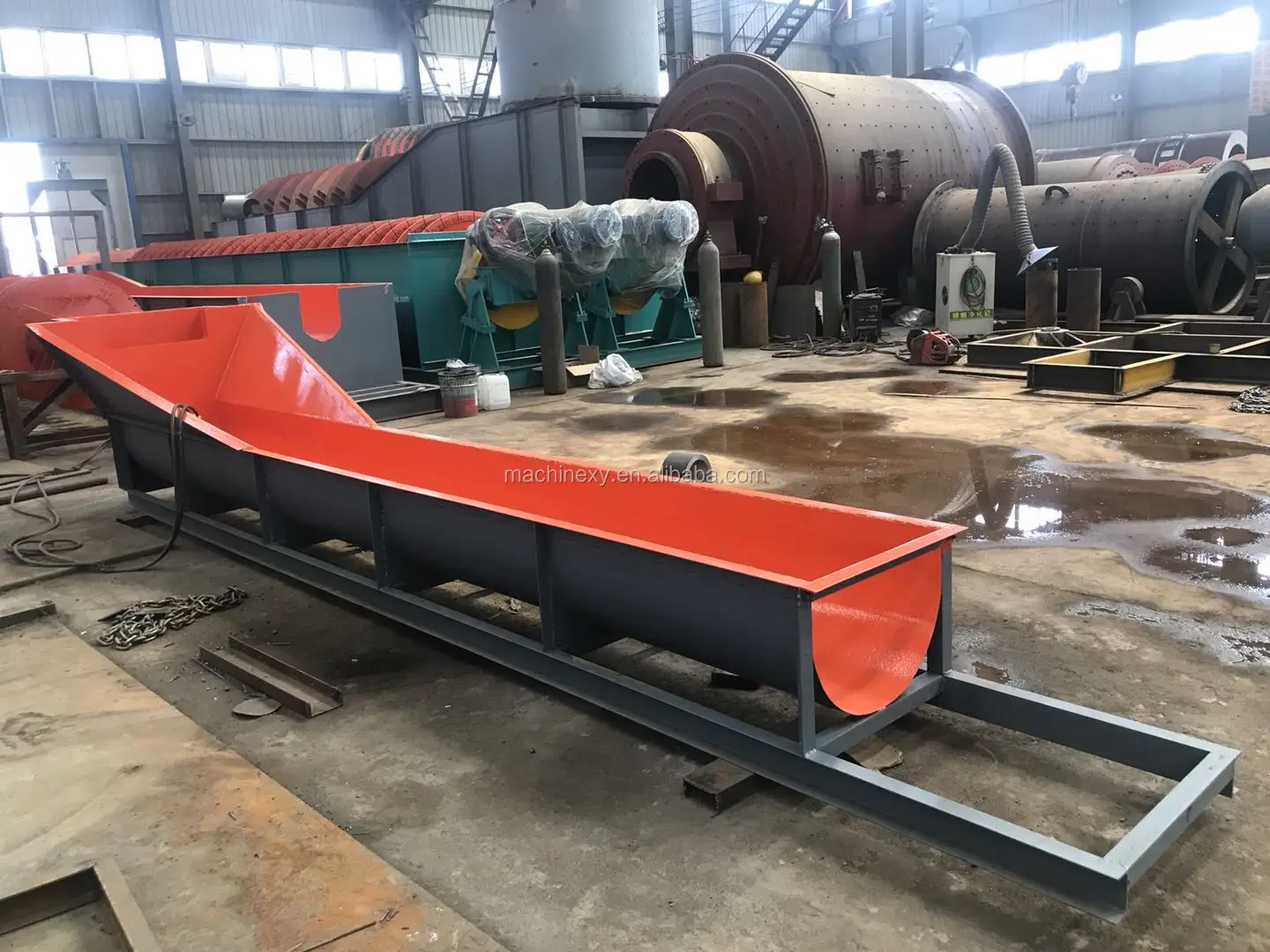

Product Description

Features
1. Long spiral body and good sealing design.
2. Simple structure, powerful treatment capacity.
3. Easy to maintain and replace used parts.

Brief introduction
Sand washing equipment is used to remove the dust and stone powder in the sand produced by sand making machine, it also can do sand-selecting work or the similar process. The machine aims to improve the quality and grade of the sand.

Application
Screw classifier can effectively seperate the mud among the material and clean the coal and sand. The materials are conveyed to the designated positon while cleaning and drying as the sprial stirs. spiral sand washer is well-known for its strict triple sealing system, which guarantees the stability when pocessing.

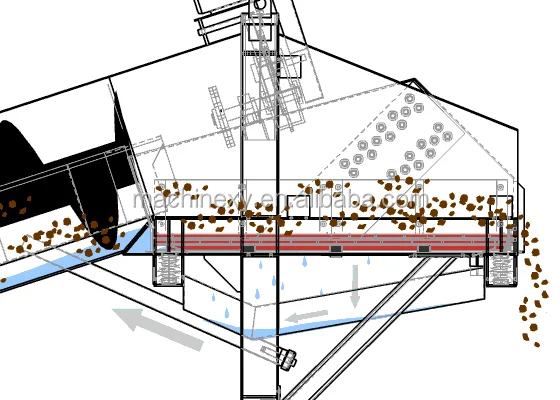

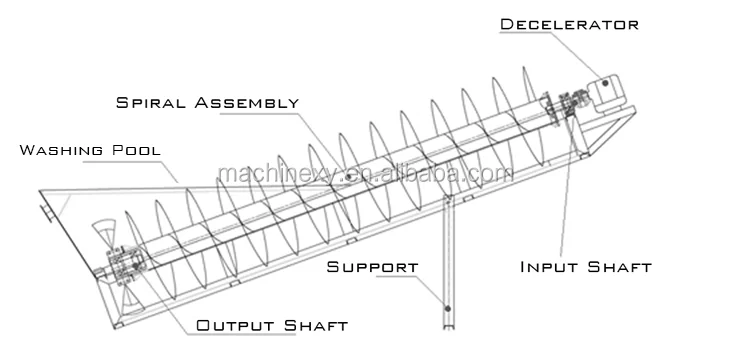

Work principle
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.

Performance Paremeters

Model	Spiral diameter (mm)	Feed size (mm)	Water consumption (m3/h)	Capacity (t/h)	Power (kw)	Dimension (mm)	Weight(T)
XL-508	508	<10	6~60	20	5.5	800023431430	2.67
XL-610	610	<10	6~63	40-50	7.5	800020501400	3.80
XL-762	762	<10	9~63	50-75	11	854526503862	5.23
XL-915	915	<10	10-80	100	11	850028103600	6.27
2XL-915	915	<10	20~160	200	2*11	842037653960	11.11
XL-1115	1115	<10	20~150	175	15	1097039454720	10.18
2X1115	1115	<10	40~30	350	2×15	1097052504720	17.94

Customers' Visit

Negotiation

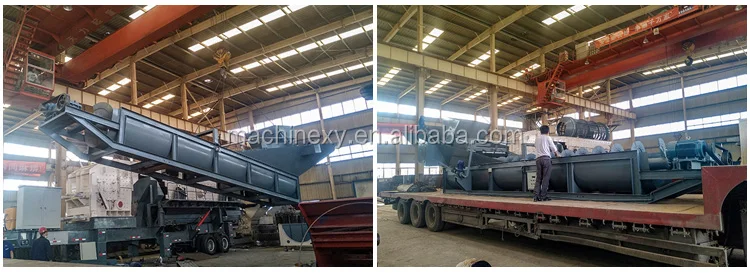

Packaging & Shipping

Standard export packing, Spare parts in wooden case, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client, competitive price, secure transportation.

Our Services

-Pre-sale services
Based on the clients’ request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.
-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients’ request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
-After-sale services
Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.

Company Information

Established in 1956, Henan Xingkuang Machinery Co., Ltd.is a professional manufacturer and exporter that is concerned with the design, development and production of mineral processing equipment. We are located in Henan province xingyang city, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Enterprises adhere to the implementation of entrepreneurial talent , science and technology, quality in setting development strategy, according to domestic and international market situation, based on the original mineral processing equipment ( crusher, ball mill , flotation machine, magnetic separator , dryer , etc. ) , actively the introduction of advanced high-tech , research and development of a series of energy-saving ball mill , MQG ball mill, flotation machine series , stirred tank , pellet equipment ( Run mill , rotary kiln, balling plate , cooler, coal mill ) and magnesium production line ( zinc oxide production line, limestone lines ) and other products with the leading domestic level , some products have reached the international advanced level.
We have over 365 employees. Our well-equipment facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Indonesia, Kenney, Tanzania, Peru, Philippine, India and so on.

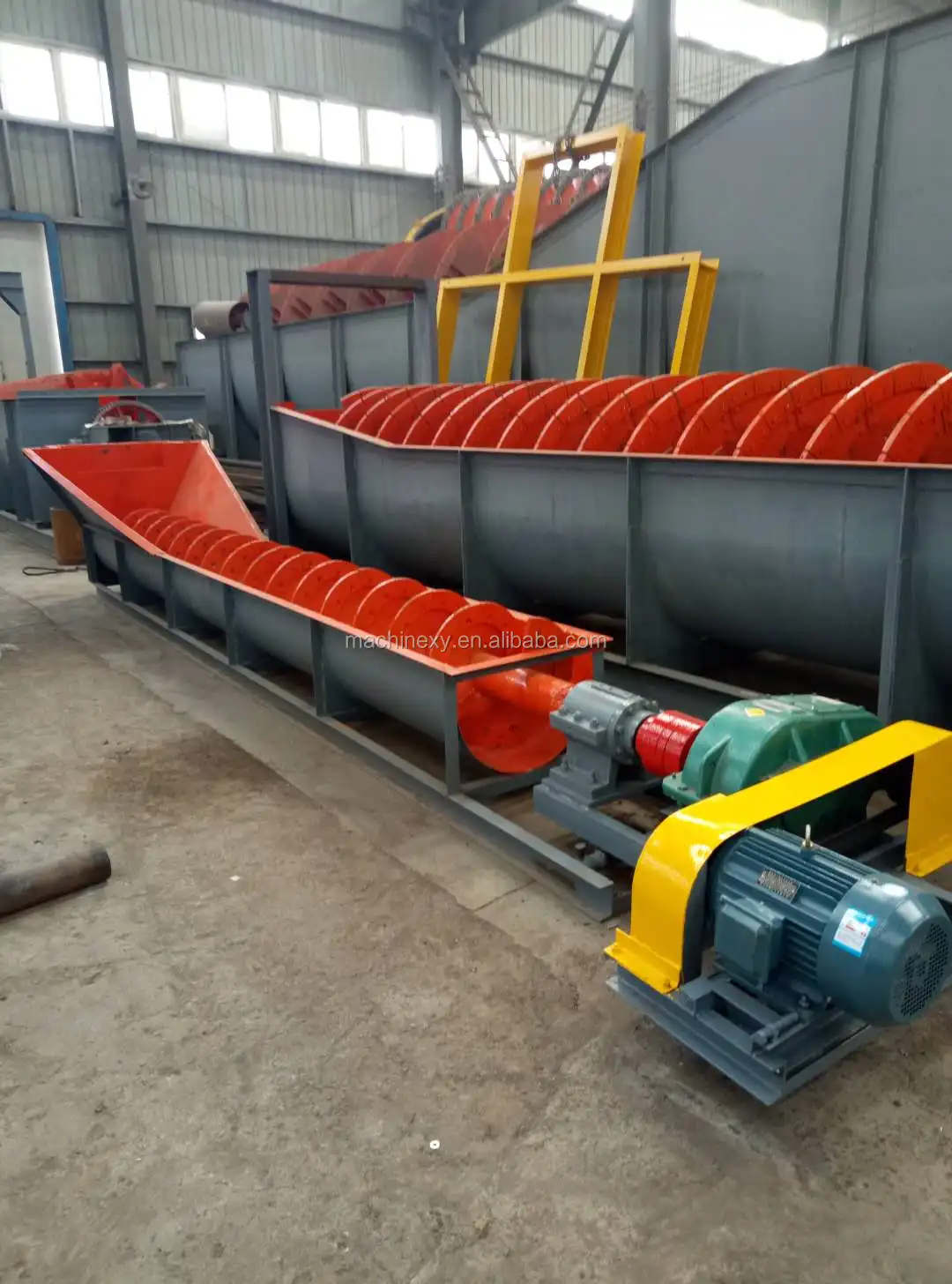

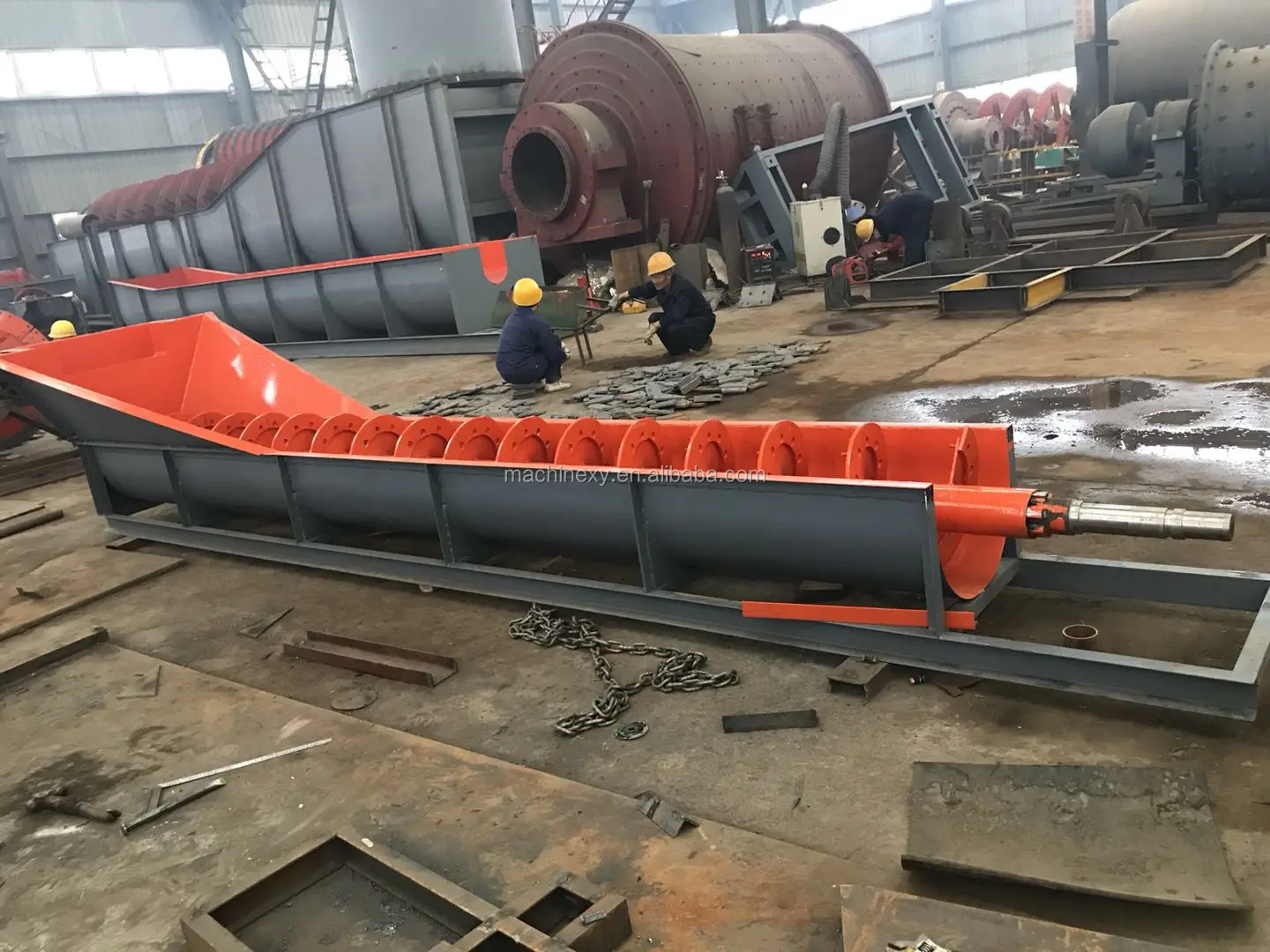

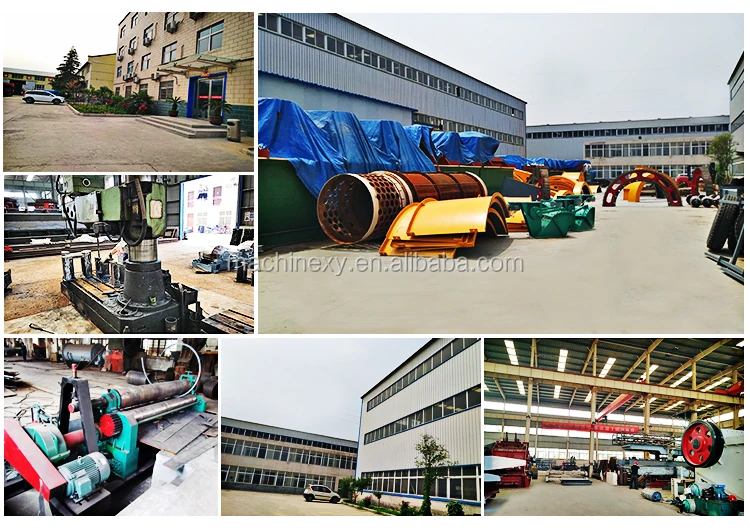

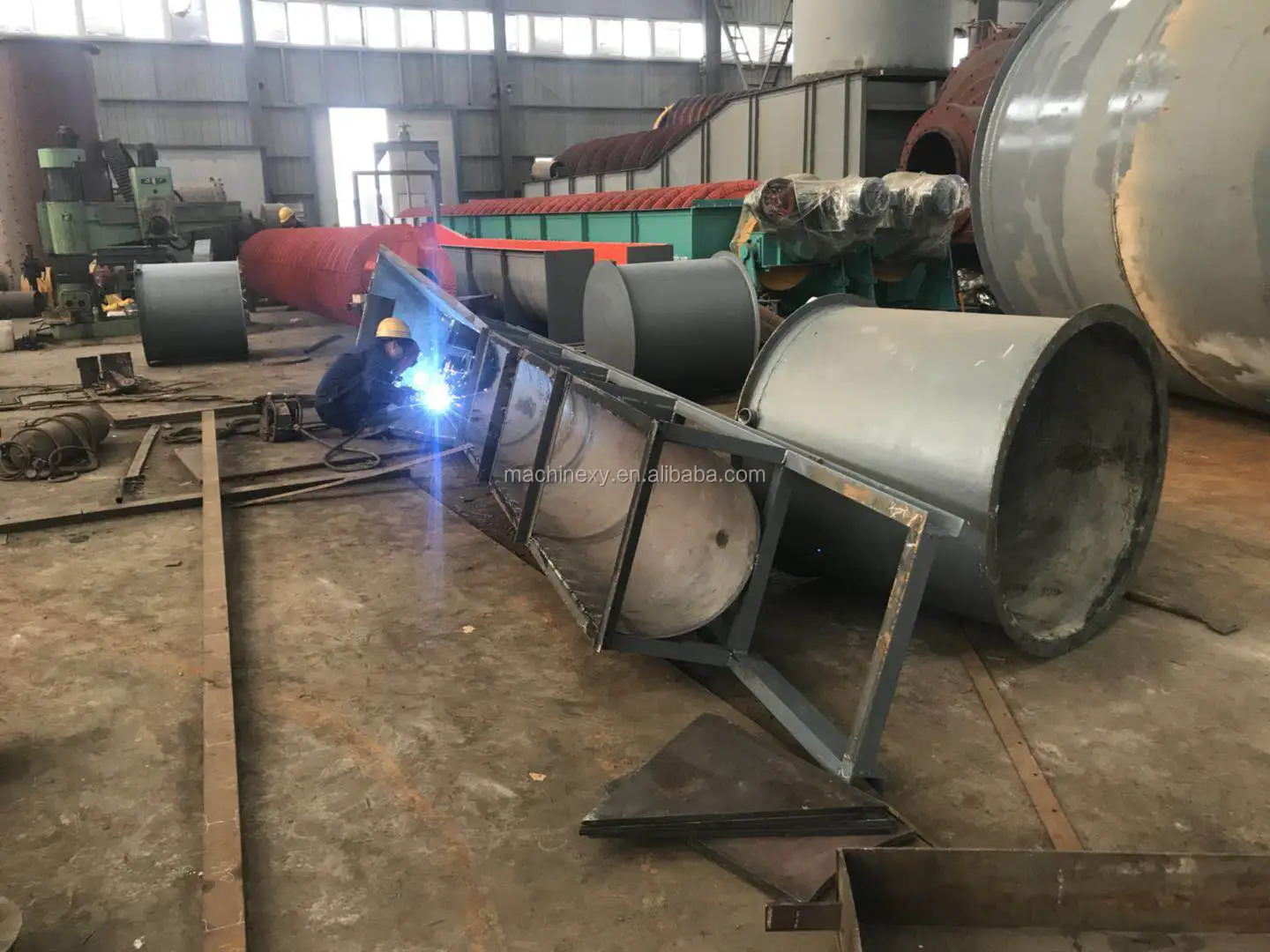

Our Factory

Certificate

FAQ

Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material purchase,worker train,international market price.

Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.

Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.

Welcome to your inquiry and visit.
If you are interested in the machine, please contact me at any time.
