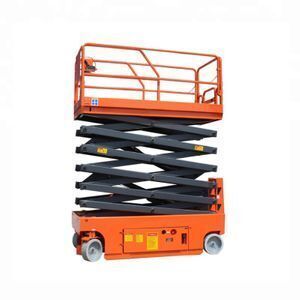

2019 work platform lifts/scissor lift electric

Product details
Certification:ISO&CE;Lift Drive / Actuation:Hydraulic;
Supply Ability:1000 Set/Sets per Month;After-sales Service Provided:Field installation, commissioning and training;
Lift Mechanism:Scissor Lift;Weight:1250kgs;
Table Size:1800*1000mm or customized;Port:Shanghai, Qingdao, Ningbo...etc.;
Feature:Easy Operation Safety Convenience;Overall Dimensions:1800*1000*1600mm;
Voltage:110V,220V,380V, customized;Color:Red, Black, can customized;
Brand Name:Ruibiao;Application:Lifting;
Main Material:High duty steel;Wheel type:Solid rubber wheel;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Place of Origin:Shanghai China;
Power:1-3KW;Lifting height:3000-16000mm;
Warranty:1 Year;Fence:1000mm or customized;
Packaging Detail:Wooden case 2019 work platform lifts/scissor lift electric;Platform:Anti-skid Checkered Plate;
Lifting time:80S;
Product Description

2019 work platform lifts/scissor lift electric is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power.   Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.



  • Scissor Aerial Work Platform Features: lifting mechanism of high-strength
  • Manganese steel rectangular tube production. With a safety device to prevent
  • Overloading of the lift. Provided to prevent hydraulic line rupture safety
  • Protection valve. Emergency lowering device in case of a power outage.
 Model Capacity(kgs)

 Max height

(mm)

 Min height

(mm)

 Platform size

(mm)

 Motor power

(kw)

Weight(kgs)
SJY0.5-3  500  3000 850 1300*700 0.75 400
SJY0.5-5 500 5000 950 1300*700 0.75 620
SJY0.3-6 300 6000 950 1850*880 0.75 650
SJY0.5-6 500 6000 950 1850*880 1.1 650
SJY0.3-7 300 7500 1250 1850*1000 1.5 900
SJY0.5-7 500 7500 1350 1800*1000 1.5 1100
SJY0.3-9 300 9000 1500 1850*1000 1.18 1200
SJY0.5-9 500 9000 1600 1850*1000 1.5  1260
SJY0.3-11 300 11000 1600 1800*1000 2.2  1320
SJY0.5-11 500 11000 1600 2100*1150 2.2 1380
SJY0.3-12 300 12000 1600 2100*1150 2.2 1700
SJY0.5-12 500 12000 1800 2450*1350 3 1850
SJY0.3-14 300 14000 1800 2450*1350 3  2200
SJY0.5-14 500 14000 1980 2450*1350 3  2500
SJY0.3-16 300 16000 1980 2500*1500 3 2600
