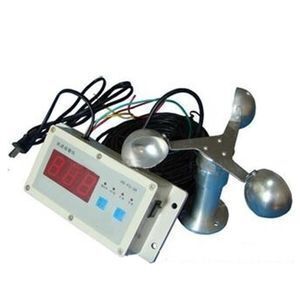

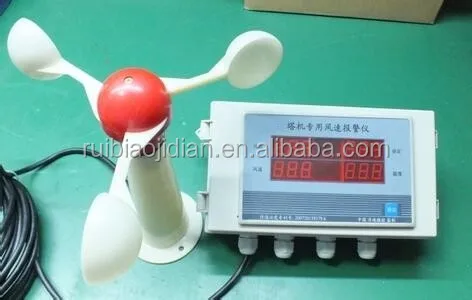

Digital Wind Speed Meter Anemometer,3 cup anemometer

TXFS-2 anemometer is used for buildings, meteorological stations (stations), chemical industry, power plants, industrial enterprises and other units to record air travel and instantaneous wind speed and wind observation devices. Can be implemented using TXFS-2-type microcomputer intelligent digital anemometer wind speed indicates the digitizationand automation of equipment, it is indispensable to modern equipment, related equipment.

TXFS-2 digital anemometer is made up of intelligent microcomputer Intelligent measuring and control instruments, windspeed sensor is composed of two parts. Intelligentinstrument case with metal shell, durable, boards adopt and import the ATMEL chip and the corresponding external circuit, display using a single window to highlight four groups of12-digit NIXIE tube display, extensive use of advanced foreign technology. TXFS-2-typemicrocomputer intelligent digital marine anemometer wind speed detecting sensor of measuring wind speed sensor, ship, TXFS-2 compared with traditional products microcomputerintelligent digital anemometer, with high precision and wide range of application,convenient data logger, good quality,stable and reliable.

Technical parameters

Technical specifications

1. wind speed indicator

(1) wind speed measurement range: 0~56m/s, 0~16-level

(2) accuracy of <56m/s ± (0.5+0.05v)

 ≥56m/s±5%

(3) start wind speed wind speed sensor: <0.7m/s

(4) to display parameter: the actual windspeed alarm, wind, wind, wind maximum winds

2. alarm limit value (meter factory setting): lifting status (level 4), work status (level8), limit value can be adjusted according to customer requirements (can be selected)

3.0~800HZ pulse output (0~56m/s)

4. working environment temperature:Host:-30 ° C~65 ° cSensors:-30 ° C~65 ° c
