High-quality 4-20m mobile hydraulic lift platform for painting

Supplier: Shanghai Ruibiao Construction Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Angela Cheng
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE ISO9001,ISO&CE;	Power:	1.1kw-4.5kw;
After-sales Service Provided:	Free spare parts;	Packaging Detail:	High-quality 4-20m mobile hydraulic lift platform for painting Export wooden box packaging;
Supply Ability:	4000 Piece/Pieces per Month;	Port:	ShangHai,QingDao;
Capacity:	300kg-3000kg;	Lift Drive:	Scissor Lift;
Local Service Location:	None;	Brand Name:	RUIBIAO;
Overall Dimensions:	18607602080mm-306718522230mm,18607602080mm-306718522230mm;	Warranty:	1 Year;
Motor Power:	1.1-4.5kw;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Hydraulic Lift For Painting;
After Warranty Service:	Online support,Spare parts;	Type:	Scissor Hydraulic Lift;
Voltage:	110v 220v 240v 380v Optional;	Package Preview:	;
Condition:	New;	Showroom Location:	None;
Lift Drive / Actuation:	Electric Motor;	Place of Origin:	Shandong China;
Table Size:	1670740mm-28161600mm,1670740mm-28161600mm or customized;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Lifting Height:	4-20M;	Weight:	800kg-3900kg;
Lift Mechanism:	Scissor Lift,Warehouse;	Min. Lifting Height:	1100mm-2430mm;

Mobile scissor lift main purpose:

Mobile scissor lifts are suitable for industrial and mining workshops, enterprises, stations, docks, buildings, exhibition halls, communication industries, municipal gardens and other high-altitude operations.

They can be used to repair street lamps, repair workshop ceiling lights, maintenance vehicles, maintenance electric hoists,

High-altitude pipeline erection and maintenance, high-altitude communication line maintenance, layout of pavilions, tree trimming.

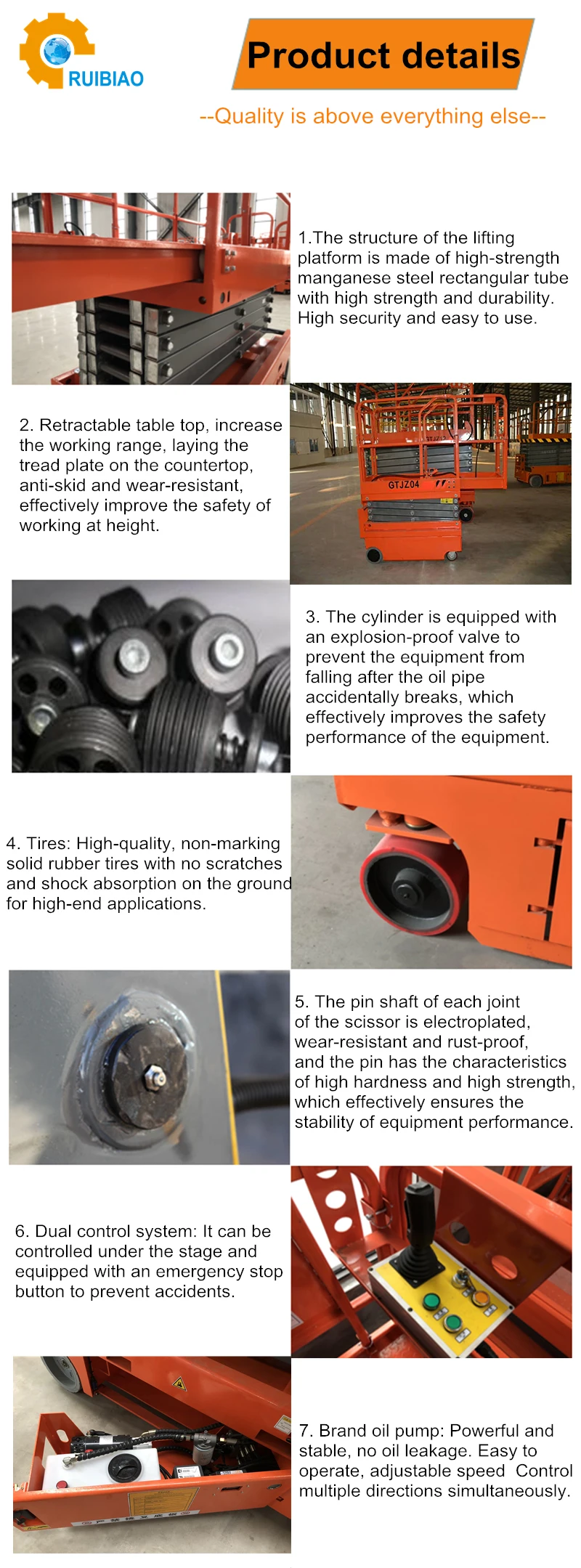

Mobile scissor lift features:

1. The structure is made of high-strength manganese steel rectangular tube.

2. There is an overloaded hydraulic safety protection system for the lifting platform.

3. Anti-fall safety protection device for preventing pipe bursting.

4. There is a manual control drop valve that is lowered in emergency when power is off.

High-quality 4-20m mobile hydraulic lift platform for painting

Model	Platform Dimension (mm)	Load (Kg)	Lifting height (m)	Overall dimensions (mm)	Overall weight (Kg)
QYCY0.5-4	2100*830	500	4	22509501100	800
QYCY0.5-6	2100*830	500	6	22509501200	880
QYCY0.5-7	2100*830	500	7	22509501280	970
QYCY0.5-8	2100*930	500	8	225010601380	1050
QYCY0.5-9	2100*930	500	9	225010601500	1165
QYCY0.5-10	2100*1230	500	10	225013501530	1360
QYCY0.3-11	2100*1230	300	11	225013501650	1400
QYCY0.5-12	2550*1530	500	12	279616701750	2260
QYCY0.5-14	2812*1530	500	14	306717301810	2486
QYCY0.5-20	3500*1800	500	20	400023002400	5500
QYCY0.3-16	2812*1600	300	16	306718102080	3063
QYCY0.3-18	3070*1600	300	18	332118102080	3900
QYCY1.0-4	2100*1200	1000	4	225013501180	1250
QYCY1.0-6	2100*1200	1000	6	225013501300	1400
QYCY1.0-8	2100*1200	1000	8	225013501420	1585
QYCY1.0-10	2100*1200	1000	10	225013501530	1700
QYCY1.0-12	2550*1530	1000	12	279616701750	2560
QYCY1.0-14	2812*1600	1000	14	306718101900	3230
QYCY1.5-6	2100*1530	1500	6	225017501530	1780
QYCY1.5-8	2100*1530	1500	8	225017501690	2070
QYCY1.5-10	2100*1530	1500	10	225017501850	2250
QYCY1.5-12	2550*1530	1500	12	279617621850	2900
QYCY1.5-14	2816*1600	1500	14	304518521960	3400
QYCY2.0-6	2100*1530	2000	6	225017501530	1780
QYCY2.0-8	2100*1530	2000	8	225017501690	2070
QYCY2.0-10	2100*1530	2000	10	225017501850	2250
QYCY2.0-12	2550*1600	2000	12	279618521954	3200
QYCY2.0-14	2816*1600	2000	14	306718522230	3900

High-quality 4-20m mobile hydraulic lift platform for painting

Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the lift table to stop at accurate position.
4)All the trailing scissor lift are passed 1.2 times loading test before leaving factory.
