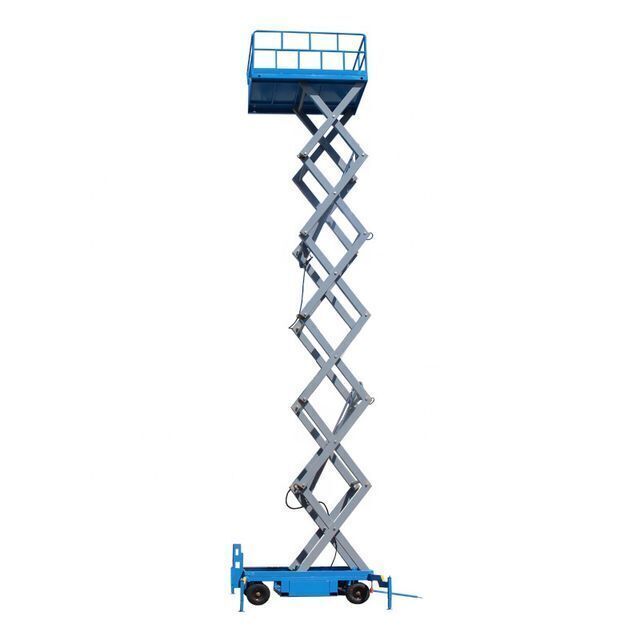

12m scissor lifting platforms 500kg building elevator construction lifter platform lift table

Product details
Platform:Anti-skid Checkered Plate;Dimension(L*W*H):2796*1670*1750;
Voltage:110v 220v 240v 380v Optional;Rated Loading Capacity(kg):500kg-2000kg;
Warranty:1 Year;Supply Ability:500 Set/Sets per Month platform lift;
Loder Weight:2260kg;Packaging Detail:Plywood - 12m scissor lifting platforms 500kg building elevator construction lifter platform lift table;
Max Lifting Height:14m;Application:Maintenance;
UNIQUE SELLING POINT:Long lifetime;Condition:New;
Material:High-duty Steel Structure;Brand Name:RUIBIAO;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Place of Origin:China;
Feature:Easy Operation Safety Convenience;Lifting time:80S;
Color:Requirement;After-sales Service Provided:Video technical support,Online support,Free spare parts;
Fence height:1000mm;Usage:Higher Level;
Name:scissor lifting platforms construction lifter platform lift table;Port:Shanghai;
Hoisting Speed:4-6m/min;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;

12m scissor lifting platforms 500kg building elevator construction lifter platform lift table

Product Description



 Lift table is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.



  A.1000kg-2000kg electric scissor lift platform lift
Model

Capacity

(kg)

Lifting.Height

(mm)

Min.Height

(mm)

Platform size

(mm)

Weight

(kg)

RBSJY1.0-41000400011802100*12001250
RBSJY1.0-61000600013002100*12001400
RBSJY1.0-81000800014202100*12001585
RBSJY1.0-1010001000015302100*12001700
RBSJY1.0-1210001200017502550*15302560
RBSJY1.0-1410001400019002812*16003230
RBSJY1.5-61500600015302100*15301780
RBSJY1.5-81500800016902100*15302070
RBSJY1.5-1015001000018502100*15302250
RBSJY1.5-1215001200018502550*15302900
RBSJY1.5-1415001400019602816*16003400
RBSJY2.0-62000600015302100*15301780
RBSJY2.0-82000800016902100*15302070
RBSJY2.0-1020001000018502100*15302250
RBSJY2.0-1220001200019542550*16003200
RBSJY2.0-1420001400022302816*16003900



  B.300kg-500kg electric scissor lift platform lift
 Model

 Capacity

(kg)

Lifting.Height

(mm)

Platform size

(mm)

Min.Height

(mm)

Weight

(kg)

RBSJY0.5-650060002100*8301200880
RBSJY0.5-750070002100*83012801250
RBSJY0.5-850080002100*9301380
1050
RBSJY0.5-950090002100*93015001165
RBSJY0.5-10500100002100*123015301360
RBSJY0.5-11500110002100*123016501400
RBSJY0.5-12500120002550*153017502260
RBSJY0.5-14500140002812*153018102486
RBSJY0.3-16300160002812*160020803063
RBSJY0.3-18300180003070*160020803900

  C.Features
  • Aerial work electric scissor lift Features: lifting mechanism of high-strength
  • Manganese steel rectangular tube production. With a safety device to prevent
  • Overloading of the lift. Provided to prevent hydraulic line rupture safety
  • Protection valve. Emergency lowering device in case of a power outage.
  D.Workshop



 D.Internation Cerfications
