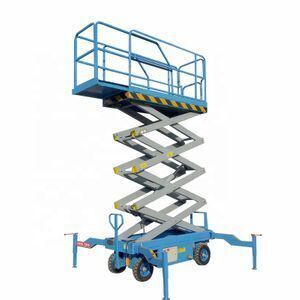

1000kg Trail-type small platform folding scissor lift with extension platform

Supplier: Shanghai Ruibiao Construction Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Angela Cheng
Price: $1400.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Package Type:	1000kg Trail-type small platform folding scissor lift with extension platform is packed with plywood case or plastic film;	Single gross weight:	68 KG;
Single package size:	100X30X70 cm;	Table Size:	2100*1200mm;
Package Preview:	https://sc01.alicdn.com/kf/HTB1FFj4RcfpK1RjSZFO7616nFXaQ.png_640x640.png;	Fence height:	1000mm;
Lifting speed:	4-6m/min;	Min. Lifting Height:	1180mm;
Local Service Location:	None;	Certificate:	ISO9001;
Application:	Maintenance;	Lift Mechanism:	Scissor Lift;
Selling Units:	Single item;	Warranty:	1 year;
Material:	High-duty Steel Structure;	Lift Drive / Actuation:	Hydraulic;
Feature:	Easy Operation Safety Convenience;	Power:	3kw;
Certification:	CE ISO9001;	Brand Name:	Ruibiao;
Type:	1000kg folding scissor lift;	Voltage:	12V 220v 380v Optional;
Place of Origin:	Shanghai China;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Condition:	New;	Warranty:	1 Year;
Weight:	1250kg;	After Warranty Service:	Spare parts;
Overall Dimensions:	225013501180mm;	Platform:	Anti-skid Checkered Plate;
Showroom Location:	None;

Product Description

ISO CE Approved Blue 6m Mobile Mini Electric Scissor Lifts For Aerial Working is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
A.1000kg-2000kg Trailer Mobile Scissor Aerial Work Platform
Model	Capacity (kg)	Lifting.Height (mm)	Min.Height (mm)	Platform size (mm)	Weight (kg)
RBSJY1.0-4	1000	4000	1180	2100*1200	1250
RBSJY1.0-6	1000	6000	1300	2100*1200	1400
RBSJY1.0-8	1000	8000	1420	2100*1200	1585
RBSJY1.0-10	1000	10000	1530	2100*1200	1700
RBSJY1.0-12	1000	12000	1750	2550*1530	2560
RBSJY1.0-14	1000	14000	1900	2812*1600	3230
RBSJY1.5-6	1500	6000	1530	2100*1530	1780
RBSJY1.5-8	1500	8000	1690	2100*1530	2070
RBSJY1.5-10	1500	10000	1850	2100*1530	2250
RBSJY1.5-12	1500	12000	1850	2550*1530	2900
RBSJY1.5-14	1500	14000	1960	2816*1600	3400
RBSJY2.0-6	2000	6000	1530	2100*1530	1780
RBSJY2.0-8	2000	8000	1690	2100*1530	2070
RBSJY2.0-10	2000	10000	1850	2100*1530	2250
RBSJY2.0-12	2000	12000	1954	2550*1600	3200
RBSJY2.0-14	2000	14000	2230	2816*1600	3900

B.300kg-500kg Tralier Mobile Scissor Aerial Work Platform
Model	Capacity (kg)	Lifting.Height (mm)	Platform size (mm)	Min.Height (mm)	Weight (kg)
RBSJY0.5-6	500	6000	2100*830	1200	880
RBSJY0.5-7	500	7000	2100*830	1280	1250
RBSJY0.5-8	500	8000	2100*930	1380	1050
RBSJY0.5-9	500	9000	2100*930	1500	1165
RBSJY0.5-10	500	10000	2100*1230	1530	1360
RBSJY0.5-11	500	11000	2100*1230	1650	1400
RBSJY0.5-12	500	12000	2550*1530	1750	2260
RBSJY0.5-14	500	14000	2812*1530	1810	2486
RBSJY0.3-16	300	16000	2812*1600	2080	3063
RBSJY0.3-18	300	18000	3070*1600	2080	3900

C.Features
Scissor Aerial Work Platform Features: lifting mechanism of high-strength Manganese steel rectangular tube production. With a safety device to prevent Overloading of the lift. Provided to prevent hydraulic line rupture safety Protection valve. Emergency lowering device in case of a power outage.
