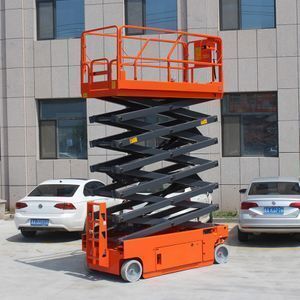

self propelled electric mini scissor lift/hydraulic scissor lift

Supplier: Shanghai Ruibiao Construction Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Angela Cheng
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Main Material:	High duty steel;	Lift Mechanism:	Scissor Lift;
Fence:	1000mm or customized;	Packaging Detail:	Wooden case self propelled electric mini scissor lift;
Brand Name:	Ruibiao;	Port:	Shanghai, Qingdao, Ningbo...etc.;
Lifting time:	80S;	Application:	Lifting;
Feature:	Easy Operation Safety Convenience;	Power:	1-3KW;
Certification:	ISO&CE;	Place of Origin:	China;
Overall Dimensions:	180010001600mm;	Weight:	1250kgs;
Supply Ability:	1000 Set/Sets per Month;	Platform:	Anti-skid Checkered Plate;
Lifting height:	3000-16000mm;	Voltage:	110V,220V,380V, customized;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	After-sales Service Provided:	Field installation, commissioning and training;
Lift Drive / Actuation:	Hydraulic;	Wheel type:	Solid rubber wheel;
Warranty:	1 YEAR;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Table Size:	1800*1000mm or customized;	Color:	Red, Black, can customized;

Product Description

self propelled electric mini scissor lift/hydraulic scissor lift is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.

Scissor Aerial Work Platform Features: lifting mechanism of high-strength
Manganese steel rectangular tube production. With a safety device to prevent
Overloading of the lift. Provided to prevent hydraulic line rupture safety
Protection valve. Emergency lowering device in case of a power outage.

Model	Capacity(kgs)	Max height (mm)	Min height (mm)	Platform size (mm)	Motor power (kw)	Weight(kgs)
SJY0.5-3	500	3000	850	1300*700	0.75	400
SJY0.5-5	500	5000	950	1300*700	0.75	620
SJY0.3-6	300	6000	950	1850*880	0.75	650
SJY0.5-6	500	6000	950	1850*880	1.1	650
SJY0.3-7	300	7500	1250	1850*1000	1.5	900
SJY0.5-7	500	7500	1350	1800*1000	1.5	1100
SJY0.3-9	300	9000	1500	1850*1000	1.18	1200
SJY0.5-9	500	9000	1600	1850*1000	1.5	1260
SJY0.3-11	300	11000	1600	1800*1000	2.2	1320
SJY0.5-11	500	11000	1600	2100*1150	2.2	1380
SJY0.3-12	300	12000	1600	2100*1150	2.2	1700
SJY0.5-12	500	12000	1800	2450*1350	3	1850
SJY0.3-14	300	14000	1800	2450*1350	3	2200
SJY0.5-14	500	14000	1980	2450*1350	3	2500
SJY0.3-16	300	16000	1980	2500*1500	3	2600
