plaster of paris gypsum powder making machinery

Supplier: Hebei Lvjoe Machinery Manufacturing Group Co., Ltd.
Region: Hebei, China
Contact: Ms Maria Zheng
Price: $260000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	10 Set/Sets per Year;	Fuel:	Oil, Gas, Coal;
Warranty:	1 Year;	Automatic Grade:	Semi-Automatic;
Milling system:	Raymond Grinding Mill;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Voltage:	380V/50Hz;	Payment Terms:	L/C,T/T;
Final product:	80-2500 Mesh;	Condition:	New;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Construction works ;	Brand Name:	LVJOE;
Key Selling Points:	High Productivity;	Place of Origin:	China;
Port:	TianJin Port;	Application:	building material;
Control System:	DCS;	Working principle:	Fluidized Bed Calciner Drying Principle;
Power(W):	800KW;	Machine Type:	Jaw Crusher;
Packaging Detail:	Suitable package for long distance transportation wooden boxes: load electrical cabinet, small parts etc. carton boxes: load motor, screw, bolt etc. plastic package: rock wool.;	COLOR:	White;
Technology:	fluidized bed furnace;	Our factory:	21 Years Experience;

Product Description

Gypsum powder production line works based on the following process:

The Crusher will break the big-size gypsum ore into small 25mm pieces, and then the small pieces will be sent to the grinder, after grinding fine, the qualified raw gypsum powder will be sent to boiling furnace to calcine, and the unqualified part will be sent to grinder until it's qualified. After calcining, the qualified gypsum powder will be sent to spiral conveyor through hoist.

The spiral conveyor will send the calcined gypsum powder to silo for storage, and cool the powder during the process. The dust remover is on the top of silo, the unqualified part will be sent to grinder until it's qualified.

The stored gypsum will be sent to product storage through steel impeller feeder, spiral conveyor, hoist, and send the qualified gypsum powder to storage or workshop finally.

The top pulse bag-type dust remover will collect dust from crusher, particle silo. When the dust and dust gas get into the dust remover through inlet, the big-size dust particle will fall because the increasing size and decreasing wind speed. The small dust particle will be filtered by filter bag. The filtered gas will be got rid of by outlet.

Production Capacity:
40, 000tons/year ---- 500, 000tons/year

Quality of Final Product:
Conformity with Chinese National Standard GB/T 9776-1988

Raw Materials:
Content of CaSO4 2H2O in gypsum mine >80%.
The grade of mine and the crystal configuration will influence the quality of semi-hydrated gypsum.

Fuel for Production:
Natural Gas, Oil or Coal

The advantages of this calcining system:

Simple structure, free of maintenance
Compact machine, occupy less space
More energy-saving
Gypsum with this system has better physical characteristics and the setting time is easy to control
Better dust collecting result.

Certifications

Detailed Images

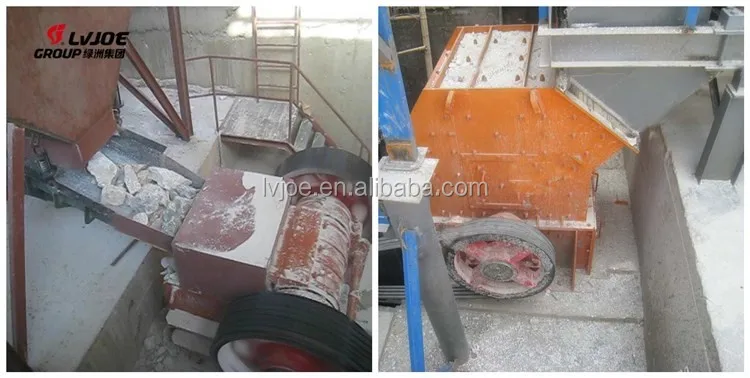

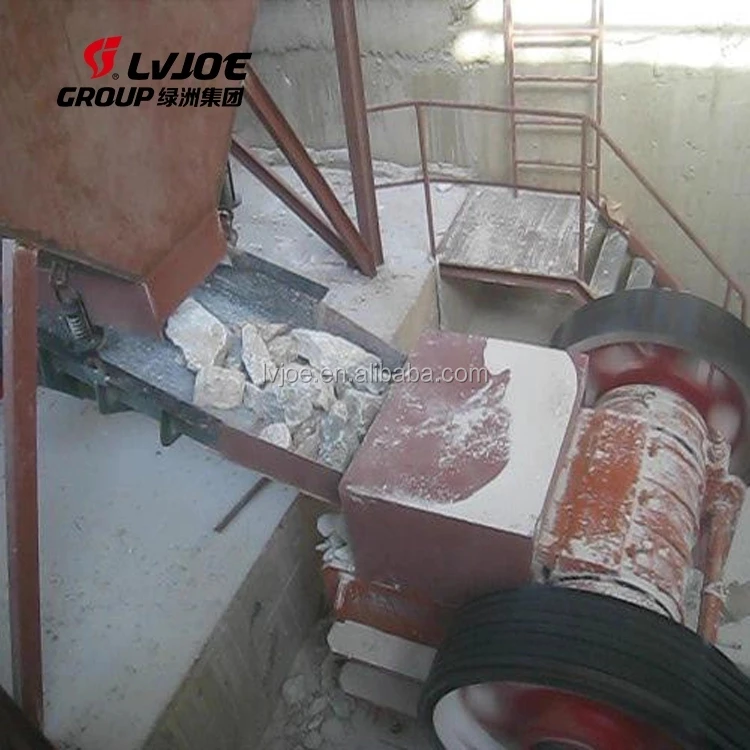

Name: crusher

Function: break big size gypsum rock into small size

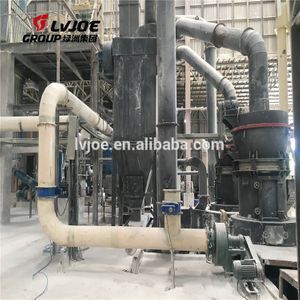

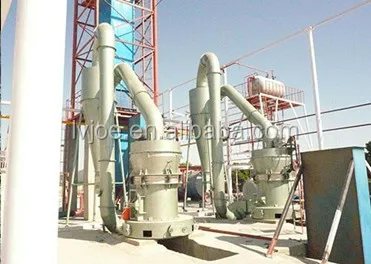

Name: Raymond mill
Function: grinding small size gypsum stone into raw gypsum powder

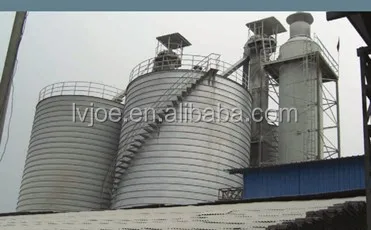

Name: Silo
Function: storage the final products

Name: Layout of the powder line

The basic process of making gypsum powder is: gypsum rock -- crusher -- raw material silo -- grinder -- calcinor -- silo-- packing machine

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Discussing for the main questions

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	Depending on the capacity
Weight	Depending on the capacity
Packaging Details	Suitable package for long distance transportation wooden boxes: load electrical cabinet, small parts etc. carton boxes: load motor, screw, bolt etc. plastic package: rock wool.
