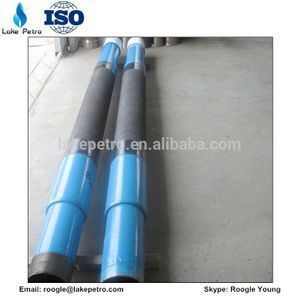

Cementing tools Rubber Inflatable Cementing Packer Casing Packer

Product details
Max O D.:78 mm -349 mm;Payment Terms:L/C,D/P,T/T,Western Union;
Sealing Length of Rubber Tube:1150/2000/3000/4000/6000/10000;Effective Length:2600/3450/4540/5540/7540/11540;
Nominal diameters:48 mm -298 mm;product name:Cementing tools Rubber Inflatable Cementing Packer Casing Packer;
Type:External and hydrualic;Supply Ability:1000 Set/Sets per Month;
Packaging Detail:Wooden case for Cementing tools Rubber Inflatable Cementing Packer Casing Packer;Port:China any port;
Well diameters Range:D+15-1.7D;Materials:steel and rubber;
Temperature:150 centigre;color:blue yellow or as your request;
Delivery Detail:In stock and 15-20 days;Used:oil, gas, water etc;

Cementing tools Rubber Inflatable Cementing Packer Casing Packer

Product Description

Casing Packer (casing external packer) uses hydraulic expansion type structure, mainly be used in the complex wells'(oil,gas,water) completion project, to achieve downhole packer and bridging and in favor of improvement of the quality of completion. The practice proved that this tool have characters of easy operation,wide adaptability, it has a very important position in the completion project.

Hydraulic expansion packer mainly consists f of e valve m system t joint  assembly, rubber  barrel, central  tube ,casing  sub. The valve system s is d divided o into  axial valve m system d and l radial e valve  system. Radial e valve m system s is d composed of a a  set of  three valve.

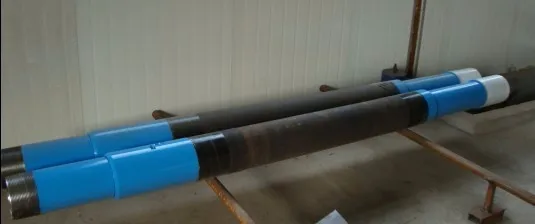

Drawing



Working Principle
In the construction process, the replace plug will touch off the breaking stick which is sealed in the intake hole when the replace pluge through the valve joint of the packer. The replace pluge will make the casing form seal when it move to the spoiler(we also can use the pitch or blind plate and pipe string process structures make casing form seal, for these process pipe string structure without plug through so we should take off the breaking stick in advance), Bie pressre liquid through the valve system fo intake hole into the open valve system of  intake hole into the open valve. when the pressure to achieve set valve, the pin on the ope valve is snapped. open valve open, and at the same time, single valve is opened, the fluid through limiting valve into the expansion cavity between center pipe and rubber cylinder, make packer inflation and wall close contact form seal.
When the pressure of the expansion cavity reach the value of limiting valve's pin pressure, pin shear, liemeitng valve closed and will make intake hole sealing, the caing pressure valve have no influence on the pressure is zero, open valve automatic locking, realize premanent closed,(see chart 3)after the downhole pressure operation dose noe affect the packer fate.
In some specaail pipe string process well, also can use the inner pipe tools to a packer, achieve completion purpose(Such as packer direct completion and packer in the screen between the packer and completion method).

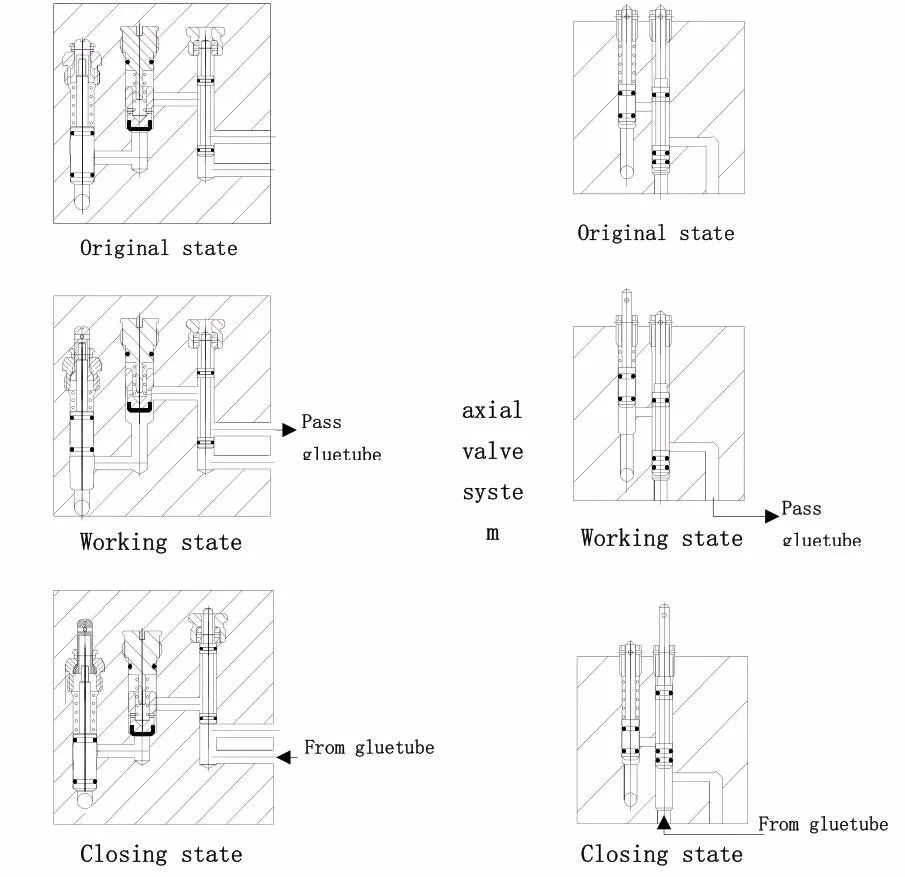

Radial valve system:

Main Parameters

Casing Packer Specification

Model

Max. OD

(mm)

Nominal Diameters

(mm)



Effective Length

(mm)

 Sealing Length of Rubber Tube

(mm)

Well Diameters Range
HXK487848

2600/3540/4540/

5540/7540/11540

1150/2000/3000/

4000/6000/ 10000

D+15~ 1.7D



















HXK608960

2600/3540/4540/

5540/7540/11540

1150 /2000/3000/

4000/6000/10000

HXK7310273

2600/3540/4540/

5540/7540/11540

1150/2000/3000/

4000/6000/10000

HXK8911489

2600/3540/4540/

5540/7540/11540

1150/2000/3000/

4000/6000/10000

HXK102133102

2600/3540/4540/

5540/7540/11540

1150/ 2000/3000/

4000/6000/10000

HXK114146114

2600/3540/4540/

5540/7540/11540

1150 /2000/3000/

4000/6000/10000

HXK127154/148127

2600/3540/4540/

5540/7540/11540

1150/2000/3000/

4000/6000/10000

HXK140178/183/190140

2900/3850/4850/

5850/7850/11850

1150/2000/3000/

4000/6000/10000

HXK168202168

2900/3850/4850/

5850/7850/11850

1150/2000/3000/

4000/6000/10000

HXK178206178

2900/3850/4850/

5850/7850/11850

1150/2000/3000/

4000/6000/10000

HXK245286245

3180/4280/5280/

6280/8280/11280

1050/2000/3000/

4000/6000/10000

HXK273324273

3180/4280/5280/

6280/8280/11280

1050/2000/3000/

4000/6000/10000

HXK298349298

3180/4280/5280/

6280/8280/11280

1050/2000/3000/

4000 /6000/10000

Products Drawing
