Input Power

AC 220V ±10% / 50Hz

Resolution

AD:16bit;DA:16bit

Input Resistance

≥1MΩ

Input Power

425W

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

Charge:25mV~5V;Discharge:1.0V~5V

Accuracy

± 0.05% of  FS

Stability

0.05% of  FS

Current

Per Channel Current Range

Range1:0.5mA~0.1A;Range2:0.1A~6A

Accuracy

± 0.05% of  FS

CV cut-off current

Range 1: 0.2mA  Range2: 12mA

Stability

0.05% of  FS

Power

Per Channel Output Power

30W

Stability

± 0.1%  of  FS

Time

Current Response Time

The Current gets to 6A Hardware Response Time is 1ms

Step Time Range

0.1s≤Single Step Time Range≤365*24 h,

Time Form Support 00:00:00(h,min,s)

Data Recording

Record Condition

Time:100ms

Voltage U:10mV

Current I:Range 1: 0.2mA  Range2: 12mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge,Constant Voltage Charge,

CC-CV Charge ,CP-Charge

End Condition

Voltage,Current,Relative Time,Capacity,

Discharge

Discharge Mode

Constant Current Discharge  CP-D CR-D

End Condition

Current,Current,Relative Time,Capacity,

Pulse Model

Charge

Constant Current,Constant Power

Discharge

Constant Current,Constant Power

Min Pulse Width

500ms

Pulse Number

Single Pulse Step Support 32 different Pulse

Charge r To Discharge

One Pulse Step Can Support Continuous Charge And Discharge Change

Stop Condition

Voltage, Relative Time

DCIR Testing

Support Custom Access Point And Count The DCR

Cycle

Loop Measure Range

1~65535 times

Max Steps Per Loop

254

Nested Loop

Nested loop Function,Max Support 3 Layers

Protection

Software Protection

Power-down Data Protection

Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time

Voltage and Current Testing Sample

4-wire connecting

Noise

<85dB

Data Management

MySQL Database

Communication Means

TCP/IP Protocol

Data Output

EXCEL,TXT

Communication Interface

Ethernet Port

Main Channels

8

Channels

Eight independent programmable channels

Each channel can set different working modes and functions independently

Programs &

Software

1.1 The software is included to set various working modes for

measuring capacity and life cycle for all types of rechargeable batteries

1.2 Working modes Include constant current discharge, constant current charge,

constant voltage charge, rest, cycles, etc.

1.3 Limited threshold conditions include voltage, current, time, capacity,

negative voltage slope, etc.

1.4 With real-time monitoring windows and integrated graph/data windows,

the testing process can be observed more directly and efficiently

1.5 During the test, the software will provide instructions and warnings for assistance

Test Reports and

Curves for analysis

2.1 Different types of curves can be created by software base on user definition.

(Voltage-time curve, current-time curve, capacity-voltage curve, loops

times-charge/discharge capacity curve, loops times charge/ discharge efficiency curve, etc)

2.2 Data reports are created by software.

User can easily compare the performance of the batteries tested in channels both visually

and statistically

Protection and

Auto-recover

If power failure occurs during testing, the system will shutdown all operating channels.

Once power is recovered, the system will automatically resume those stopped channels

and ensure that the test is normally conducted, so that no cases will lose any data.

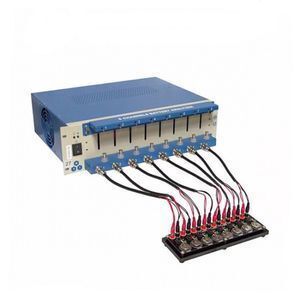

Battery Holders

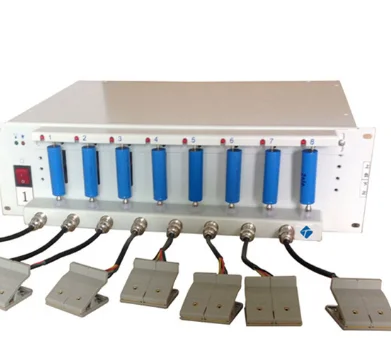

8 alligator clips with cable for universal connecting

8 spring load holders with adjustable length for measuring cylinder battery upto 70mm(H)

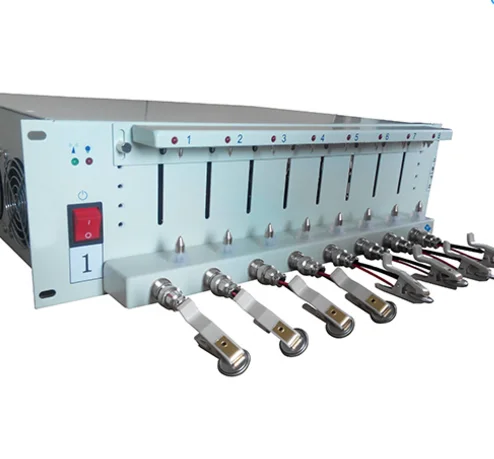

8 Polymer battery tester clamps for pouch cell testing

Warranty

One Year limited warranty with lifetime support

Product Dimensions

485mm(L) * 508mm(W) *263mm(H)
