W v 3d Industrial stainless steel drum dry food powder flour cone spiral mixers planetary vacuum mixer blender machine

Supplier: Jiangyin Wantong Pharmaceutical& Chemical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Raisha Wang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key Selling Points:	Competitive Price;	material:	steel wire;
machine:	W stainless steel drum mixer;	Brand Name:	Wantong;
Certification:	ISO9001;	Single gross weight:	100 KG;
Single package size:	1X1X1 cm;	Mixer Type:	Planetary Mixer;
total high:	1850(mm);	mixing time:	4-8(min);
Barrel Volume (L):	100;	Voltage:	220V OR 380V;
Additional Capabilities:	Milling;	Range of Spindle Speed(r.p.m):	1 - 18;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;	After-sales Service Provided:	Online support,Video technical support;
Dimension(LWH):	14008001850(mm);	Package Preview:	https://sc02.alicdn.com/kf/HTB1a.C2dWSs3KVjSZPiq6AsiVXai.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1BPf7bfBj_uVjSZFpq6A0SXXar.jpg_640x640.jpg;
Power (kW):	1.1;	Weight (KG):	280;
Max. Loading Capacity:	0.18L;	Warranty:	1 year;
Package Type:	W stainless steel drum mixer 1 set /wooden case for W stainless steel drum mixer;	Max. Loading Volume (L):	4000;
Product Type:	powder , particle;	Application:	Powder;
Selling Units:	Single item;	Condition:	New;
cylinder speed:	12(r/min);	Applicable Industries:	Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Food Shop,Construction works ,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Jiangsu China;

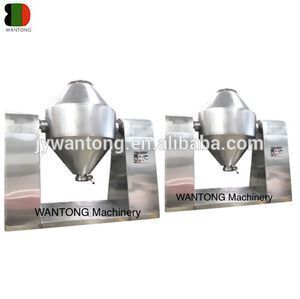

W stainless steel drum mixer

Features
High effect of mixing, no dead corner, even mixing;

Technical parameter

Model	180	300	500	1000	1500	2000	2500	3000	4000
Total volume(L)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0
Production capacity(kg/h)	40	60	100	200	300	400	500	600	800
Mixing time(min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	6-10	6-10
Rotate speed(rpm)	15	15	12	12	12	12	12	7.8	7.8
Motor power(kw)	1.1	1.1	2.2	4	5.5	7.5	7.5	7.5	11
Overall dimension (LWH)(mm)	1400 ×800 ×1850	1685 ×800 ×1850	1910 ×800 ×1940	2765 ×1500 ×2370	2960 ×1500 ×2480	3160 ×1900 ×3500	3386 ×1900 ×3560	4450 ×2200 ×3600	4750 ×2500 ×3680
Total height(mm)	1850	1850	1950	2460	2540	3590	3650	3700	3730
Weight(kg)	280	310	550	810	980	1500	2150	2500	3200

Main feature:

1: this mixer is made up of stainless steel( we also can do as consumer requirement)

2: this mixer is meeting iso 9001 and CE certificate

3: this mixer is suitable for mix powder, granule

4: this mixer can add the stir bar inside mix tank, it also can add the spray system to spray liquid, it also can add the heating or cooling jacket ( if consumer need. inform us in advance)

5: this mixer can make into vacuum condition( if consumer need, inform us in advance)

6: this mixer can add the frequency changer( adjust the rotation speed), if consumer need, inform us in advnace

7: voltage: 220v or 380v or as consumer requirement

8: deliver time: 25 days

9: payment: 30% TT in advance, 70% need to pay us before deliver the goods

10: guarantee: 1 year
