titanium double cone conical screw sugar rotating rotary vacuum device drying mixer drier dryer

Supplier: Jiangyin Wantong Pharmaceutical& Chemical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Raisha Wang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Vacuum Drying Equipment;	Place of Origin:	Jiangsu China;
Brand Name:	Wantong;	design pressure inside tank:	-0.09-0.096;
Payment Terms:	L/C,T/T;	total volume:	100~4500;
Voltage:	220V OR 380V;	Packaging Detail:	titanium double cone conical screw sugar rotating rotary vacuum device drying mixer drier dryer for 1 set /wooden case;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Food Shop,Construction works ;	After-sales Service Provided:	Video technical support;
Warranty:	1 Year;	Power(W):	Accroding to model;
Material:	SS304/SS316L;	Certification:	ISO9001 CE;
Function:	screw sugar rotating rotary vacuum device drying mixer drier dryer;	Keywords:	screw sugar rotating rotary vacuum device drying mixer drier dryer;
Weight:	Accroding to model;	desigh pressure inside jacket:	<0.3;
working area:	1.16;	Dimension(LWH):	Accroding to model;
Key Selling Points:	Competitive Price;	Supply Ability:	2 Set/Sets per Month;
Port:	shanghai port for titanium double cone conical screw sugar rotating rotary vacuum device drying mixer drier dryer;	Product name:	screw sugar rotating rotary vacuum device drying mixer drier dryer;
Application:	Medicine Processing,Chemicals Processing,Food Processing;	Condition:	New;

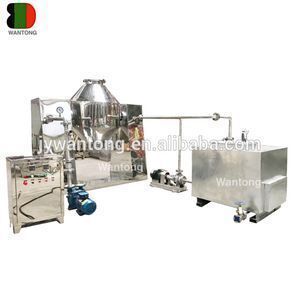

titanium double cone conical screw sugar rotating rotary vacuum device drying mixer drier dryer

SZG

Main Applications:

It is suitable for the raw materials that need to concentrate, mix and dry at low temperature(eg. biochemistry products in chemical, pharmaceutical and foodstuff indusries).

1. materials that are easy to oxidize

2. materials that are easy to volatilize

3. materials that having strong heat sensitive or toxic

4. materials that should not destroy its crystal in drying

Principles:

1. heat source pass through the sealed jacket

2. the heat will be transmitted to the raw material to be dried through inner shell

3. under driving of power, the tank is rotated slowly and the raw material inside it is mixed continuously. then the purpose of reinforced drying can realized

4. the material is at a vacuum state, the drop of steam jpressure makes the moisture at the surface of raw material become saturation and will evaporate

5. the solvent will be discharged through vacuum pump

6. the inner moisture of raw material will infiltrate, evaporate and discharge continuously. these three processes are carried continuously and the purpose of drying can be realized within a short time

Technical parameter:

Model	SZG-100	SZG-350		SZG-500	SZG-750	SZG-1000	SZG-1500	SZG-2000
Total volume (L)	100	350		500	750	1000	1500	2000
Loading volume (L)	≤50	≤ 175		≤ 250	≤ 375	≤ 500	≤ 750	≤ 1000
Rotary speed (r/min)	3-13
Motor power (kw)	0.75		1.1	1.5	2	3	3	4
Rotary height (m)	1.75		2.1	2.25	2.49	2.8	2.94	2.99
Tank inner pressure (Mpa)	-0.1-0.15
Clip set pressure (Mpa)	≤ 0.3
Working temp.(°C)	Inner tank ≤ 85 Clip set ≤ 140
Heating media	Steam, Hot water, Heat transfer oil
Weight (kg)	800		1100	1200	1500	2800	3300	3600
Floor area (L*W)	2160*800		2260*800	2350*800	2550*1000	2860*1300	3260*1400	3760*1800
