WJT Food Chemical Pharmaceutical Powder Granule Fluidized Bed Spray Dryer Granule Dryer Price

Supplier: Jiangyin Wantong Pharmaceutical& Chemical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Raisha Wang
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Voltage:	220v/380v
Showroom location:	not any	Supply capacity:	20 sets per month
Health status:	new	Warranty:	Integrity, Quality, Service
brand:	Wantong	Evaporation (kg/h):	30-500
heating method:	Electric steam heating	Weight (kg):	900
Marketing Type:	New product	Warranty:	1 year
payment terms:	L/C,Western Union,T/T	usage:	Fluid Bed Dryer/Spray Dryer
Video external inspection:	if	After-sales service provided:	Engineers can repair machinery overseas
place of origin; place of origin:	Jiangsu, China	feature:	Mixing, Granulation and Drying
Packaging Details:	FL fluid bed spray dryer price, woden case for spray dryer	port:	Shanghai port forFL fluidized bed spray dryer price, spray dryer
type:	Granulating dryer	Main selling point:	competitive price
strength:	5.5kW	Core Components Warranty:	1 year
Core components:	motor	Applicable industries:	Apparel Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Households, Food Stores, Construction Works, Energy and Mining, Food and Beverage Stores
Material:	Powder particles, SUS304, SUS316, SUS316L	volume:	100L
application:	Medicine, food, industry, paint, etc., pharmaceutical processing, chemical processing, food processing	Dimensions (LWH):	/
product name:	FL fluid bed spray dryer price, spray dryer

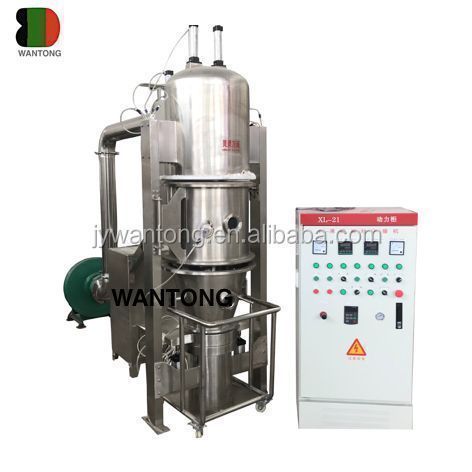

FL fluid bed spray dryer price, spray dryer

Florida

Main application: FL fluidized bed drying granulator

1. Pharmaceutical industry: Chinese medicine tablets, capsules, low-sugar or sugar-free granules.

2. Food: cocoa, coffee, milk powder, granular juice, condiments, etc.

3. Other industries: pesticides, feed fertilizers, pigments, dyes, etc.

4. Pharmaceutical industry: tablets

5. Coating: granule, pill layer, sustained release, film dissolution coating, etc.

Working Principle FL Fluidized Bed Dryer Granulator

The powder particles (fluidized) in the container appear in a fluidized state, preheated and mixed with clean hot air, while the adhesive solution is atomized, sprayed into the container, and part of the particles become granules containing adhesive. Continuous drying by hot air evaporates the moisture in the granulation and solidifies the binder. This process is carried out continuously, resulting in the formation of ideal, uniform, porous particles.

Features: FL fluidized bed drying granulator

1. Due to the powder granulation, the fluidity is improved and the dust is reduced

2. Improved solubility due to powder granulation

3. Mixing, granulating and drying are completed in one step in the machine

4. The use of anti-static filter cloth, the equipment operation is reasonable

5. There is a release hole, which will not hurt the operator when an explosion occurs

6. The equipment has no dead ends. Therefore, loading and unloading is fast, light and clean. Can meet GMP requirements

Why choose you?

1pc; This machine is ISO 9001 certified

2: The machine is made of stainless steel (we can also do it according to customer requirements)

3: This machine is mainly used for granulation. Adhesives need to be added during granulation, and anti-static filter cloth is used to ensure safe operation of the equipment;

4; This machine can use steam or electric (consumers can choose)

5: Voltage: 220V or 380V or according to user requirements

6: Guarantee: 1 year

7: Delivery date: 30 days

8: Payment: 30% TT prepaid, 70% need to be paid to us before shipment

9: Export Port: Shanghai Port

FL fluid bed drying granulator technical data

Model		3	5	15	30	45	60	90	120	200	300	500
Volume (L)		12	twenty two	45	100	155	220	300	420	660	1000	1500
Steam volume (KG/H)		0.5 -1	1 -3	2 -5	6 -15	7 -18	10 -twenty three	15 -50	20 -60	40 -80	70 -150	100 -200
Processing capacity (KG/batch)		1.5 -4.5	4 -6	10 -20	15 -45	25 -65	40 -80	60 -120	80 -160	100 -300	150 -450	300 -700
steam	Pressure(MPa)	00.4-0.6
steam	Consumption (m3/min)	12	223	42	70	99	141	169	211	282	366	451
compressed air	Pressure(MPa)	0.6
compressed air	Consumption (m3/min)	0.3	0.3	0.3	0.4	0.4	0.6	0.6	0.9	0.9	1.3	1.5
Temperature (°C)		0-120
Wind turbine power (KW)		2.2	3	4	5.5	7.5	11	15	18.5	twenty two	30	37
Noise (dB)		<75 (fan motor separation)
