WF series icing sugar pulverizer/powder mill / grinding machine

Product details
Crush size:20-120;Warranty:1 YEAR;
Usage:Sugar;Voltage:380V;
Product name:icing sugar pulverizer/powder mill / grinding machine;Payment Terms:L/C,T/T,Western Union;
Packaging Detail:Packaging Details: 1. Outside package: Standard export wooden cases. 2. Inner package: Stretch film.;Place of Origin:Jiangsu China;
Power(W):18.5KW;Supply Ability:30 Set/Sets per Month;
Application:making powder;Condition:New;
Dimension(L*W*H):950x1000x1850mm;Port:shanghai;
Production capacity:60-600kg;Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops,Advertising Company;
Weight:600KG;Certification:ISO90001;
Feed size:<12mm;Type:Sugar Mill;
After-sales Service Provided:Video technical support,Engineers available to service machinery overseas;Model Number:WF-60B;
Speed:2400r/min;Brand Name:Wantong;

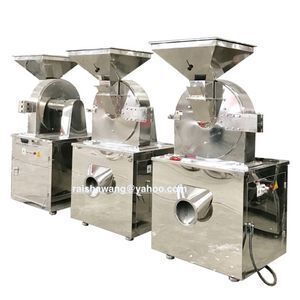

WF series icing sugar pulverizer/powder mill / grinding machine



WF









        Main Features:

  • The machine has the features of easycrush the target materials,The size of flour can be achieved by changing of the screen.
  • The machine has the features of stable running and good efficiency.
  • The crushed material is discharged directly from the grinding chamber of the main frame.
  • In additional,the whole machine is made of stainless steel,with smooth inside walls to avoid power accumulation on the inside wall.
  • Those harmaceutical,chemical and food stuff products from the machine are in accordance with national requirement,achieving  “GMP”  standard.



        Working Principle:

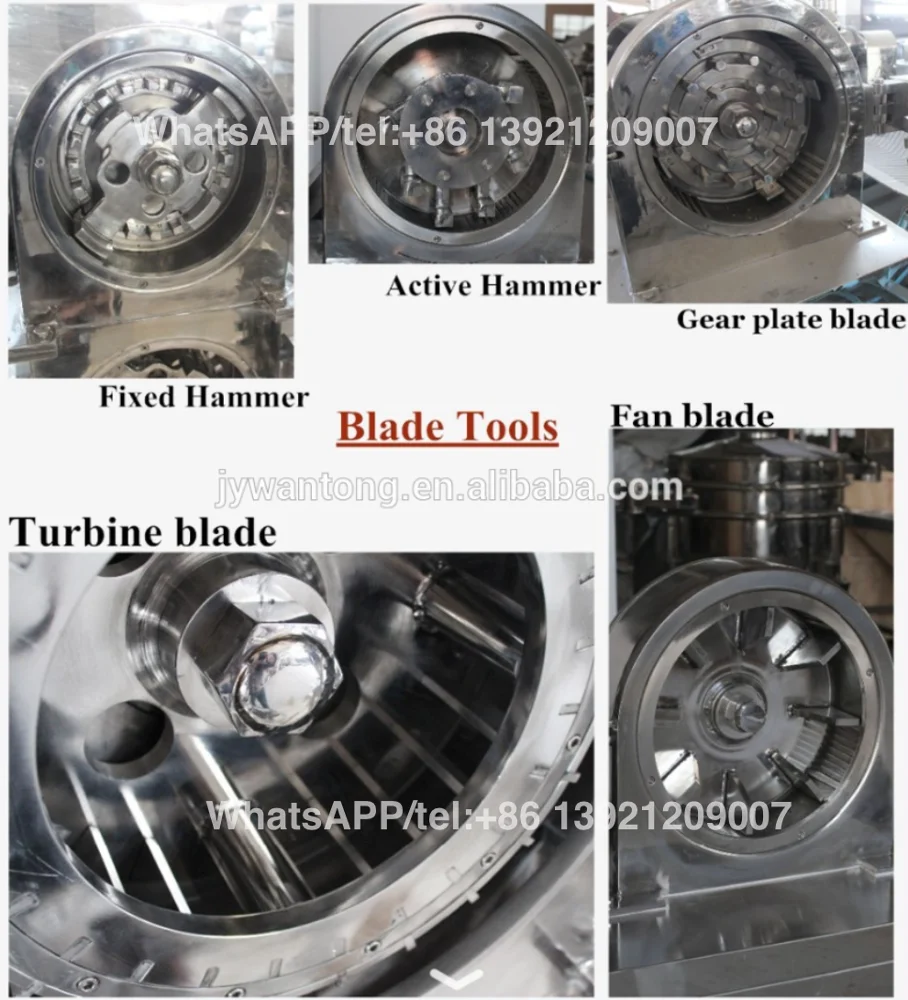

  • The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact,grind and crush the target materials,The size of granules can be controled by changing of the screen.



        Technical Data:

         Model

WF-20B

WF-30B

WF-40B

WF-60B

WF-80B

Capacity(kg/h)

20-150

30-300

40-500

60-600

80-1000

Speed of principal axis
(r/min)

4500

3800

3400

2400

2200

Size of input granules
(mm)

<6

<10

<12

<12

<15

Fineness of products
(Mesh)

12-120

20-120

12-120

20-120

12-100

Power (kw)

4

5.5

7.5

18.5

37

Weight(kg)

250

320

450

600

1000

Overall Size(L×W×H)
(mm)

550×600×1250

600×700×1450

750×900×1600

950×1000×1850

2400*1100*2000

We can also design and manufacture different varieties upon customer's request.

         MACHINE REAL VIEW:









Company Information

MORE MACHINE TYPE, INTO OUR WEBSITE: https://jywantong.en.alibaba.com



  • More than 16years old
  • The biggest factory with rich experience and technology in Jiangyin
  • Have many branches through the whole china.
  • Own many honors, awards and certificates.
  • Contact me by WHATSAPP or SKYPE, provide video/photos ALIVE.
  •                                               --->(skype: Raisha Wang, WhatsAPP: +86 13921209007).
  • Our machine itself and our big factory will be our strongest and best explanations.
  • We have many machines in the stock, we will be glad if you can visit us to get more real and effective information about the machine.

                                                                                                             FOR MORE INFORMATION, PLEASE Click into Our Company





























NOTE: All machine photos are all true belong to us, without permission shall not be used without authorization !



FAQ

ARE YOU REAL FACTORY OR TRADING COMPANY?

YES ! We are real and most reliable factory here. Welcome you visit us anytime! After compare , you will know we are most expert and big factory in this !!

WHAT MACHINE YOUR COMPANY HAVE? CAN CUSTOMIZED MACHINE UPON MY NEEDS?

Yes, we also produce CRUSHER, GRINDER, MIXER, DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.

We absolutely can customized machine upon your side, just freely tell me your needs or design request, i will check and give you quote.



CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE

YES ! Our company have build more than 20years now, we also can recommend you other machine supplier which we don't sale , like packing machine, filling machine, etc !!



HOW TO VISIT YOUR COMPANY?

Our company is in WUXI city, near shanghai cisty, only 20mins away from WUXI EAST TRAIN STATION. Or you can call me +86 13921209007 anytime you arrive Wuxi, i will go to pick you.



WHAT'S YOUR BEFORE & AFTER SERVICE ?

1) Professional advice and  rich experience help to choose machine.

2) Longtime maintainance and considerate technical support

3) Technicians can be sent to abroad to install.

5)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).

4) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.

5) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.



WHAT'S YOUR SHIPPING ITEM PROCESS?

We have long-term working shipping forwarder. We can do our best to send machine to your port safe and sound .

If your need , we can help you do custom clearance .

Packaging Details: 1. Outside package: Standard export wooden cases.

                                        2. Inner package: Stretch film.



Delivery Details:    Machine will be finished in about 25 workdays after payment.



HOW ABOUT YOUR PAYMENT TERM?

1. Normally we can work on T/T or L/C.

2. On T/T term, 30% down payment is required in advanced. And 70% balance shall be settled before shipment.

3. On L/C term, a 100% irrevocable L/C without soft clause can be accepted.Please seek the advice from the individual sales manager whom you work with.
