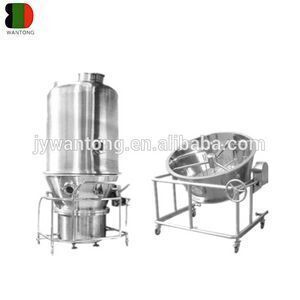

GFG glatt tea salt powder fluid fluidized bed dryer

Supplier: Jiangyin Wantong Pharmaceutical& Chemical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Raisha Wang
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Installation:	Engineer's Guidance;	Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Construction works ;
Certification:	ISO 9001 CE;	Weight:	850KG;
Warranty:	1 Year;	Video outgoing-inspection:	Provided;
Key Selling Points:	Competitive Price;	Warranty of core components:	1 Year;
Packaging Detail:	GFG glatt tea salt powder fluid fluidized bed dryer for stretch film/wooden case;	Capacity:	60-500kg/h;
Heating source:	Electricity/Steam;	Dimension(LWH):	Accroding to model;
Payment Terms:	L/C,T/T,Western Union;	Type:	Fluid Bed Drying Equipment;
Port:	SHANGHAI PORT FOR GFG glatt tea salt powder fluid fluidized bed dryer;	After Warranty Service:	Video technical support,Online support,Spare parts;
Marketing Type:	Available;	Machine name:	GFG glatt tea salt powder fluid fluidized bed dryer;
Machinery Test Report:	Provided;	Application:	GFG glatt tea salt powder fluid fluidized bed dryer,Medicine Processing,Chemicals Processing,Food Processing;
Brand Name:	Wantong;	Usage:	GFG glatt tea salt powder fluid fluidized bed dryer;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training;	Place of Origin:	Jiangsu China;
Weight (KG):	1000;	Showroom Location:	None;
Voltage:	220v or 380v;	Local Service Location:	None;
Supply Ability:	20 Set/Sets per Month;	Material:	SS304/SS316L;
Power:	Accroding to model;	Core Components:	Motor;
Condition:	New;	Package Preview:	;

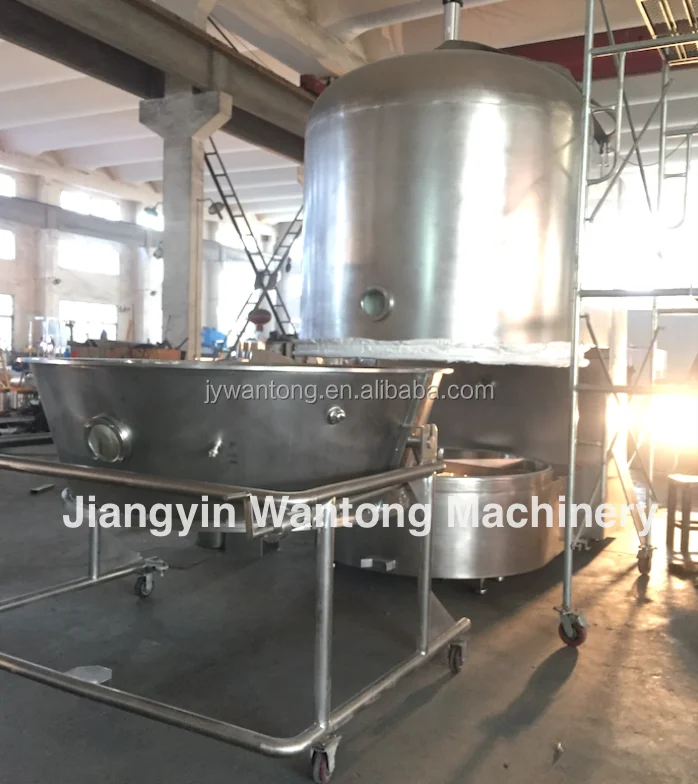

GFG glatt tea salt powder fluid fluidized bed dryer

GFG

Main Application

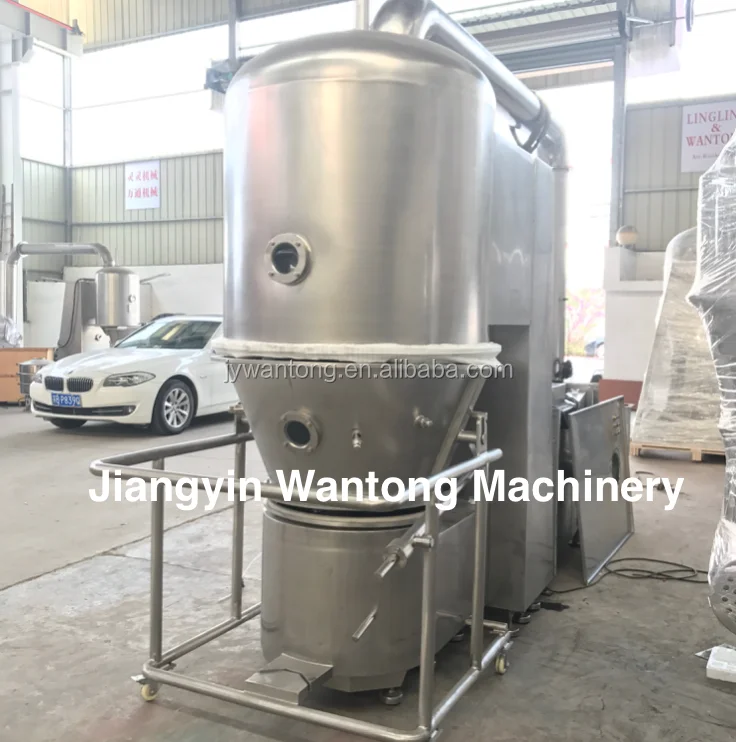

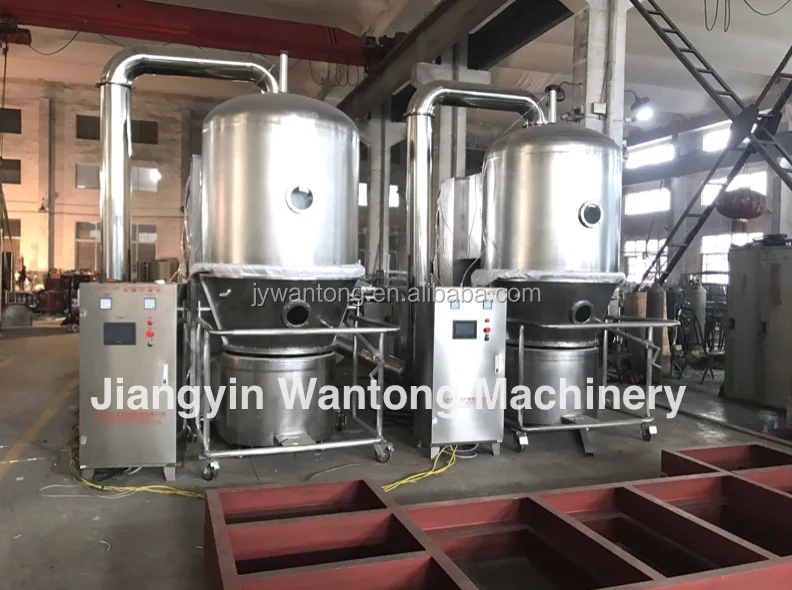

GFG stock stainless steel aeromatic cacao shrimp sugar granule fluid bed drying equipment dryer granulator is the granule high-efficient drying equipment which is matched with YK Type Swing Granulator or GHL Type High-speed Mixing Granulator. It has more fluidized range than traditional horizontal XF fluidized drier and can be easily cleaned. When fluidized, the material is stirred slowly avoiding the block. So it has special advantages for the high wet and sticky material. It's widely used in: a. the granule for troche, capsule and instant medicine; b. big granule and micro-powder in foodstuff, chemical industry, etc; c. wet and sticky granule or powder with different sizes.

Working Principle

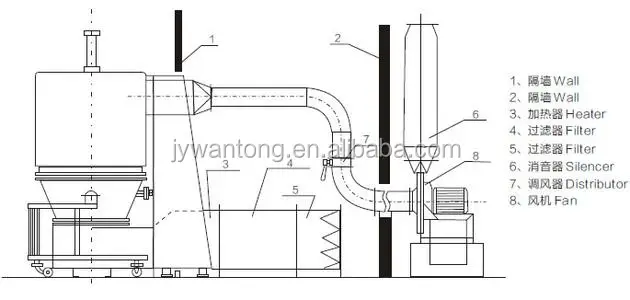

Put the material (granule or powder) into the charging hopper. Meanwhile filter the dust in the air by the filter and heat the material to the demanded temperature by the heater. When the air gets through the Dutch sieve, the material is fluidized and dried. The steam is drawn by the fan through the dedust bags. The superfine powder will be collected by the filter bags and can be shaken back to the container after fluidizing by the upper shaking cylinder.

Characteristics

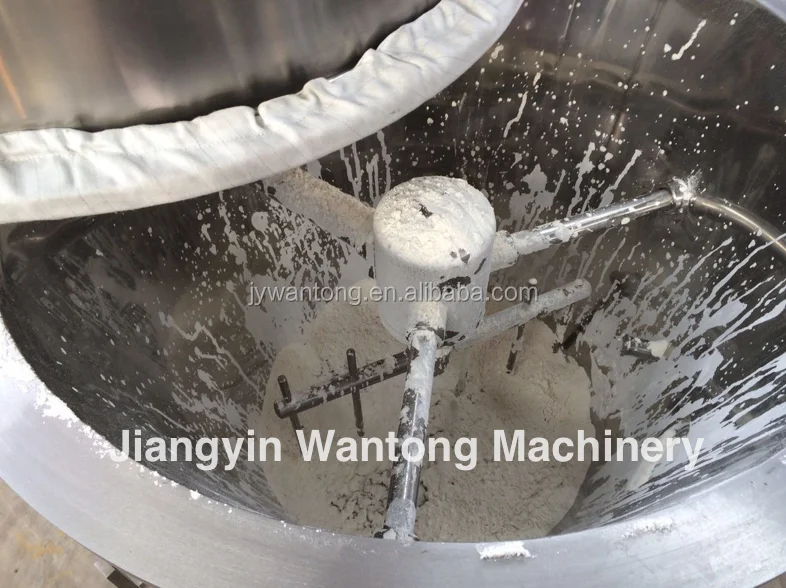

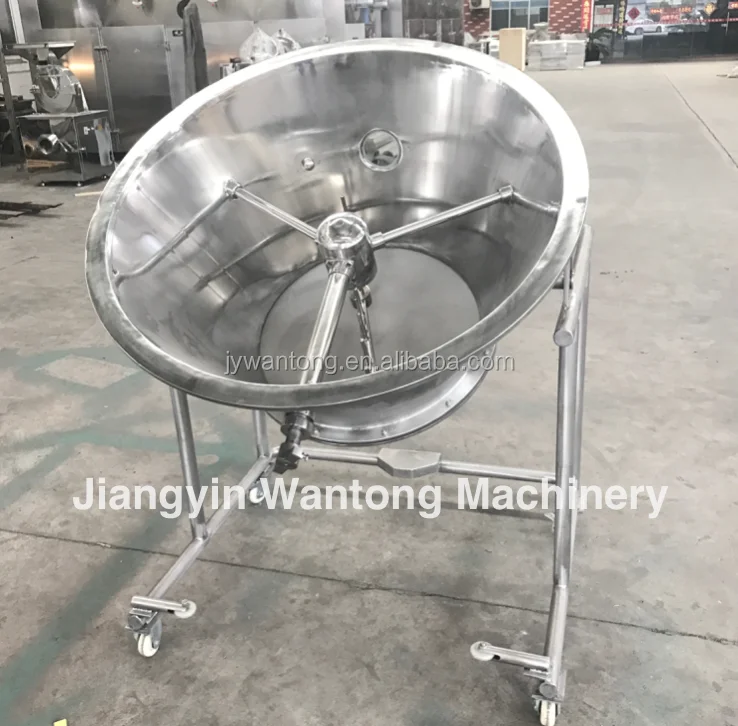

(1) The charging hopper is cylindraceous with no dead angle, even drying and easy cleaning. (2) The filter pocket, adopting the antistatic fiber, has well ventilation and excellent dedust effect. So it is safe and reliable. (3) It is equipped with stirring set in the bed avoiding the block of the material. It features the great fluidized range and quick drying speed.

TECHNOLOGY DATA:

Model			GFG-60	GFG-100	GFG-120		GFG-150		GFG-200		GFG-300		GFG-500
Batch charging(kg)			60	100	120		150		200		300		500
Blower	Air flow(m3/h)		2361	3488	3488		4901		6032		7800		10800
	Air pressure(mm)(H2O)		494	533	533		679		787		950		950
	Power(kw)		7.5	11	11		15		22		30		45
Agitating power(kw)			0.4	0.55	0.55		1.1		1.1		1.1		1.5
Agitating speed(rpm)			11
Steam consumption(kg/h)			141	170	170	240		282		366		451
Operating time(min)			~15-30 (According to the material)
Height(mm)		Square	2750	2850	2850	2900		3100		3300		3650
		Round	2700	2900	2900	2900		3100		3600		3850
