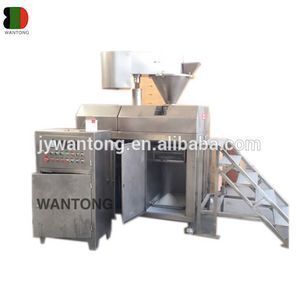

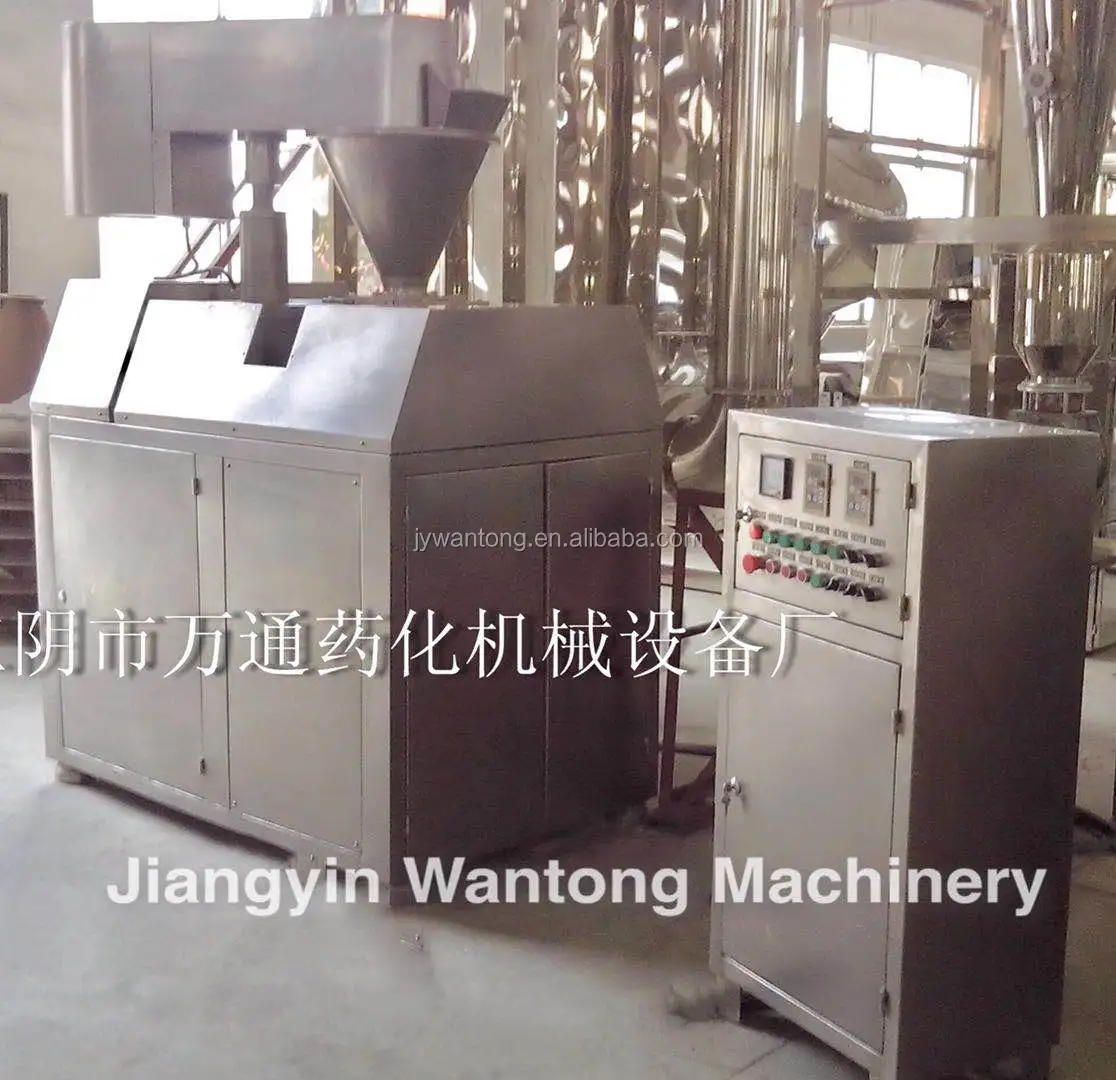

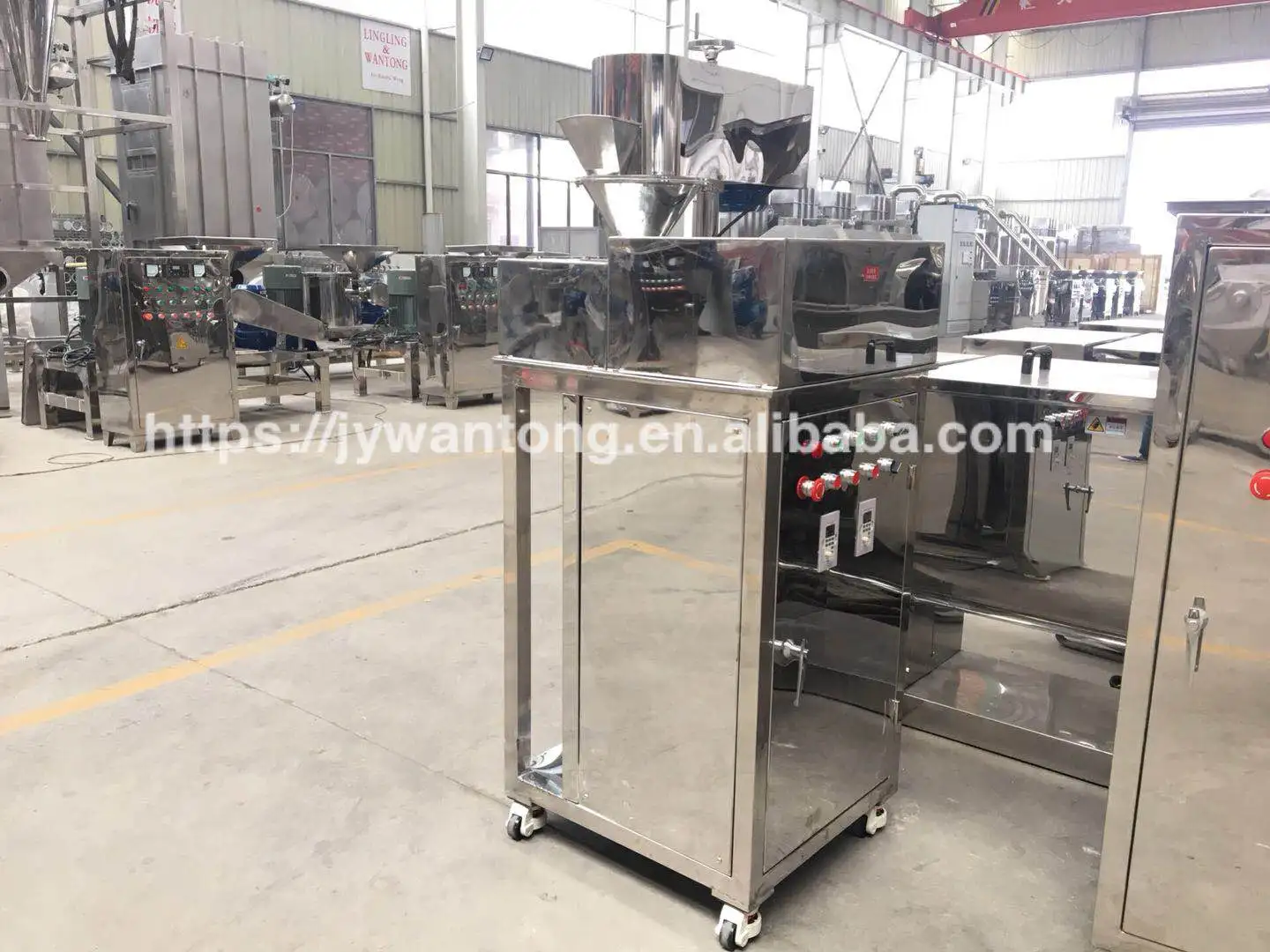

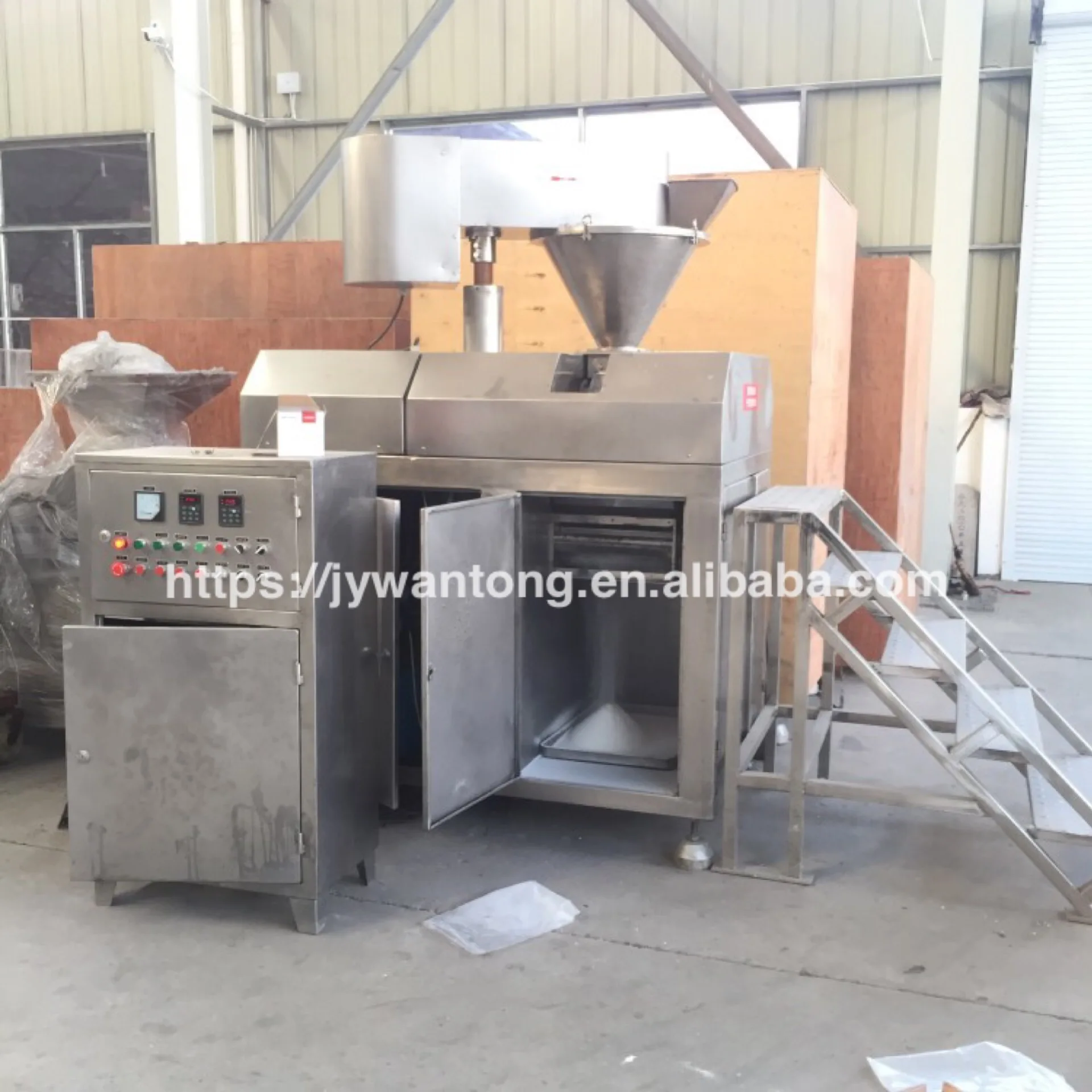

GK extrusion dry powder roll compactor fertilizer tablet roller detergent pharmacy granulator machine

Supplier: Jiangyin Wantong Pharmaceutical& Chemical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Raisha Wang
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	20 Roll/Rolls per Month;	Weight:	upon model;
After-sales Service Provided:	Free spare parts,Video technical support,Online support,Engineers available to service machinery overseas;	Power (kW):	7;
material:	SUS304/316L;	Certification:	ISO 9001 CE;
Port:	shanghai port for GK extrusion dry powder roll compactor fertilizer tablet roller detergent pharmacy granulator machine;	Product Name:	dry powder fertilizer roller detergent pharmacy granulator machine;
Local Service Location:	none;	Place of Origin:	Jiangsu China;
Machine Type:	granulator;	Usage:	roller press dry powder into granules making machine granulator;
Output (kg/h):	60;	Package Preview:	;
Brand Name:	wantong;	Power(W):	upon model;
Packaging Detail:	wood case For GK extrusion dry powder roll compactor fertilizer tablet roller detergent pharmacy granulator machine;	Product Type:	granule;
Dimension(LWH):	upon model;	Voltage:	220v or 380v;
Payment Terms:	L/C,T/T;	Function:	dry powder fertilizer roller detergent pharmacy granulator machine;
Keywords:	dry powder fertilizer roller detergent pharmacy granulator machine;	Application:	dry powder fertilizer roller detergent pharmacy granulator machine;
Weight (KG):	1000;	After Warranty Service:	Video technical support,Online support,Spare parts;
Condition:	New;	Key Selling Points:	Competitive price;
Showroom Location:	none;	Capacity:	2~200kg;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,restaurant,Construction works ;	Warranty:	1 YEAR;

GK extrusion dry powder roll compactor fertilizer tablet roller detergent pharmacy granulator machine

GK DRY/WET GRANULE MAKING MACHINE USED IN:

GK dry/wet granulator is mainly used by the trades of pharmaceutical, chemical, foodstuff, etc, especially suitable for the granulating of those materials that cannot be done by the wet granulating method.

1. Pharmacy: Troches, capsules
2. Foodstuff: Foodstuff granules, seasoning granules
3. Plastic: All kinds of shaped plastic granules
4. Chemical: Granules of activator, pigments and washing agent

ADVANTAGES:
1. Even density of dry granules, good disaggregation and high granule ratio
2. Unique feeding structure guarantees efficient material feeding.
3. Circulated cooling water refuses sticky problems.
4. No need of wetting agent or second-time drying, less procedures, high efficiency and low cost
5. Advanced electric hydraulic pressure, easy to operate with high automation
6. No pollution due to closed operation, so as to meet the sanitation standard.
7. Especially suitable for the granulating of those material which cannot be done by wet granulating method

MODE	GK-25	GK-80	GK-200
Capacity(kg/h)	2-10	20-60	50-200

Roll size(mm)	200×25	200×80	250×200
Max roll pressure(T)	5×2	10×2	25×2
Roll speed(r/min )	2-20(adjustable)	2-20(adjustable)	2-20(adjustable)
feeding speed(r/min)	6-60(adjustable)	6-60(adjustable)	6-60(adjustable)
roll drive power(kw)	2	4	15
feeding drive power(kw)	0.75	1.1	3
granulating drive power(kw)	0.75	1.1	3
oil pump drive power(kw)	0.5	0.75	2.2
max hydraulic pressure(M Pa)	10	20	50
roll & feeding speed control	Electromagnetic speed control or frequency changing speed control
Weight(kg)	500	1000	300
