Lab High Temperature 1200C-1800C Hydrogen H2 Atmosphere Sintering Box Muffle Inert Gas Furnace With Optional Sizes

Product details
Thermocouple type:K;Voltage:AC 220 single phase; 50/60 Hz;
Brand Name:TMAX;Place of Origin:China;
Temperature controller precision:+/- 1°C;Payment Terms:L/C,D/A,D/P,T/T,Western Union;
Port:Xiamen Port;Model Number:TMAX-12QHydrogen;
Packaging Detail:1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;Classification:Laboratory Heating Equipments;
Supply Ability:10000 Set/Sets per Month;Name:H2 Atmosphere Furnace;
Product Description

Lab High Temperature 1200C-1800C Hydrogen H2 Atmosphere Sintering Box Muffle Inert Gas Furnace With Optional Sizes



Features

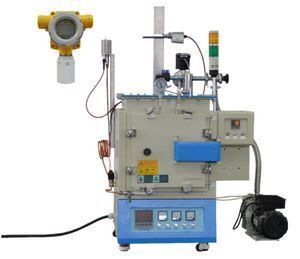

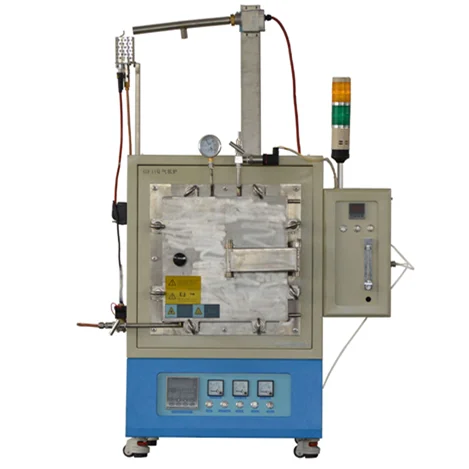

This stainless steel inner hydrogen atmosphere furnace is equipped with a stainless steel inner tank in the furnace. The furnace door is sealed with a silicone O-ring. In order to reduce the O-ring sealing temperature, a water cooling system is installed at the door of the furnace. Thermocouples, intake valves, air outlet valves, pressure gauges, etc. are installed on the inner casing. The furnace is equipped with a hydrogen detector, a burner, a combustion controller, an alarm lamp, an igniter, an explosion-proof valve, and the like. After the gas passes through the flowmeter, it enters and exits from the rear, and the exhaust gas is cooled by the water cooling system and discharged from the furnace door. It can pass gas such as hydrogen, argon, nitrogen, oxygen, carbon monoxide or ammonia. The furnace has the advantages of equal temperature field, low surface temperature, fast temperature rise and fall, energy saving, clean furnace and no pollution. It is an ideal product for universities, research institutes, industrial and mining enterprises to do atmosphere protection and sintering, atmosphere reduction and degreasing.



Detailed Technical Parameters

Model

1200C-I

1200C-II

1200C-III

Power

4KW

9KW

16KW

Chamber size(mm)

300X200X200

400X300X300

500X400X400

Dimension(mm)

520X610X765

700X 700X880

810X850X1060

Supply voltage

220V

380V

Phase

single phase

three phase

Heating element

Resistance wire  Sweden Kanthal A1 (resistance wire can promise 2 years warranty)

Control mode

UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2, with over-temperature protection, the electric furnace heating circuit is automatically cut off when the break-up protection is over-temperature or broken, (when the electric furnace temperature exceeds 1200 degrees or the thermocouple is blown,

The AC relay on the main circuit will be automatically disconnected, the main circuit will be disconnected, the ON light on the panel will be off, the OFF light will be on, and the electric furnace will be limited.

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning



Chamber  material

 1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Formed by Japanese technology.

3. The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by the thermal software.

Control precision

 +/- 1 ℃

Trigger

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16E SEMIKRON

Maximum temperature

 1200 ℃

Rated temperature

 1100 ℃

Heating rate

 ≤20 ℃/ Min (it can be modified as required)

Recommended rate of temperature rise

≤15 ℃/ Min

Thermocouple model

K Type

Certification

CE

Peripheral surface temperature

   ≤45℃

Open cover protection system

The furnace is equipped with a travel switch, which automatically cuts off the main power when the cover is opened, effectively ensuring the safety of the user.































































































































Standard  packing

Item

   Qua

·                                                                          Atmosphere furnace

 1

K type thermocouple

 1

Alumina thermal cushion block

 1

Furnace door block

 1

Stainless steel clamp

 1

Thermal gloves

 1

Alumina crucible

 1

485 computer interface port (optional)

 1

Immersible pump

 1







Our Company & Team

Certifications

Cooperative Partner



Packaging & Shipping

PACKAGE:

     1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

     2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

     3 Responsible for the damage during the shipping process, will change the damage part for you for free.



DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
