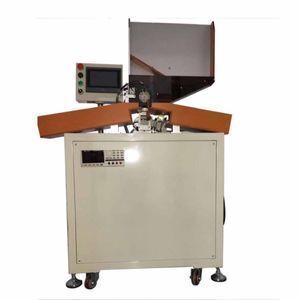

5 Channels Automatic Battery Voltage and Resistance Sorter Sorting Machine For 18650 and 26650 Battery

Supplier: Xiamen Tmax Battery Equipments Limited
Region: Fujian, China
Contact: Mr Aaron Huang
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Test parameter:	AC internal resistance, DC voltage;	Applicable Industries:	Battery Equipment;
Internal Resistance Tester:	HIOKI3561 or HK3561;	Supply Ability:	10000 Set/Sets per Month;
Channel:	5-22 is optional;	Packaging Detail:	1 Standard exported package: Internal anticollision protection, external export wooden box packaging. 2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way. 3 Responsible for the damage during the shipping process, will change the damage part for you for free.;
Certification:	CE;	Dimension(LWH):	11208801250mm;
Place of Origin:	China;	Port:	Xiamen Port;
Color:	Request;	Condition:	New;
Warranty:	2;	After-sales Service Provided:	Engineers available to service machinery overseas;
Product Dimensions:	11208801250mm;	Structure:	Heavy Duty Steel Platform;
Brand Name:	Tmax;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Voltage:	220V;

Product Description

5 Channels Automatic Battery Voltage and Resistance Sorter Sorting Machine For 18650 and 26650 Battery

Introduction

The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.

On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.

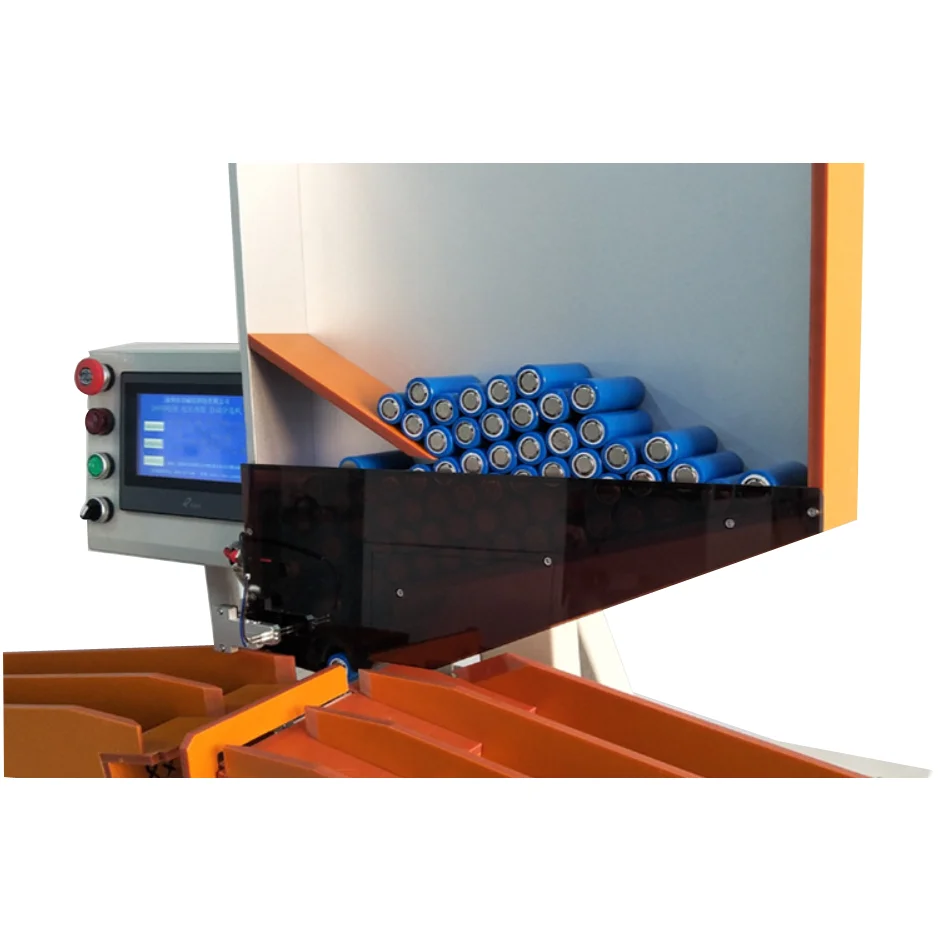

The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.

Working Principle of Equipment

The device measures the voltage resistance of the battery through a voltage internal resistance tester.

The voltage internal resistance parameters of four gears are set by man-machine interface. The voltage internal resistance of the core is tested by PLC and judged by the parameters. The battery grade is obtained. The sorting cylinder is controlled by PLC to send the battery to the corresponding receiving gears.

Features

1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 cells

3. Sort by cell's voltage and impedance up to 5 groups

4. Automatic sorting control

5. Fast sorting speed (80PPM)

6. Easy to refill cells during the process

7. Wheels design, easy to move the machine to any operating place

Specifications

Voltage Supply	220V±10%/50Hz±10%
Power	<800W
Display Screen	Large size LCD screen/Touch screen
Battery Types	Cylindrical Cell (18650,18500,26650,14500,21700)
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.5% rdg Resolution: 0.01mV
Sorting Speed	80PPM
Weight	<200KG

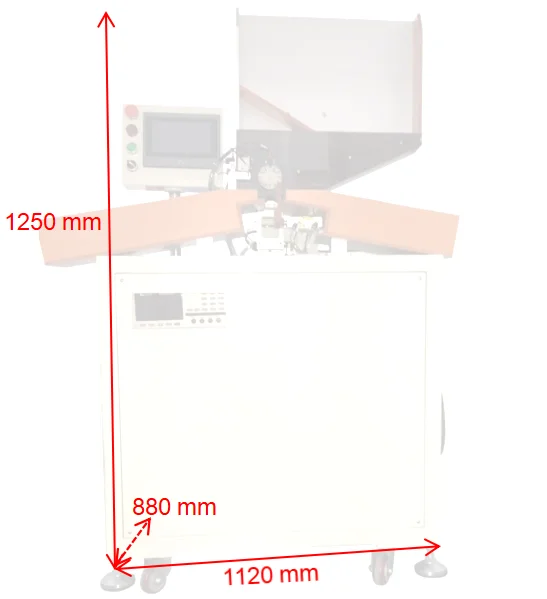

Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000pcs/h
